Accessories

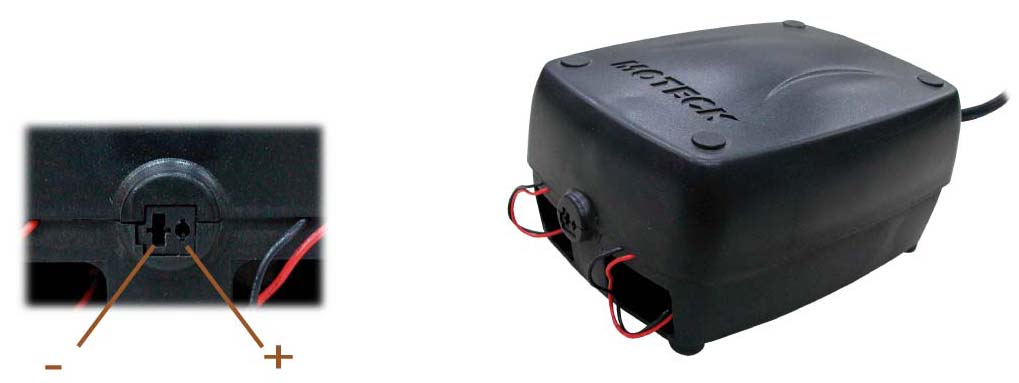

01RAW transformer
01RAW transformer Model No. Designations:
RAW - 230.


Input voltage
230 V AC
120 V AC
100 V AC
24.


Output voltage
24 V DC
12 V DC


Specification:
A separate E1 Square Transformer Box which can be placed on the floor

Input: 100 / 120 / 230V AC, 50 / 60Hz
Output: 24 / 12 V DC
Max. Amp. 3 / 6 A
Duty Cycle: 10%
Emergency Lowering Function by 2 x 9 V
DC Batteries
Black Color

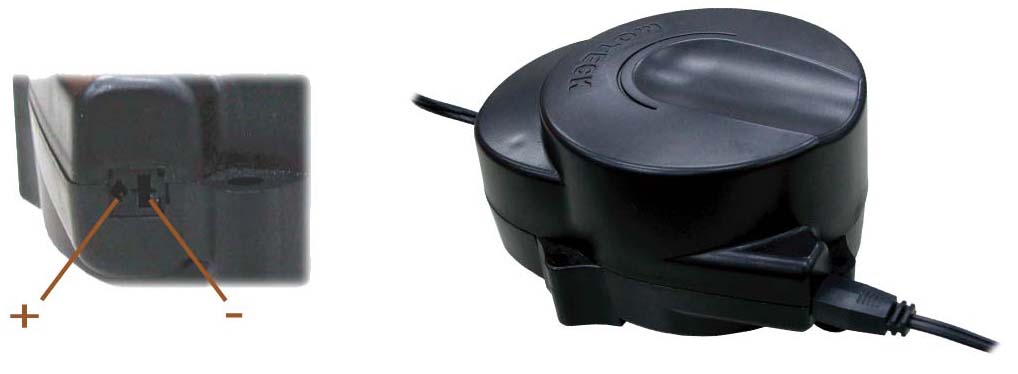

01RAR transformer
01RAR transformer Model No. Designations:
RAR - 230.


Input voltage
230 V AC
120 V AC
100 V AC
24.


Output voltage
24 V DC
12 V DC


Specification:
A separate Toroidal Transformer Box which can be wall mounted or placed on the floor

Input: 100 / 120 / 230V AC, 50 / 60Hz
Output: 24 / 12 V DC
Max. Amp. 6 / 12 A
Duty Cycle: 10%
Black / Gray Color

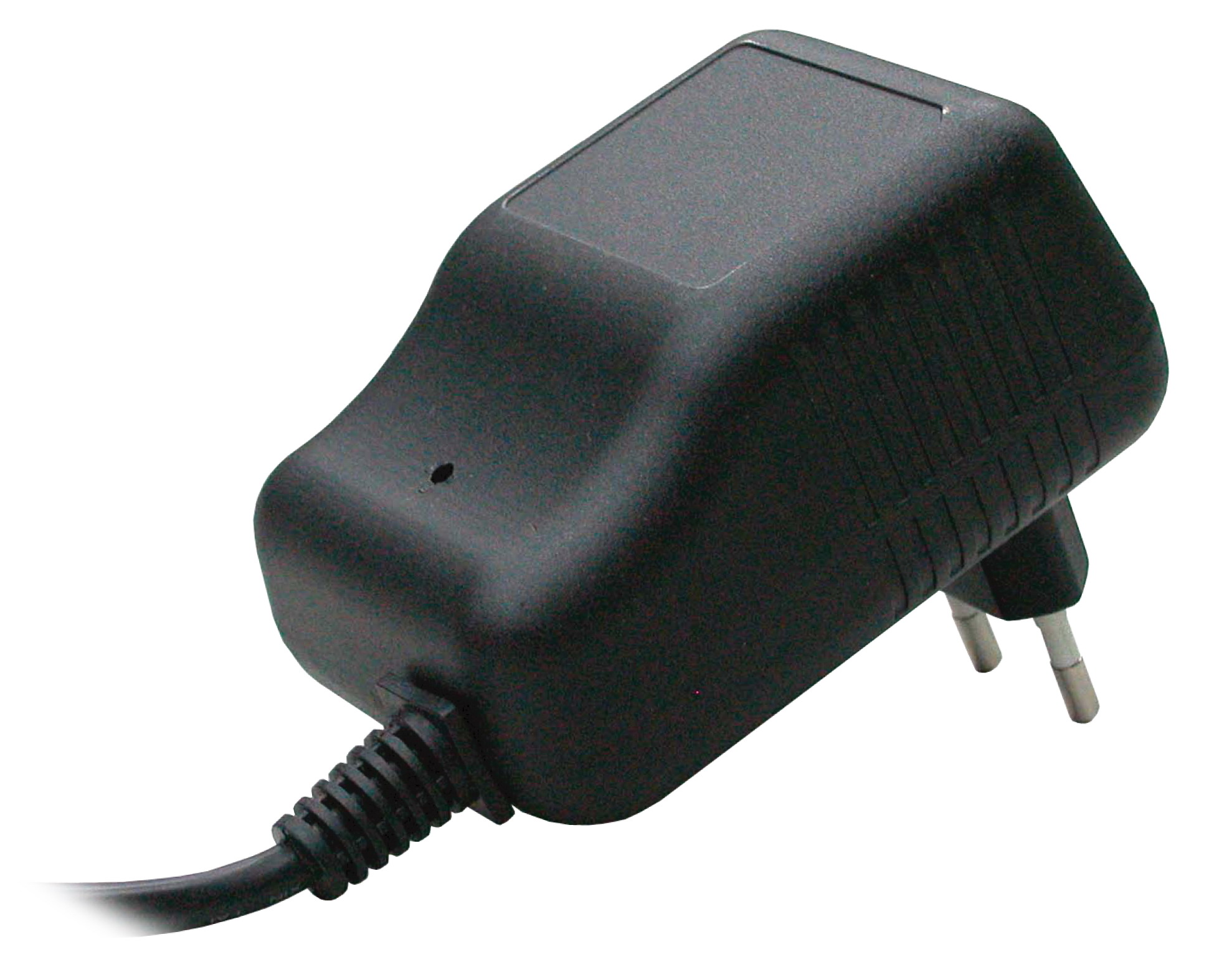

Safety Plug
Safety Plug Specification:

A Mains Cut-off Plug that is an option for some Moteck control boxes
It will automatically cut off the AC current from mains to the control box as the control stopping action i. e. when the handset is not being activated

Black / Gray Color

Option:
US / UK / European Plugs

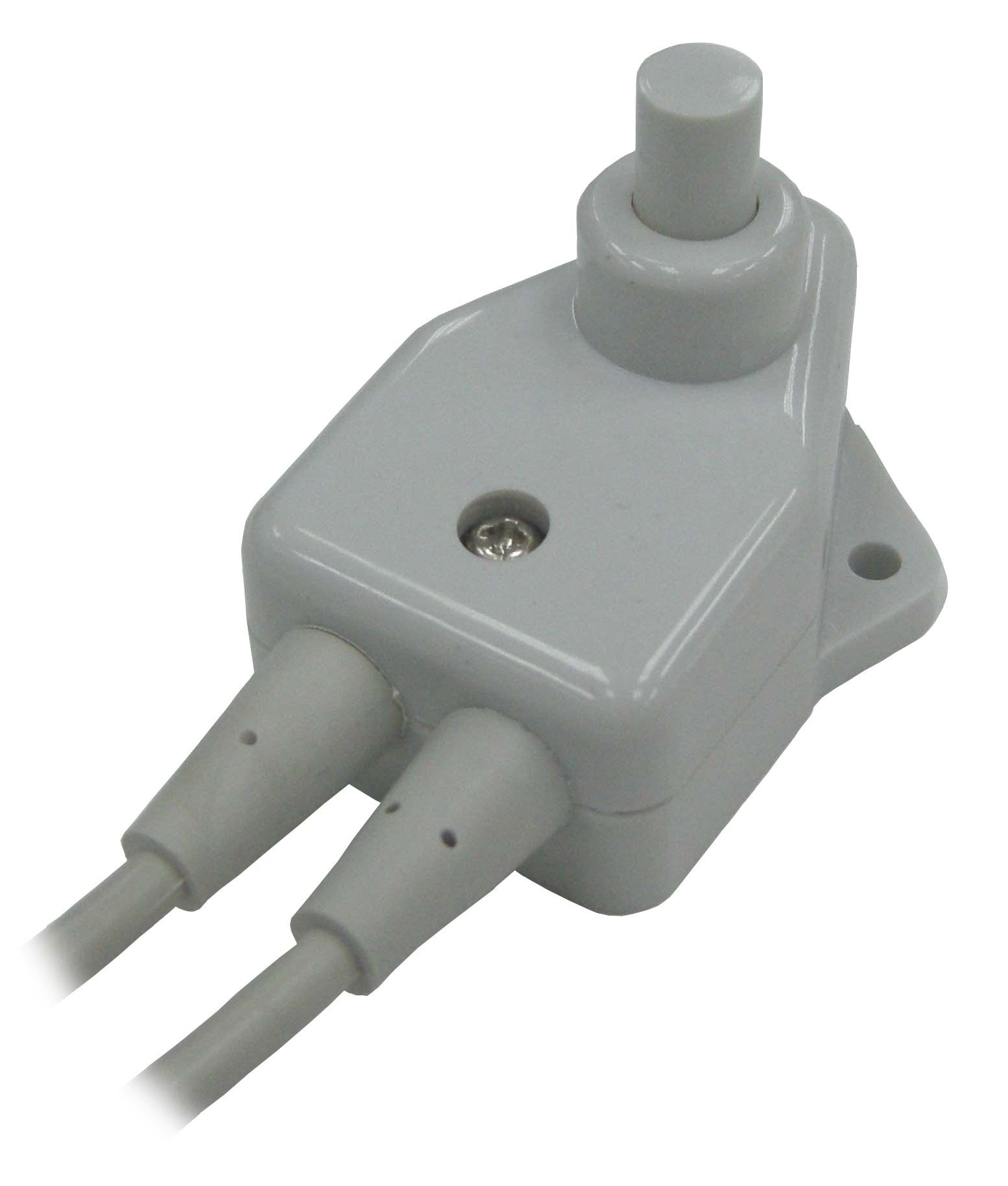

External Switch
External Switch Specification:

It can be installed to limit the actuator movement to avoid mechanical collision

Gray Color
IP65

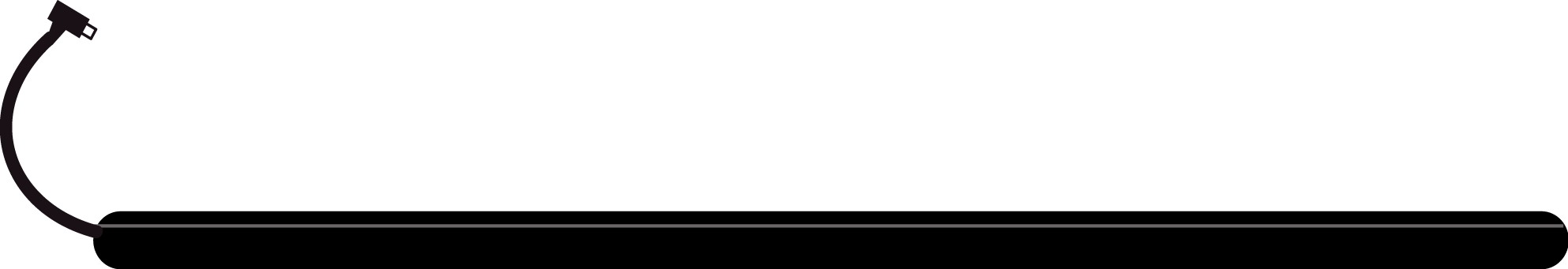

Safety Stripe
Safety Stripe Specification:

It can be attached to the equipment’s frame to limit the actuator movement for safety

Black Color

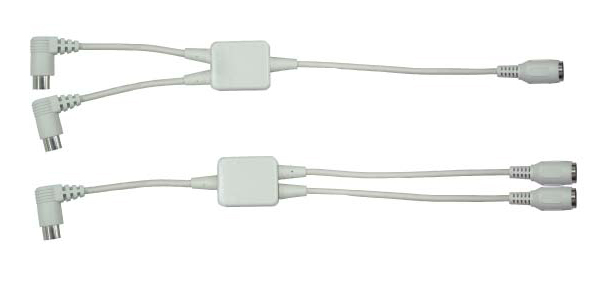

C Cable
C Cable Specification:

Compatible with 2 handsets input independently
The other end connects to the control box

Gray / Black Color

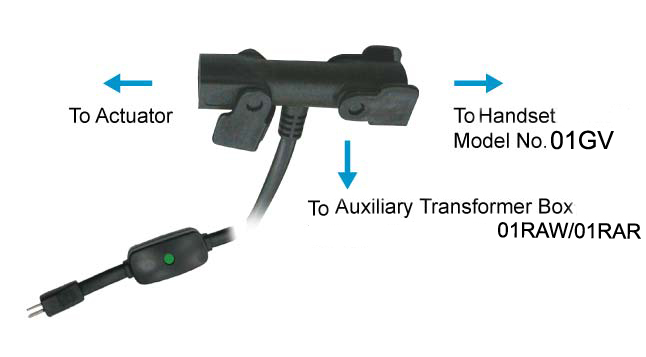

R connector
R connector

R connector

R connector
Works with 01GV Handset and 01RAW/01RAR Transformer directly.
(No Control Box needed.)







Specification:

A T-shape connector that is to drive the Actuator by DC electric current directly (No Control Box needed)
Connecting from 01RAR Toroidal Transformer Box / 01RAW Square Transformer Box to 01GV Handset and Actuator

Black Color





Option
Current LED indicator

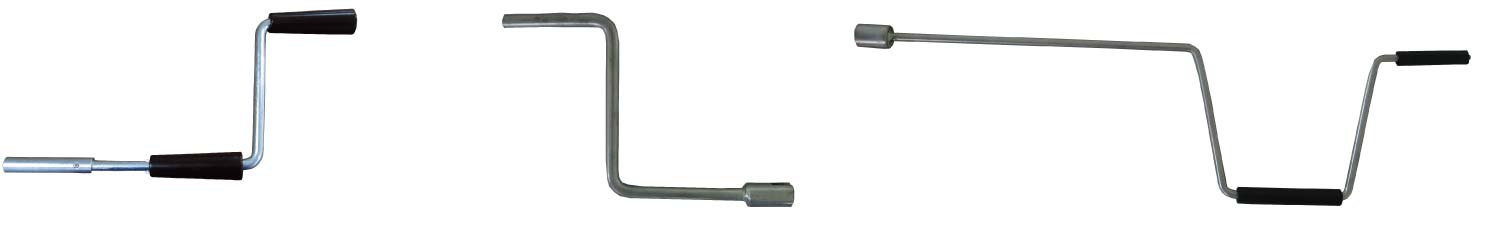

Hand Crank
HandC Specification:

Several types are available
Requested design by you is possible

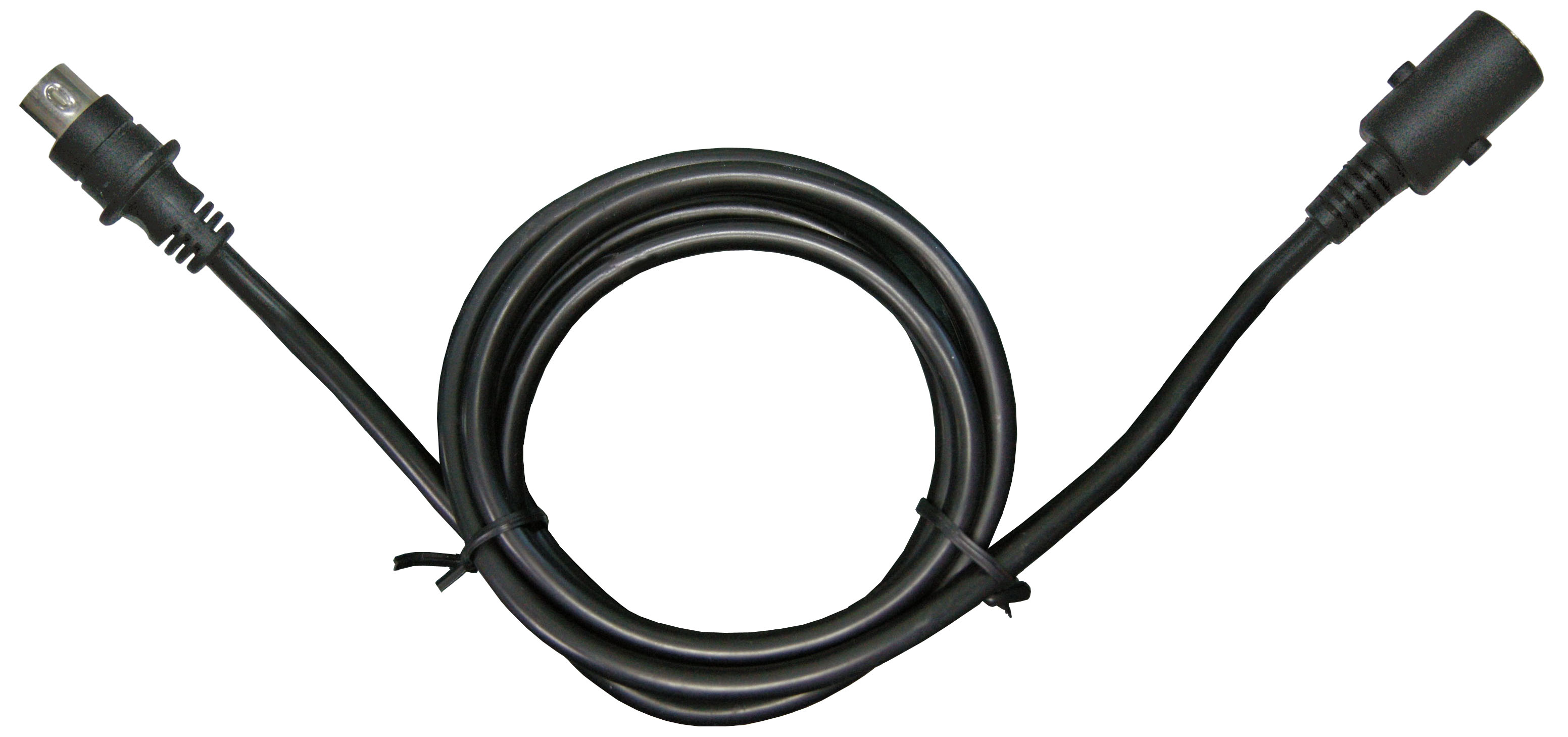

Extension Cable
Extension Cable Specification:

Moteck also offers a range of extension cables with plug /socket for application

Black Color

Option: Anti-pull device
