Medical Actuator
01NS81



Actuator 01NS81

Технические характеристики:
Model 01NS81
Input 24V DC
Max. Load 8000N(Push) / 8000N (pull)
Max. Speed 6.7mm/sec
Stroke 100~400mm(Customized Stroke Available)
Duty Cycle 10%


Preset Limit Switches
IP54



Option:
  • Hall Effect Sensor
  • Push Only
  • Optional or Customized Front/Rear Mounting Bracket
  • Spiral Cable
  • IP65/IP66


Model No. Designations
01NS81- 24-

Voltage
24: 24 V DC
A6

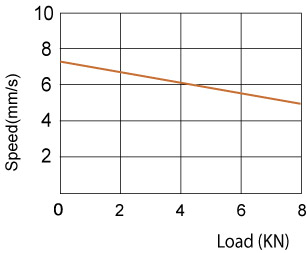

Speed V.S Load
ACME Nut
6mm Pitch
350.880

A . B
A: Retracted Length
B: Extended Length

Stroke = B - A

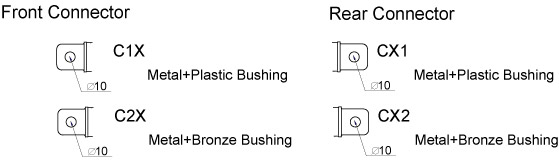

C11

1: Front connector
1: Rear connector
HS.PO..

Option
HS: Hall Sensor x 1
PO: Push Only
IP65/IP66

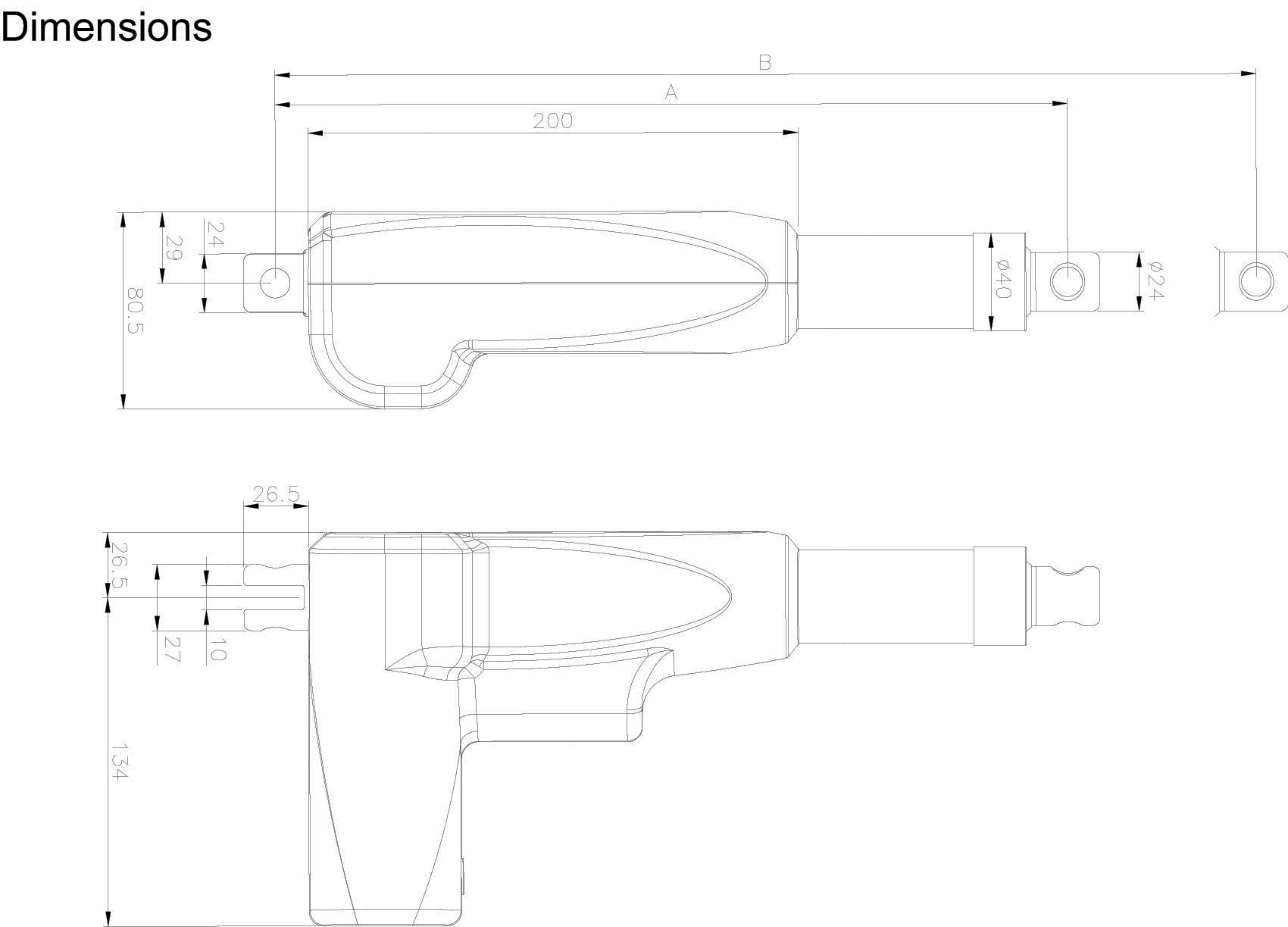

Actuator 01NS81 draw

Actuator 01NS81 draw

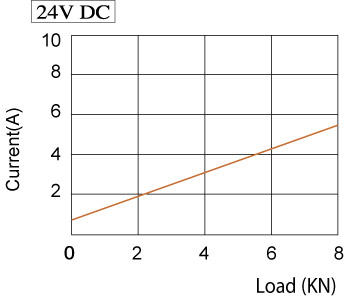

Speed vs Load Current vs Load

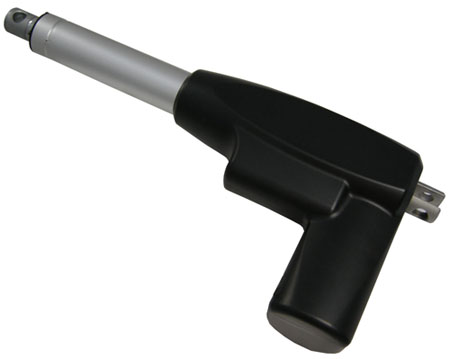

Actuator 01NS81 Actuator 01NS81
