Satellite positioner
01NO880




Smart and full function remote positioner

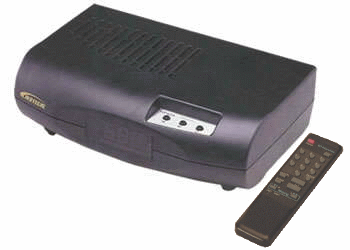

Satellite positioner 01NO880

Specification:
Model 01NO880
Input 220~240V AC / 50 Hz (110V AC / 60 Hz Available)
Power Consumption(Max.) 80W / 100W
Compatible Motors 24V~36V DC
Max.Current 3.5A / 4.2A
Dimension(mm) 160L x 230W x 71H
Manual Control Buttons Power ON / OFF, EAST / WEST
Position Memories 99
Remote Control IR
LED Display 3 Digits
Resynchronization YES
Software Limit YES
Short Circuit Protection YES
Overload Protection Electronic


99 Programmable Memories
Manual Control
IR Remote Control
3 Digit LED Display
Software Limit Protection
Drive Dish up to 3M (Optional: 5M)
