Furniture Actuator
01VSD60

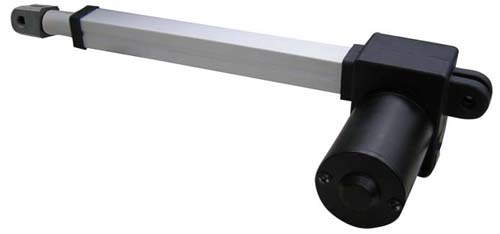

Actuator 01VSD60

Specification:
Model 01VSD60
Input 12/24 V DC
Max. Load 6000N(push) / 4000N(pull)
Standard Speed 4.2 mm/sec (no load) / 2.6 mm/sec (full load)
Stroke Stroke: 50~300mm (Customized Stroke Available)
Duty Cycle 10% or 2 min continuous operation in 20 min


Adjustable Limit Switches
Aluminum Outer Tubes
IP43



Option:
  • Motor Voltage: 12V DC
  • Hall Effect Sensor
  • Push Only
  • Safety Nut
  • Optional or Customized Front/Rear Mounting Bracket
  • Spiral Cable


Model No. Designations
01VSD60- 24-

Voltage
12: 12 V DC
24: 24 V DC
A4

Speed vs. Load
A4
A8

HG
226.276-

A . B
Stroke=B-A
A4:400mm Max.
A8:800mm Max

HG:1600mm Max
C 1 1

1: Front connector
1: Rear connector
HS

Option
HS: Hall Effect Sensor x 1
HS2: Hall Effect Sensor x 2



Stroke 50 100 150 200 250 300
Retracted Length 226 276 336 386 446 486
Extended Length 276 376 486 586 696 796 (μμ)

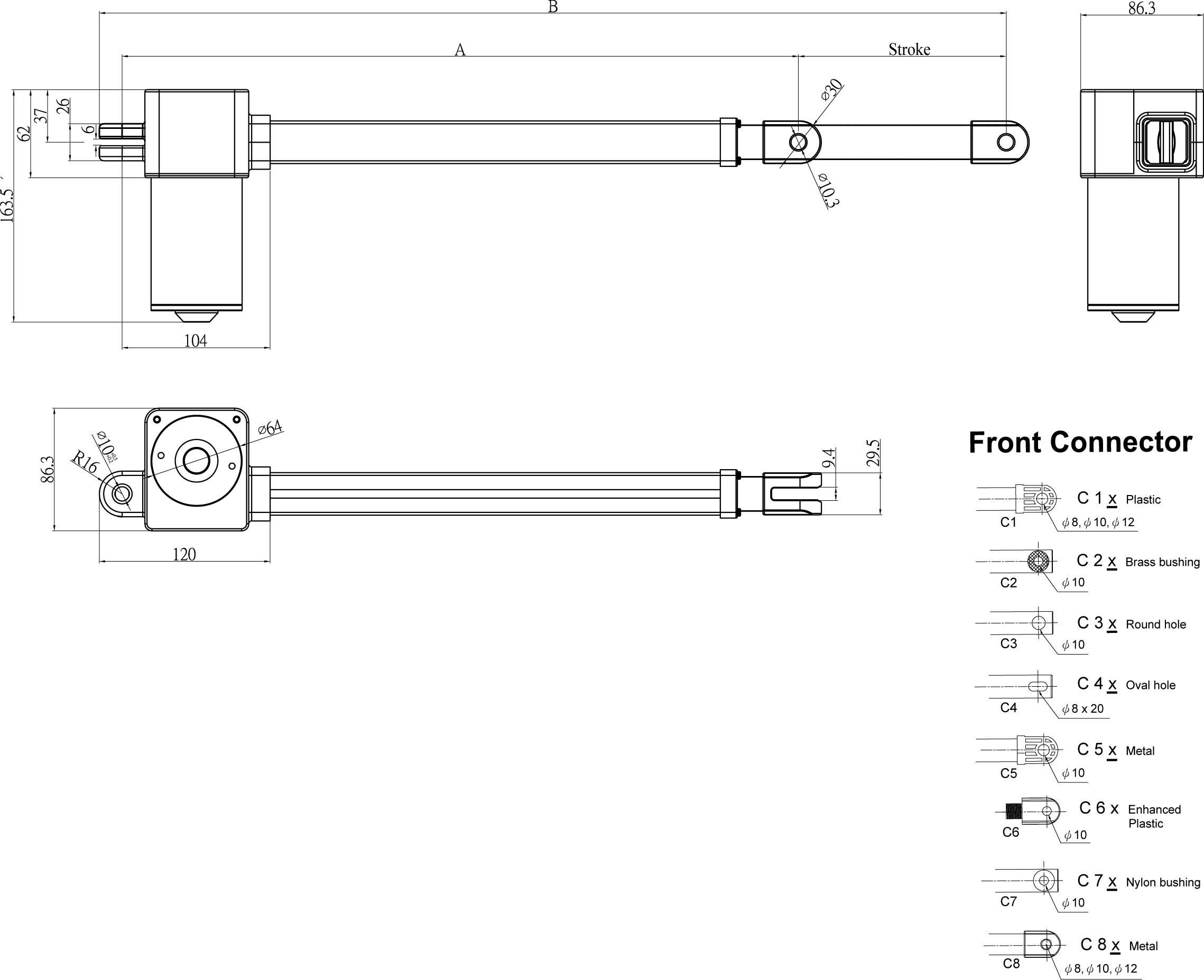

Actuator 01VSD60 draw

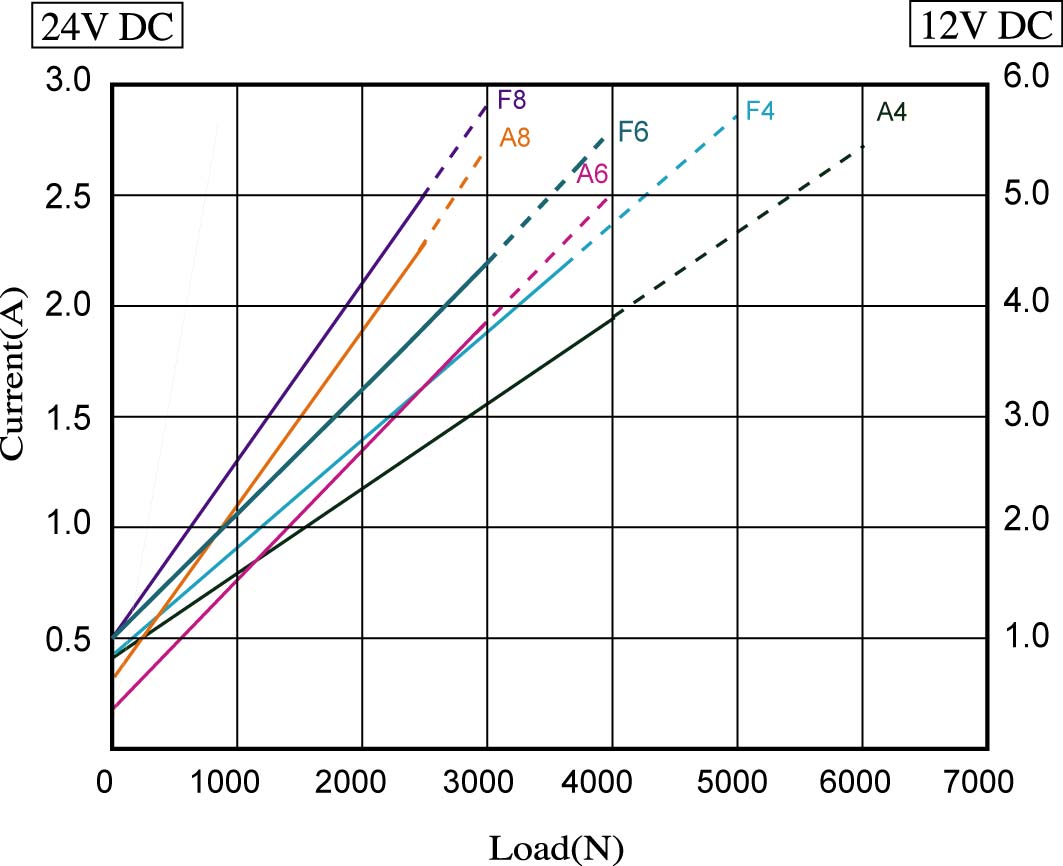

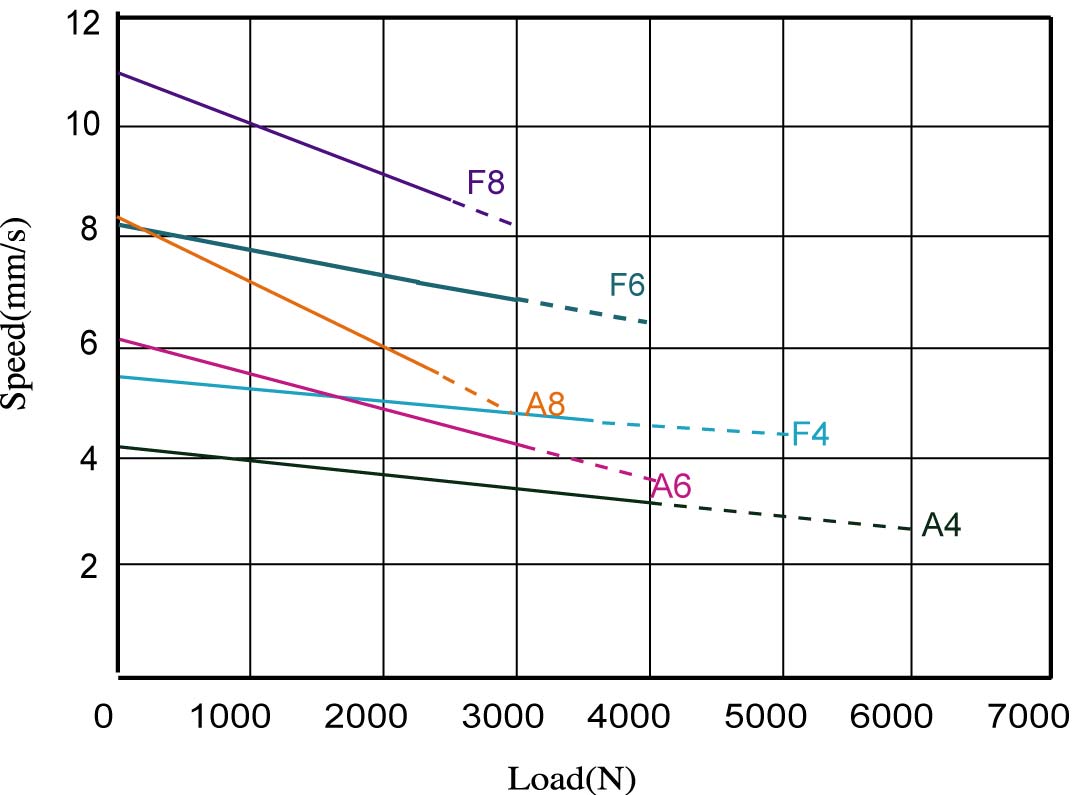

Speed vs Load Current vs Load
Actuator 01VSD60 Actuator 001VSD60
