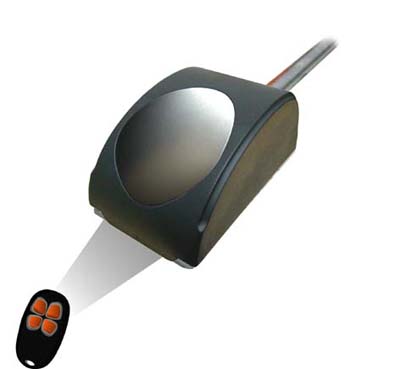

Garage Door Opener 01EIVIVIX 50
Chain Drive Garage Door Opener




Chain Drive Garage Door Opener 01EIVIVIX 50

Specification:
Model 01EIVIVIX 50
Input 230V AC/50Hz;
110V AC/60Hz
Motor 24V DC
Garage Door 2.5M x 2.2M Max.
500N(110Lbs) Max. Operation Speed
Скорость работы 12.5mm / sec (without load)
11mm/sec (with 11kg load)
Drive Chain
Overload Protection Current Detection
Approx. Dimension 635 x 400 x 245mm

Adjustable Output Power Limit
RF Remote Control with Rolling Codes
Quick Release Function
Light Function (Optional)

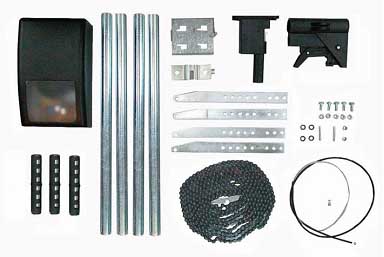

Opener Kits:
Chain Drive Garage Door Opener 01EIVIVIX 50

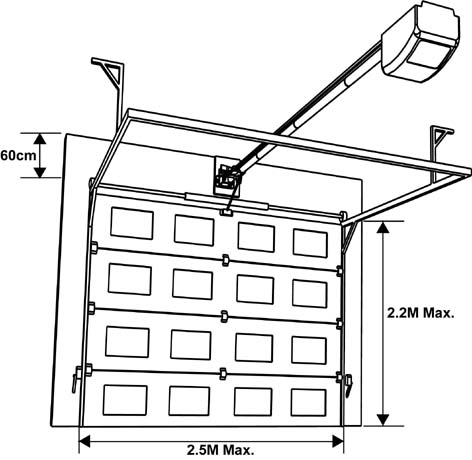

Installation Diagram:
Chain Drive Garage Door Opener 01EIVIVIX 50


Chain Drive Garage Door Opener 01EIVIVIX 50
