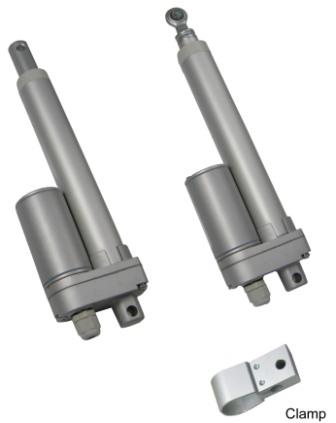

Industrial Actuator 01KS2




01KS2

Specification:
Model 01KS2
Input 12 / 24VDC
Max. Load 1000N
Max. Speed 10 mm/sec
Stroke Length 50, 100, 150, 200, 250, 300 mm
Gear Ratio 30:1
Mounting Clevis to Clevis Mounting
Duty Cycle 25%
Environment -25 ° C ~ 65 ° C


FEATURE:
Max. Load: 1000N
Motor Voltage: 12/24V DC
Max. Speed: 10mm/sec
Stroke: 50/100/150/200/250/300mm
Universal Rod End
Duty Cycle: 25%
IP43


Option:
  • Hall Effect Sensor
  • Clamp
  • IP54


Model No. Designations
01KS2- 12-
Voltage
24-24 VDC
12-12 VDC
30-
Gear Ratio
30-30:1
200-
Stroke (mm)
50 mm
100 mm
150 mm
200 mm
250 mm
300 mm
HS.IP54
HS: Hall Sensor
IP54
C2x,C3x: Front Connector


Standart:
Stroke (+-2,5mm) 50 100 150 200 250 300
A (mm) 159 209 260 311 362 413
Standart (C1x или C2x) B (mm) 209 309 410 511 612 713

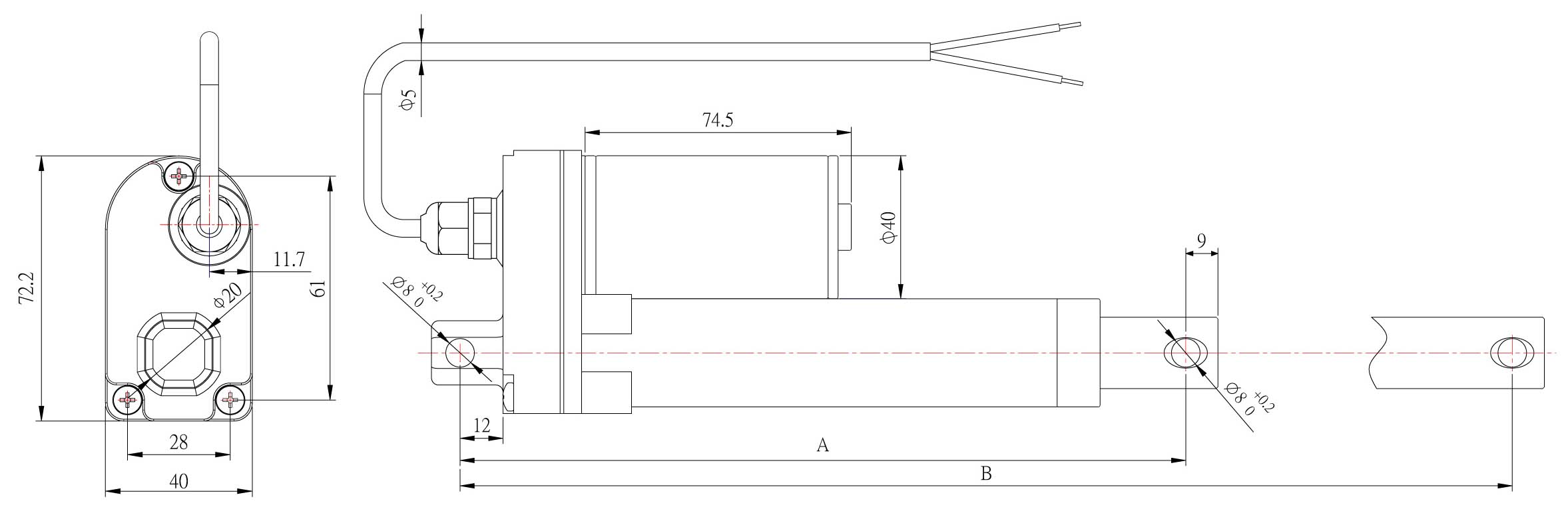

Actuator KS2 Standart

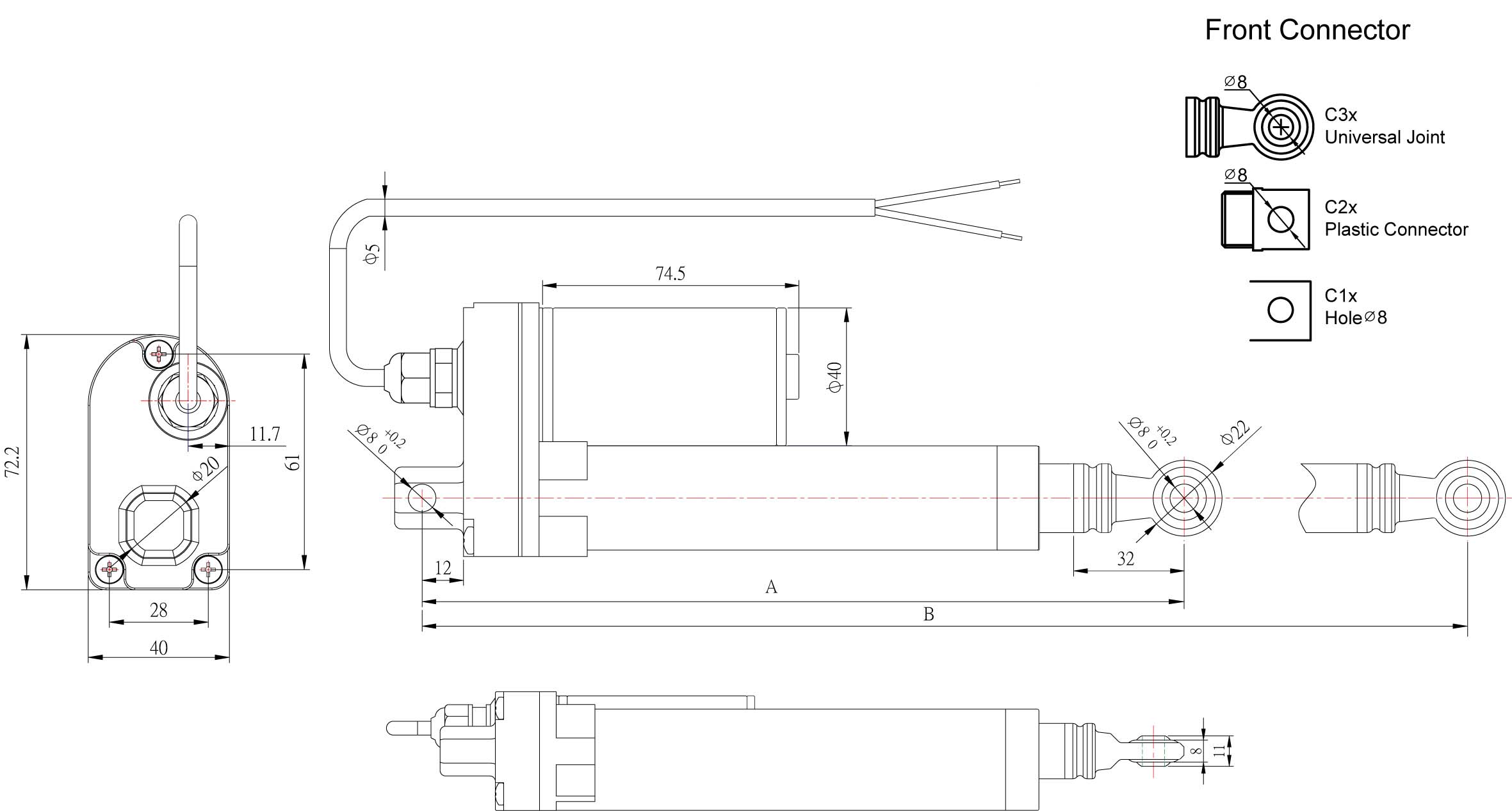

Universal Rod End (C3x)
Stroke (+-2,5mm) 50 100 150 200 250 300
A (mm) 188 238 288 338 388 438
Universal Rod End B (mm) 238 338 438 538 638 738


Actuator KS2 Potentiometer

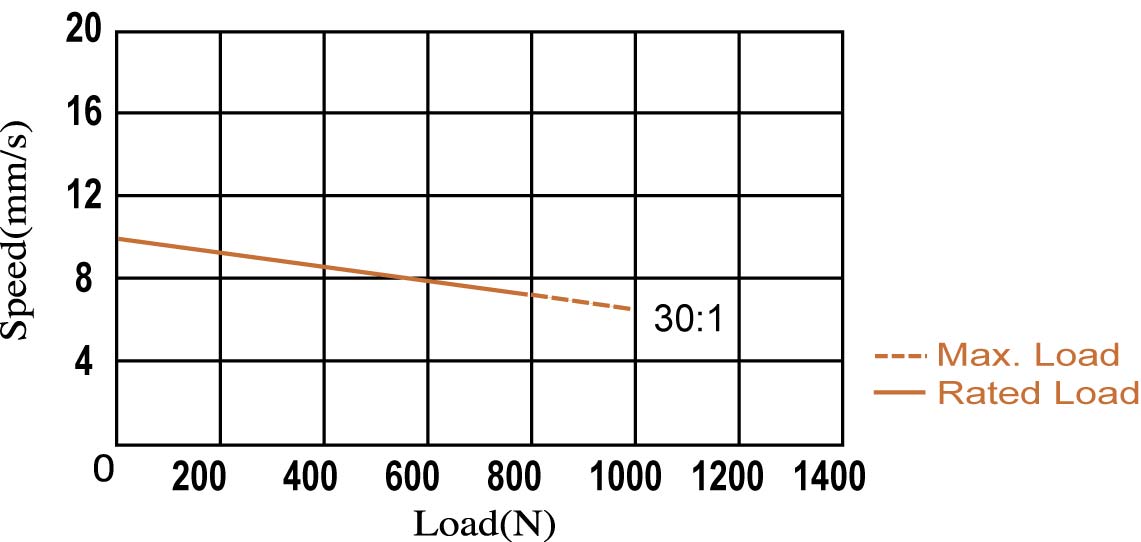

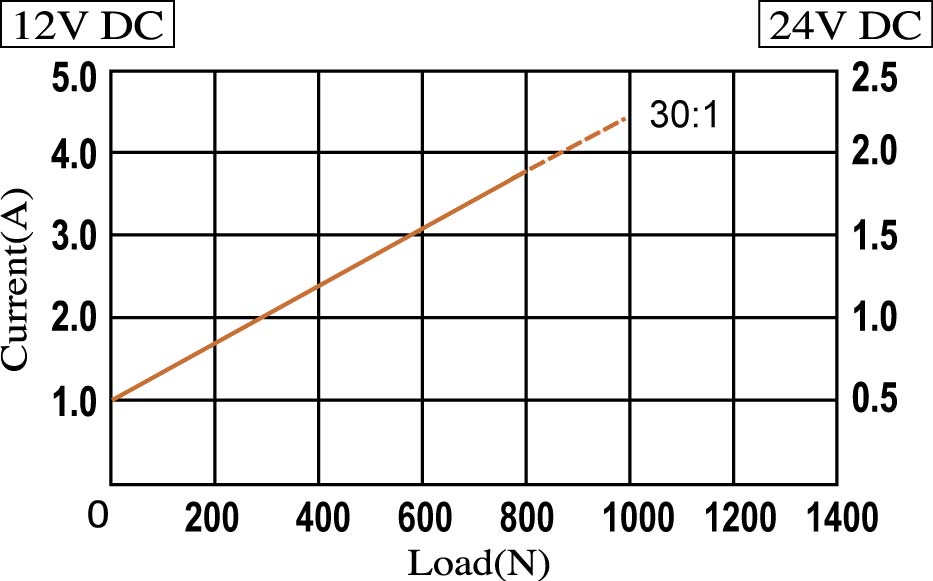

Speed vs Load Current vs Load
01KS2 01KS2
