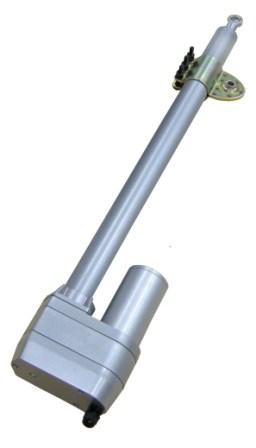

Heavy Duty Actuator for Solar Tracking 01US10S




01US10S


Specification:
Model 01US10S
Input 12 / 24 / 36 / 90 VDC
Max. Load 9000N Ball Screw / 5500N ACME
Max. Speed 8 mm/sec
Stroke Length 450, 600, 900 mm
Gear Ratio 40:1
Duty Cycle 25%
Environment -25 ° C ~ 65 ° C
Static Load Capacity 7000N Ball Screw / 4500N ACME


FEATURE:
Ball Screw or ACME Driving
Powerful Motor with Low Power Consumption
Motor Voltage: 12/24/36 V DC Motor
Dynamic Load: 9000N max. (Ball Screw) / 5500N (ACME)
7000N Rated (Ball Screw) / 4500N (ACME)
17100N Static(Ball Screw) / 13600N (ACME)
Clutch for Overload Protection
Adjustable Limit Switches
Hall Effect Sensor(Digital Feedback)
Powder Metallurgy Gears
Aluminum Back Cover
Standard Stroke: 450/600/900mm (18/24/36 in)
Duty Cycle: 25% (4 minutes running + 12 minutes off)
Clamp
Gear Ratio: 40:1
Working Temperature: -25° C to +65° C
Protection: IP54


Option:
  • Stainless Extension Tube
  • Potentiometer (Analog Feedback)
  • Reed Sensor (Digital Feedback)
  • 01ARX1 Solar Tracking Control
  • Gear Ratio: 30:1
  • Protection: IP65
  • Plastic Back Cover


Model No. Designations
01US10S- 36-
Voltage
36-36 VDC
24-24 VDC
12-12 VDC
40-
Gear Ratio
40-40:1
(30-30:1)
B-
B:С
ACME
A:С
Ball Screw
600-
Stroke
450mm
600mm
900mm
RD.POT.PB.MB
RD: Reed Sensor
POT: Potentiometer
MB: Metal Back Cover
PB: Plastic Back Cover
IP65


Retracted Lenght , mm.
Stroke 450 600 900
ACME 164 917 1269
Ball Screw 810 963 1315

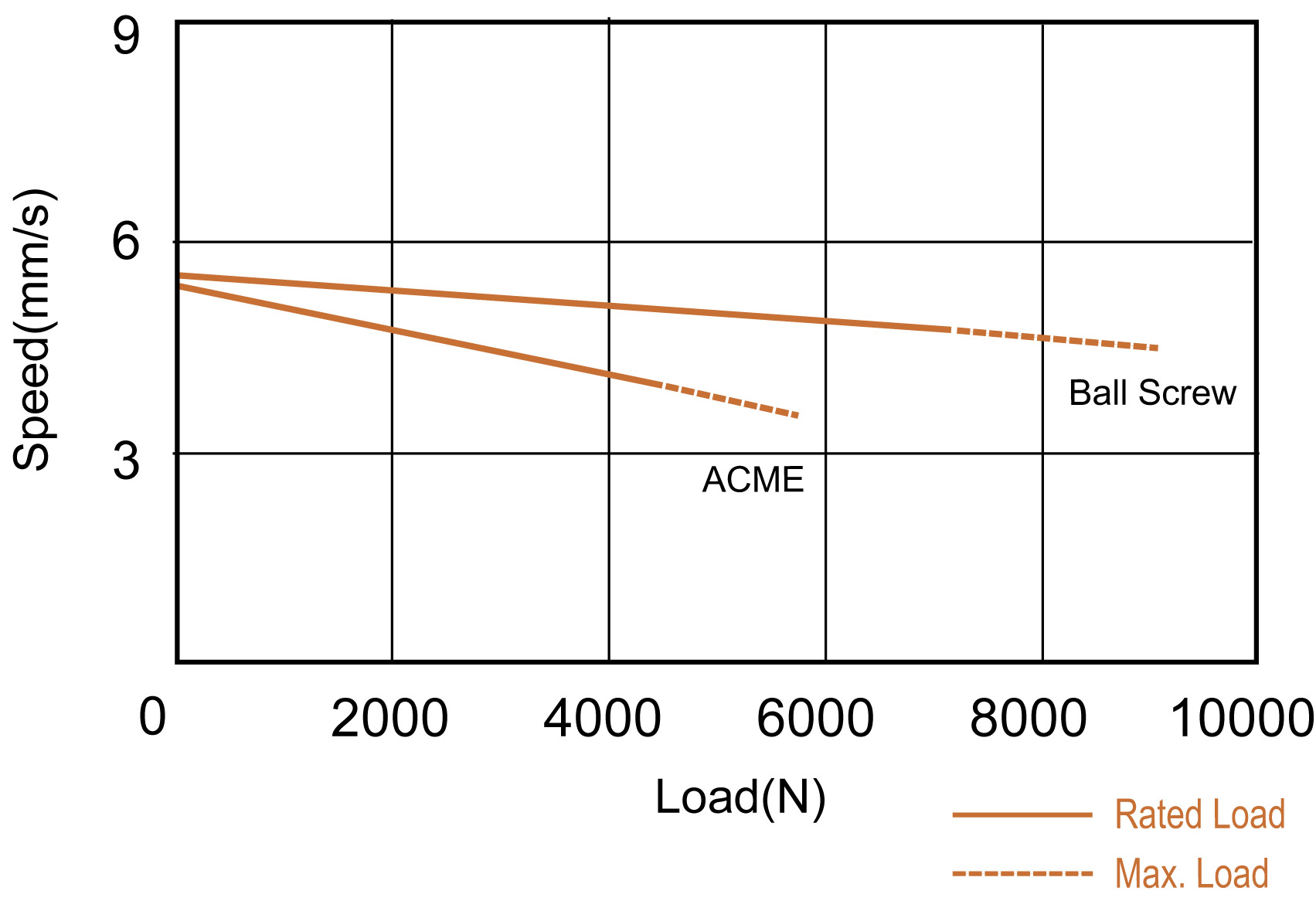

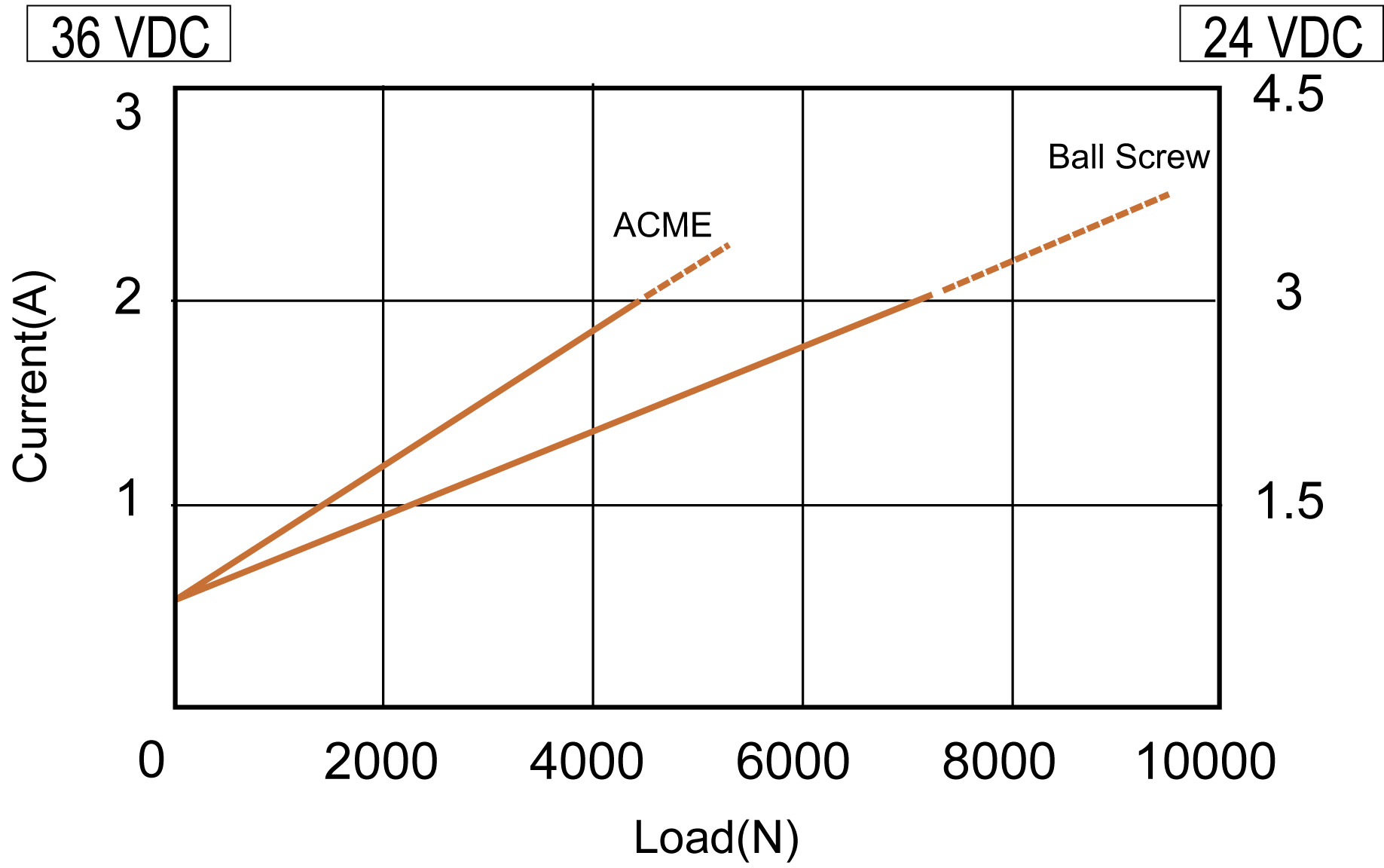

Speed vs Load Current vs Load
01US10S 01US10S
