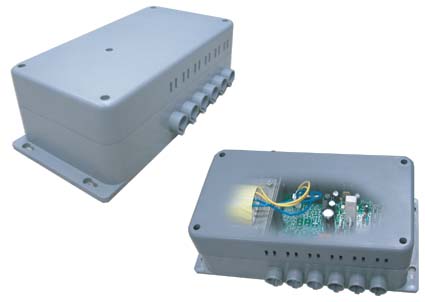

Powerful Control to Drive up to 4 Actuators
01XV4N



Powerful Control to Drive up to 4 Actuators 01XV4N

Specification:
Model 01XV4N
Input 100/120/230V
AC,
50/60Hz
Output 24V DC
@ 3A (High Power Version: 6A)
FEATURE:
Drive up to 4 Actuators
Max. 2 Handsets
Overload Protection


Option:
Synchroization of 2 actuators
Rechargeable with or without 2*12V DC Batteries
Memory Function
Middle Stroke Positioning Function


Model No. Designations:
01XV4N- 120-
Input
100 VAC
120 VAC
230 VAC
24-
Output
24 VDC
12 VDC
1-
Handset
1:for 1 handset
2:for 2 handsets
4-
Connector
1:for 1 actuator
2:for 2 actuators
3:for 3 actuators
4:for 4 actuators
HS.SY.BA
Option
HS:Hall sensor(Position Memories)
SY:Synchronization
for 2 actuators
CG:Charger Function
BA:w/ Battery(Charger Function lncluded)


Powerful Control to Drive up to 4 Actuators
