Medical Actuator
01NS7




The most elaborate furniture actuator among all

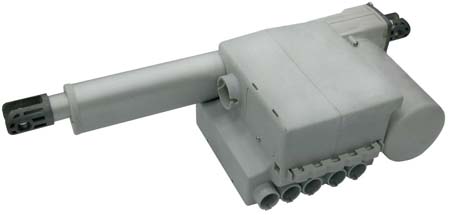

Actuator 01NS7

Specification:
Model 01NS7
Input 12/24V DC
Load Capacity 6000N Max
Speed at Full Load 3.8 (mm/sec)
ACME Single / Dual Threads
Stroke Length 50 /100 /150 /200 /300
(2 /4 /6 /8 /10 /12 inch)
Mounting Clevis to Clevis( different angles available)
Duty Cycle 10%
Environment -26 ° C~ 65 ° C
Limit Switches Built-in (preset in factory)


12/24 DC Motor
Powerful with Ultra Low Noise
Max. Speed: 44 mm /sec
Multiple Application Choices
IP54



Option:
  • Hall Effect Sensor
  • Push Only
  • Safety Nut
  • Optional or Customized Front/Rear Mounting Bracket
  • Spiral Cable
  • IP65


Model No. Designations
01NS7- 24-

Voltage
12: 12 V DC
24: 24 V DC
A4

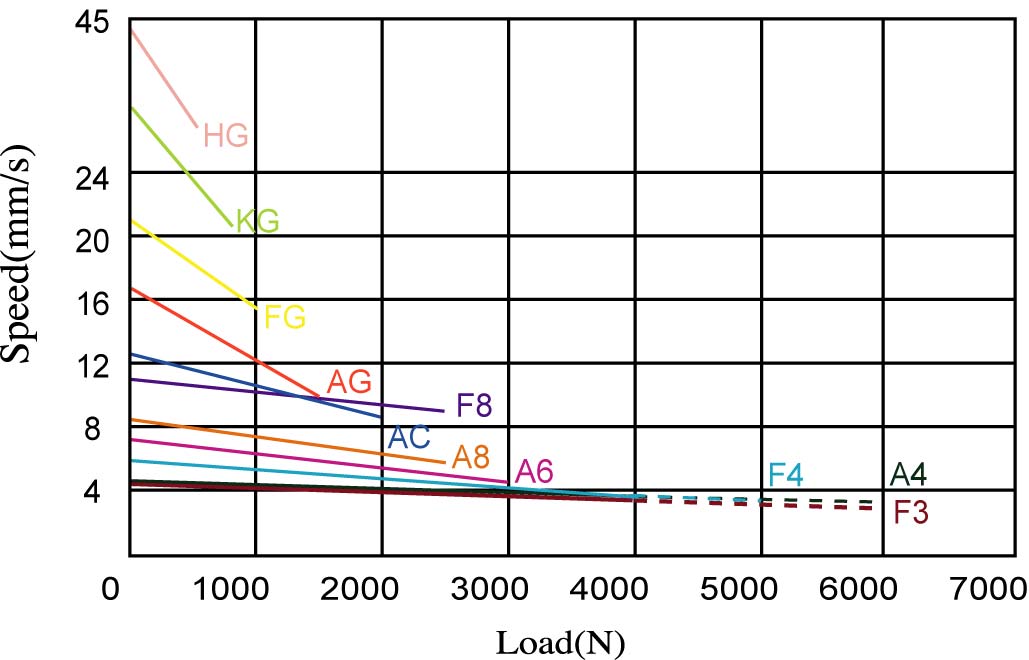

Speed V.S Load
228.288

A . B
A: Retracted Length
B: Extended Length

Stroke = B - A
C5 2

8: Front connector
2: Rear connector
HS.PO.SN

Option
HS: Hall Sensor x 1
HS2: Hall Sensor x 2
PO: Push Only
SN: Safety Nut
IP65

01NS6X
XV2O-
120-

Input Voltage
100V AC
120V AC
230V AC
24-

Output Voltage
24: 24V DC
12: 12V DC
1

Handset
1: for 1 handset
3

Output Port
1: for 1 actuators
2: for 2 actuators
3: for 3 actuators
4: for 4 actuators



Stroke 50 100 150 200 250 300
Retracted Length 228 278 338 388 448 498
Extended Length 278 378 488 588 698 798 (mm)

PS.other stroke available

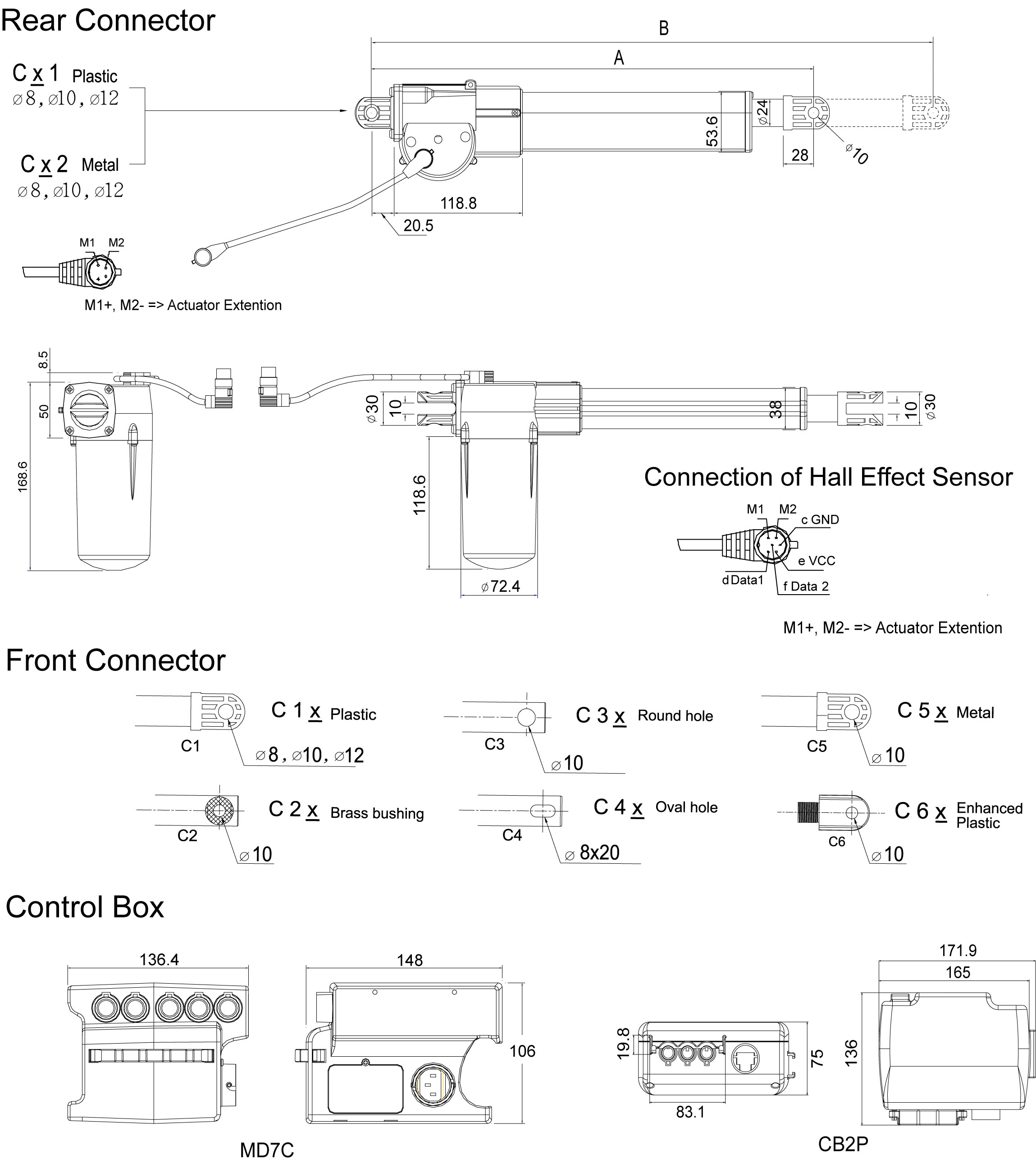

Actuator 01NS7 draw

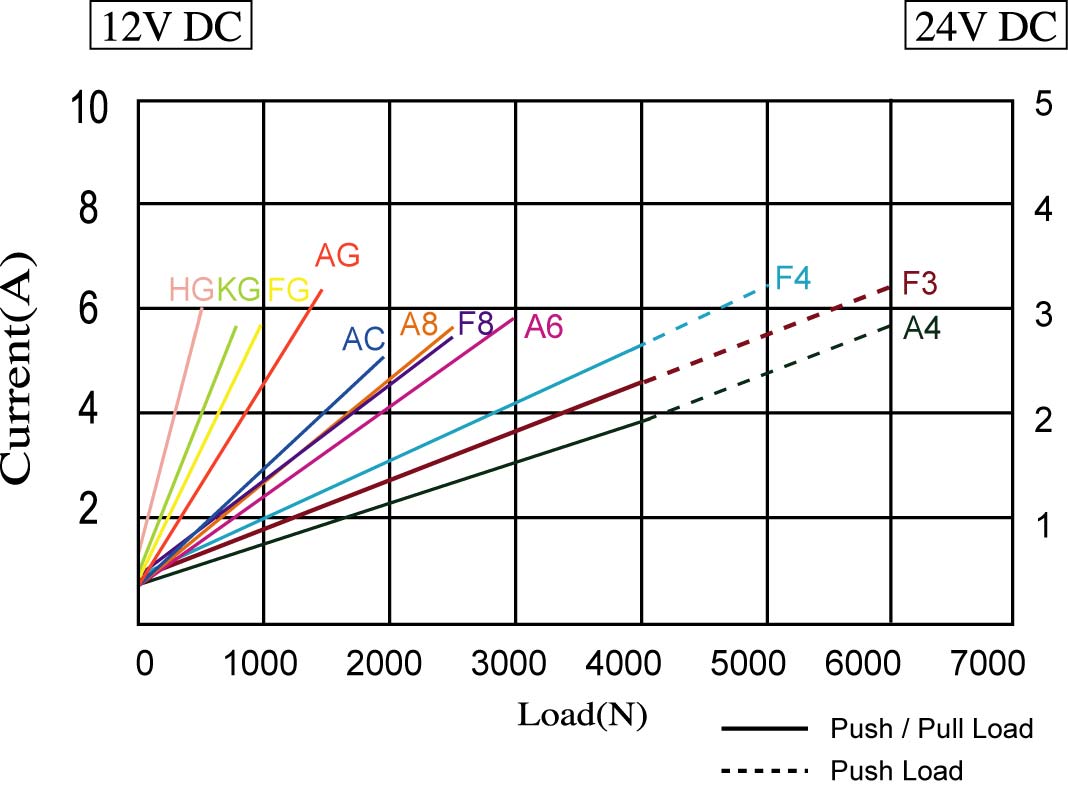

Speed vs Load Current vs Load
Actuator 01NS7 Actuator 01NS7
