DiSEqC positioner
01C-VIZ II




One for two applications:
DiSEqC positioner and stand alone positioner

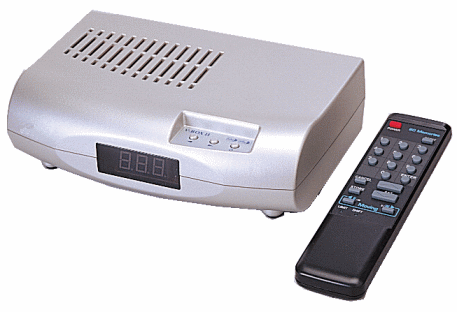

DiSEqC positioner 01C-VIZ II

Specification:
Model 01C-VIZ II
Input 230 VAC / 50Hz(110 VAC / 60Hz available)
Output 36 VDC
Max. Dish Diameter 3M / 5M
Max. Output Current 3.5A / 4.2A
Max. Power Consumption 80W / 100W
Protocol DiSEqC 1.0 / 1.2
Position Memories 60
Controled by DiSEqC 1.2/1.0 Receiver or Optional Remote Control
LED Display 3 Digits
Resynchronize Function YES
Manual Buttons Power ON / OFF, EAST / WEST
Protection Software Limit Protection
Electric Overload Protection


Compatible with DiSEqC 1.0 /1.2 Receiver or Any Receiver
Compatible with any Reed Switch Actuator or H-H Mount
5V DC Output for Optical Sensor Actuator ( Optional )
3 Digit LED Display
Drive Dish up to 3M ( Optional: 5M )
60 Satellite Positions
Fine-tune EAST / WEST Buttons
Optional Remote Control Available
Overload Protection ( Auto-recovery )
Anti-Noise Design

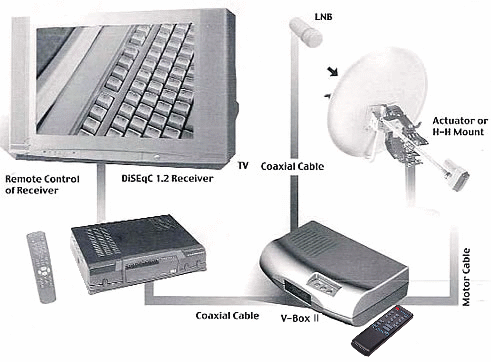

How to connect:
DiSEqC positioner 01C-VIZ II
