Furniture Actuator
01RQ40/60




Two motors in one

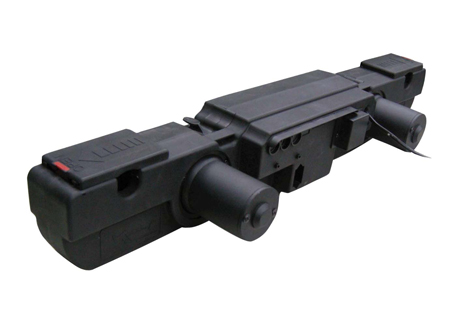

Actuator 01RQ40/60

Specification:
Model 01RQ40/60
Input 100/120/230 V AC Converter
Max. Load 2x4,500N;2x6,000N
Max. Speed 5 mm/sec
Stroke 29~87mm
Duty Cycle 10% or 2 min continuous operation in 20 min
Installation Length 581mm
Installation Height 120 mm
Environment -25° C~65° C


Push Force: 2x4,500N;2x6,000N
Low Noise Level
Compact Size w/2x24V DC Motor + 100 / 120 / 230V AC Converter
Emergency Lowering Function
Color: Black or Gray
IP43



Option:
  • Additional Connections for : 1-2 Actuators
  • Safety Plug (mains Cut-off)
  • Memory Function
  • IP 54
  • Wired Handset
  • RF Handset
  • IR Handset


Model No. Designations
01RQ40-

40:4500N
60:6000N
120-

Input Voltage
100V AC
120V AC
230V AC
(87.69)

A . B
A: Stroke of head Motor
B: Stroke of foot Motor
Stroke:29~87.
If not specified, the standard is 87.69
1

Handset
1:for 1 handset
2

2: One Twinmat
3: 1 Additional Actuator
4: 2 Additional Actuators
SP

Option
SP: Safety Plug*
HS: Memory Function

54:IP54

*Safety Plug: Cut off
AC power while the motor is not operating

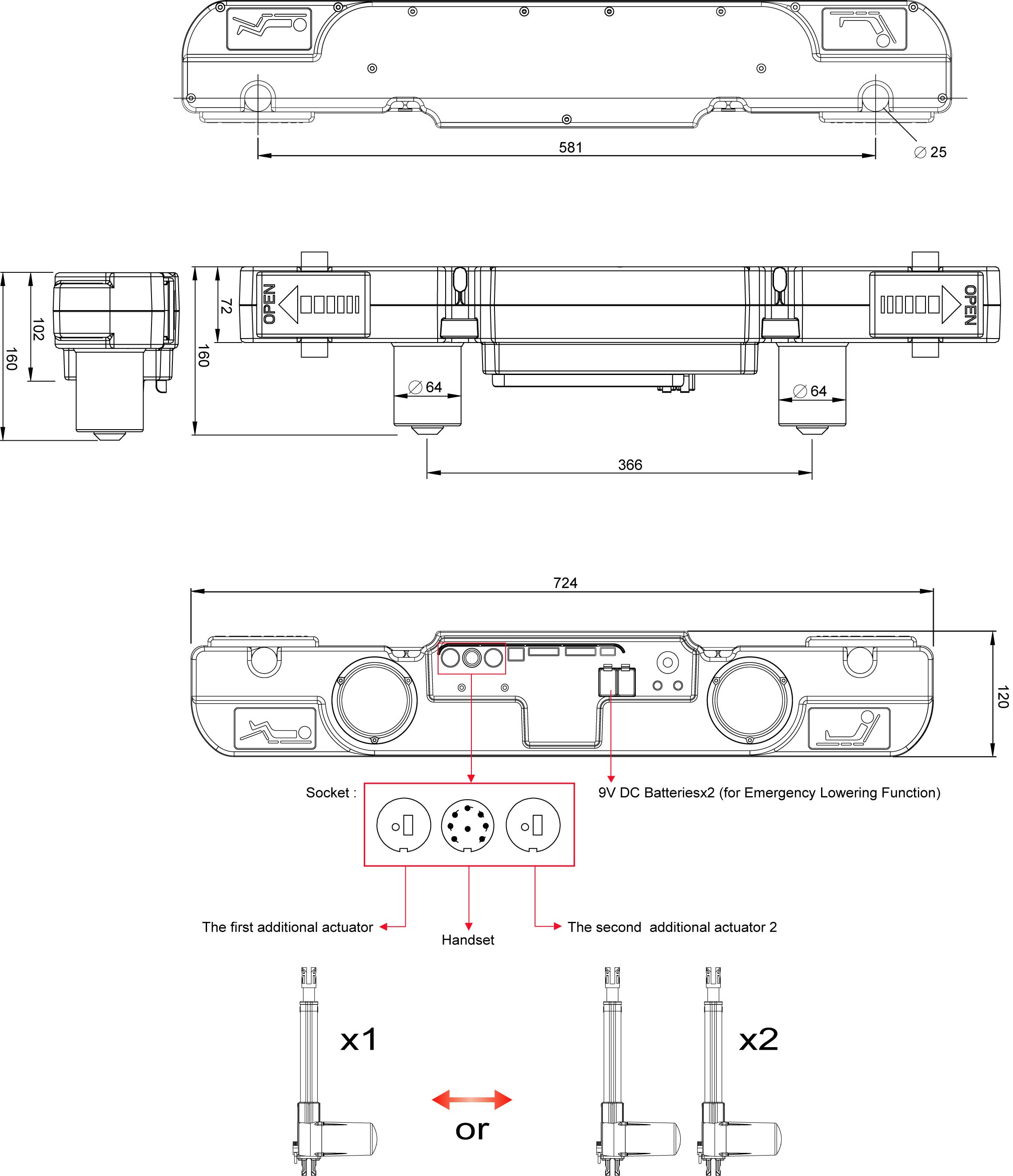

Actuator 01RQ40/60 draw
