Motor GearBox

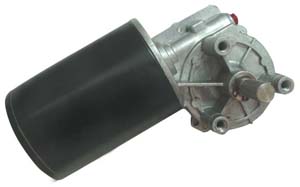

01NF-Q1
Right Angle Motor Gearbox
Right Angle Motor Gearbox 01NF-Q1 Specification:
Max. Torque: 2Nm
Motor Voltage: 12/24V DC
Max. Speed: 90 RPM
Max. Current: 5A (24V)
Gear Ratio: 55:1
Duty Cycle: 20%

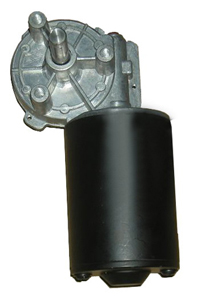

01NF-Q2
Right Angle Motor Gearbox
Right Angle Motor Gearbox 01NF-Q2 Specification:
Max. Torque: 2Nm
Motor Voltage: 12/24V DC
Max. Speed: 90 RPM
Max. Current: 5A (24V)
Gear Ratio: 55:1
Duty Cycle: 20%

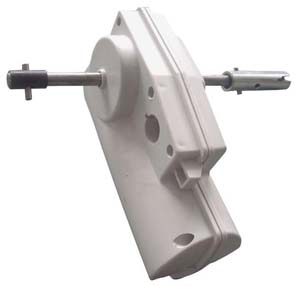

01NF-Q4
Motor Gearbox
Motor Gearbox 01NF-Q4 Specification:
Max. Torque: 2Nm
Motor Voltage: 12/24V DC
Max. Speed: 90 RPM
Max. Current: 5A (24V)
Gear Ratio: 55:1
Duty Cycle: 20%
IP54

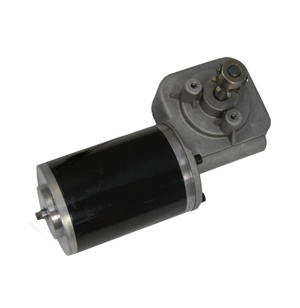

01NF-G1
Right Angel Motor Gearbox
Right Angel Motor Gearbox 01NF-G1 Specification:
Max. Torque: 6.7Nm
Motor Voltage: 12V DC
Max. Speed: 117 RPM
Max. Current: 30A
Gear Ratio: 30:1
Duty Cycle: 25%




01NF-G3
Right Angel Motor Gearbox
Right Angel Motor Gearbox 01NF-G3 Specification:
Max. Torque: 11.3Nm
Motor Voltage: 12V DC
Max. Speed: 46 RPM
Max. Current: 30A
Gear Ratio: 61:1
Duty Cycle: 25%

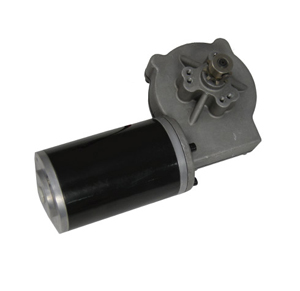

01NF-G4
Right Angel Motor Gearbox
Right Angel Motor Gearbox 01NF-G4 Specification:
Max. Torque: 9.2Nm
Motor Voltage: 12V DC
Max. Speed: 71 RPM
Max. Current: 30A
Gear Ratio: 51:1
Duty Cycle: 25%

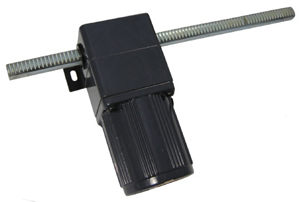

01NF-J1
AC Motor Gearbox (One Screw drives from left to right or from right to left)
AC Motor Gearbox 01NF-J1 Specification:
Motor Voltage: 110V AC
Speed: 30 mm/sec
Current: 0.2A

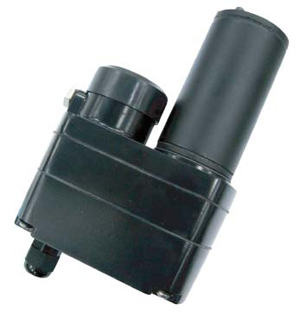

01NF-RS2
Motor Gearbox
Motor Gearbox 01NF-RS2 Specification:
Max. Torque: 9.2Nm
Motor Voltage: 24V DC
Current at no load ≤ 1.5A
Current at Max. load ≤ 4.5A
Duty Cycle: 20%

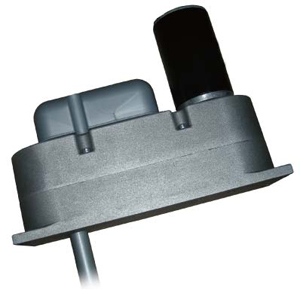

01NF-GE
Motor Gearbox
Motor Gearbox 01NF-GE Specification:
Max. Torque: 25.5Nm
Motor Voltage: 24V DC
Max. Speed: 3.3 RPM
Max. Current: 3.5A
Gear Ratio: 638:1

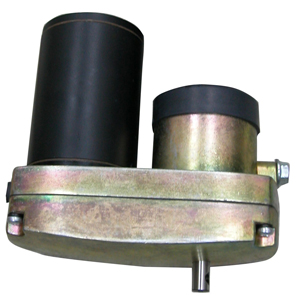

01NF-RA
Motor Gearbox
Motor Gearbox 01NF-RA Specification:
Max. Torque: 3.96Nm
Motor Voltage: 12V DC
Max. Speed: 280 RPM
Max. Current: 20A
Gear Ratio: 18:1

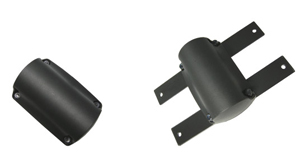

01CN01
Vibration Motor
Vibration Motor 01CN01 Specification:
Motor Voltage: 24V DC
Max. Current: 0.5A
Thermal Overload Protection
Duty Cycle: 10%
(30 min Max. on, 270 min off)


Option:
Mounting Bracket




01NF-K2
Quick Landing Motor Gearbox
Quick Landing Motor Gearbox 01NF-K2 Specification:
Max. Torque: 20Nm
Motor Voltage: 12V DC
Max. Speed: 170RPM
Max. Current: 20A
Gear Ratio: 35:1
Ball Detent Clutch
Duty Cycle: 10%




01NF-KE2
Large Room Gearbox II
Large Room Gearbox II 01NF-KE2 Specification:
Max. Torque: 142Nm
Motor Voltage: 12V DC
Max. Speed: 10.6 RPM
Max. Current: 18A
Gear Ratio: 200:1, 300:1
Motor Brake




01NF-EP18
Right Angel Motor Gearbox
Right Angel Motor Gearbox 01NF-EP18 Specification:
Max. Torque: 26Nm
Motor Voltage: 12V DC
Max. Speed: 12 RPM
Max. Current: 20A
Gear Ratio: 18:1
