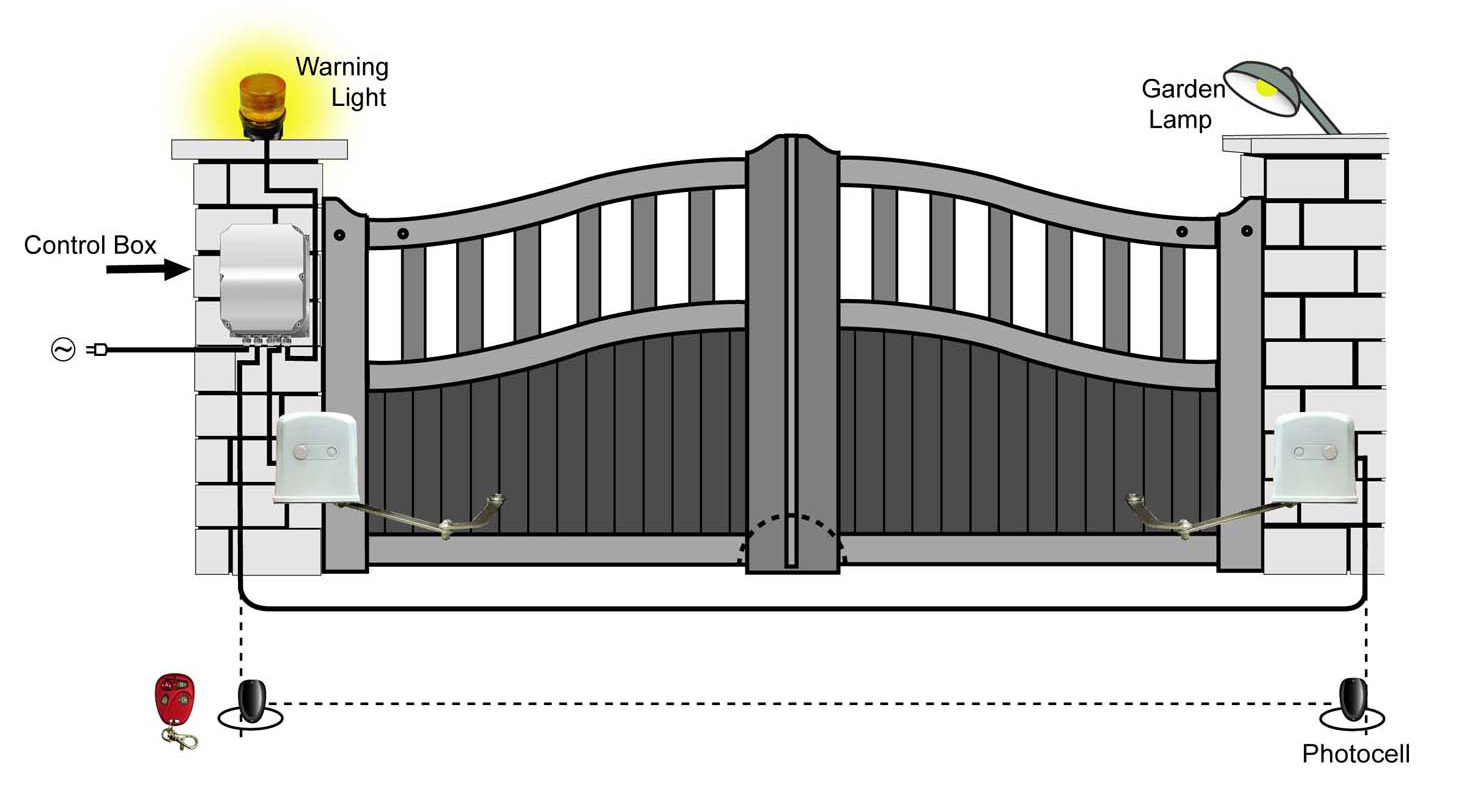

Swing gate opener
01AQ300P



Swing gate opener  01AQ300

Specification:
Model 01AQ300P
Input 12VDC
Average Operating Current 2.0A
Gate Length 4.8M Max. (2.4 + 2.4)
Gate Weight 400kgs Max. (200 + 200)
Duty Cycle 20%
Overload Protection Current Detection
Speed of Operator 9° / sec
Approx. Dimension 685L x 230W x 250H mm
Approx. Weight 5Kgs
Approx. Dimension 680L x 450W x 235H mm


Control Box 01AQ-200S
Input 110/230V AC; 60/50HZ
RF Remote 433.92MHz w/Rolling Codes
Weight 2,6 kg
Dimensions 299L x 200W x 120H mm
Recharging Functions Built In (12V DC Battery not included)

Compact & Powerful
Quick Release
Applicable for both Single and Dual Gates
Garden Lamp Function
IP44
