Actuator positioner
01NO828

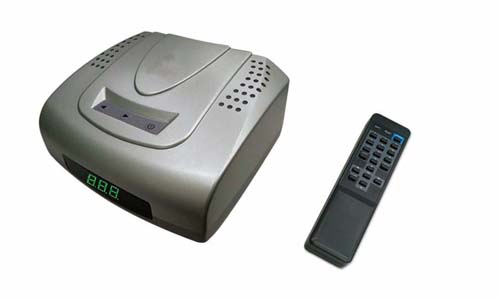

Actuator positioner 01NO828

Specification:
Model 01NO828
Input 220~240V AC / 50 Hz (110V AC / 60 Hz Available)
Power Consumption(Max.) 70W / 80W
Compatible Motors 24V~36V DC
Max.Current 2.2A / 3.5A
Dimension(mm) 222L x 174W x 86H
Manual Control Buttons Power ON / OFF, EAST / WEST
Position Memories 60
Remote Control IR
LED Display 2 Digits
Short Circuit Protection YES
Overload Protection Electronic


60 Programmable Memories
Manual Control
IR Remote Control
2 Digit LED Display
Software Limit Protection
Drive Dish up to 3M (Optional: 5M)
