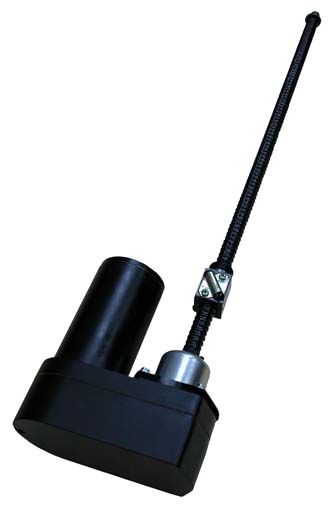

Industrial Actuator 01US10C




01US10C


Specification:
Model 01US10C
Input 12 / 24VDC
Max. Load 7000N
Max. Speed 67 mm/sec
Stroke Length 102, 153, 203, 305, 457, 610 mm
Gear Ratio 5:1, 10:1, 20:1, 30:1, 40:1
Duty Cycle 25%
Environment -25 ° C ~ 65 ° C


FEATURE:
Max Load: 7000N
Motor Voltage: 12/24V DC
Max. Speed Range: 8~67 mm/sec
Standard Stroke: 102/153/203/305/457/610mm
Overload Clutch Protection
Duty Cycle: 25%


Option:
  • Max. Load: 9000N


Model No. Designations
Model 01US10Ñ
01US10Ñ- 24-
Voltage
12-12VDC
24-24 VDC
20-
Gear Ratio
5-5:1
10-10:1
20-20:1
30-30:1
40-40:1
B-
B:Ñ
ACME
A:Ñ
Ball Screw
102-
Stroke
102mm
153mm
.
.
LT.POT.MD.C1....
LT:Limit Switch
POT:
Potentiometer
MD:Manual Drive
IP65

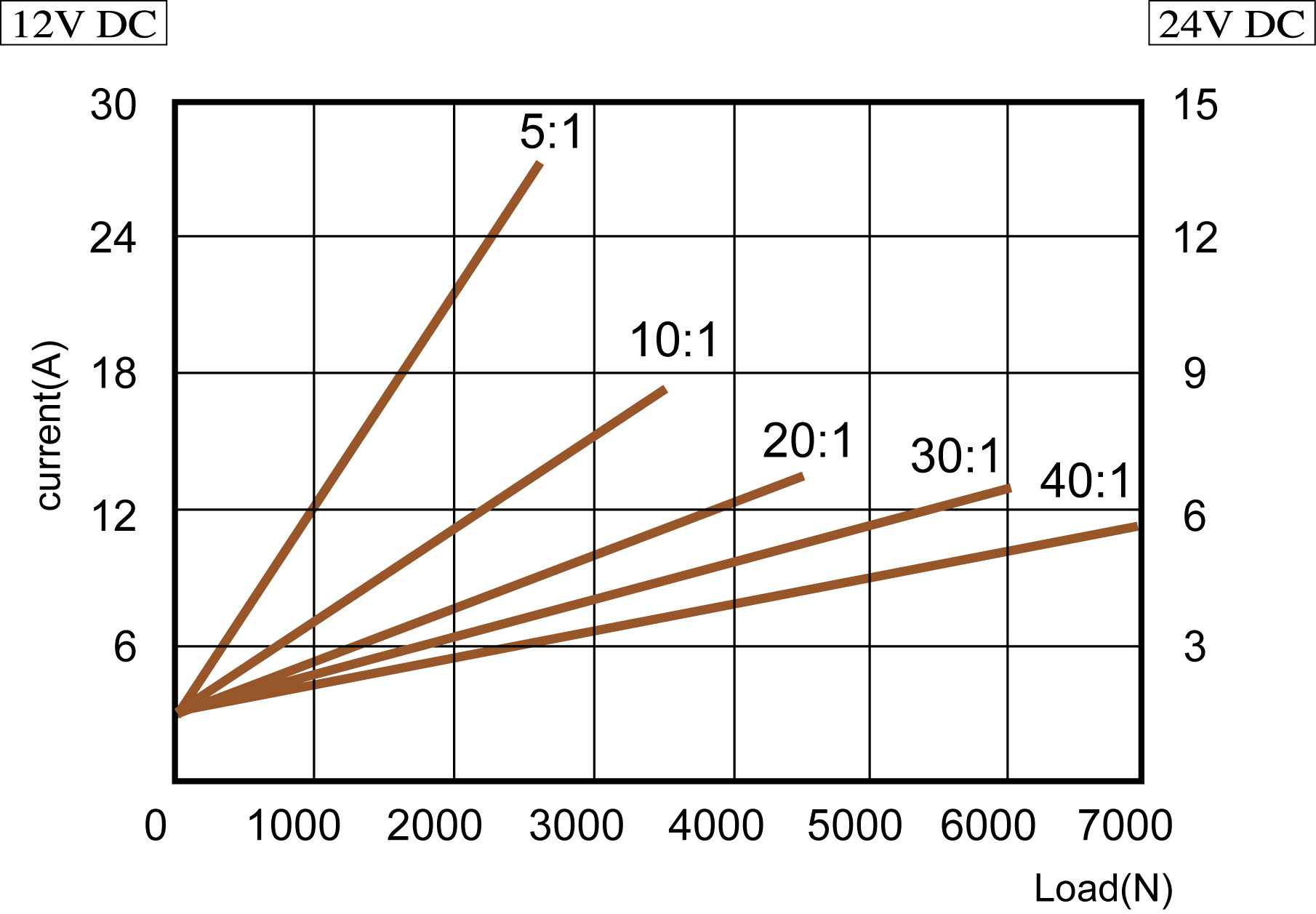

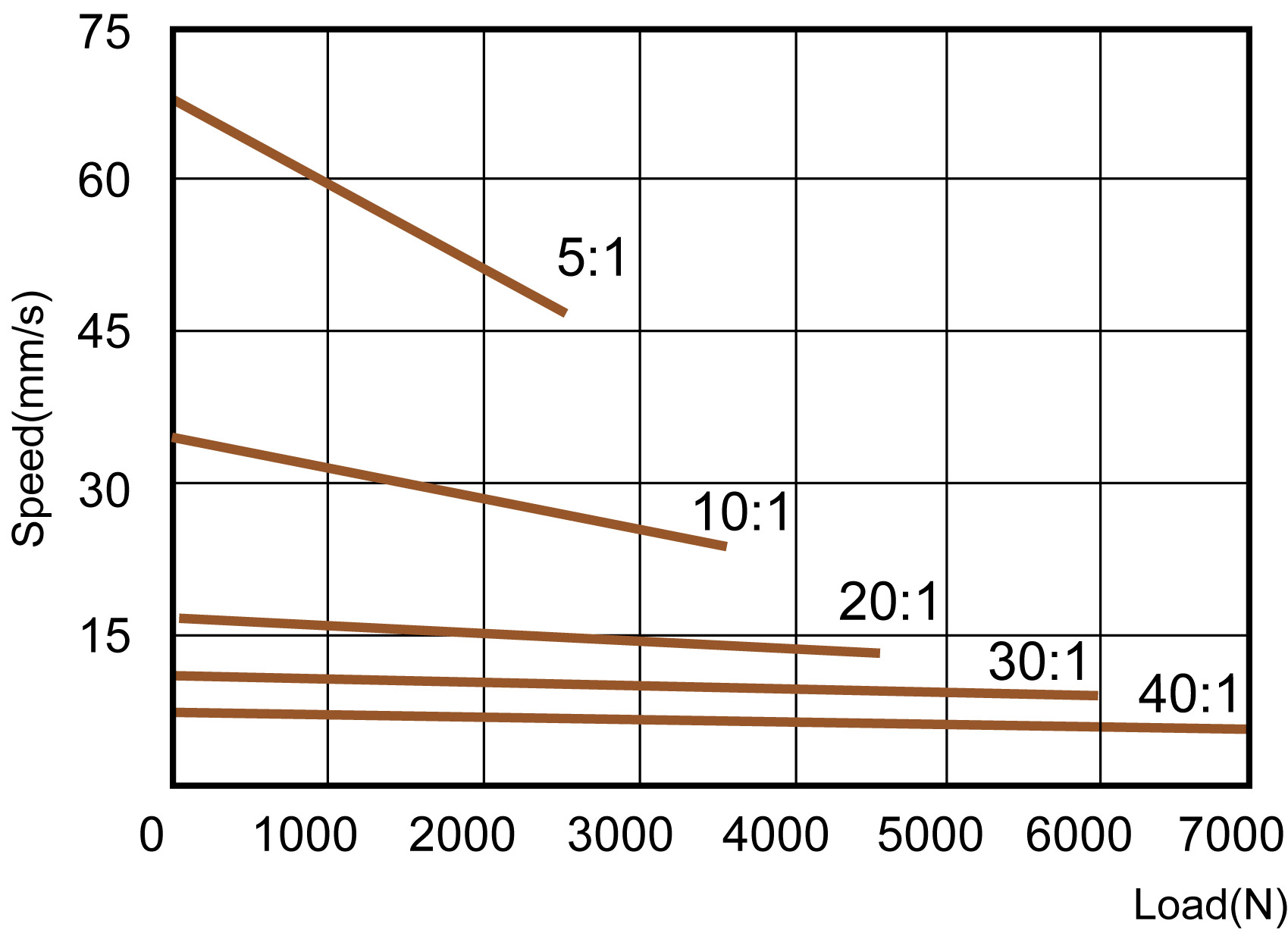

Speed vs Load Current vs Load
01US10C 01US10C
