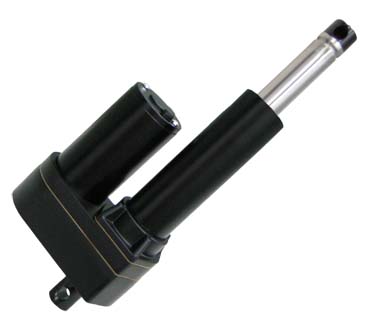

Industrial Actuator
01US10 B




01US10B

Specification:
Model 01US10 B
Input 12 / 24VDC
Max. Load 7000N
Max. Speed 67 mm/sec
Stroke Length 102, 153, 203, 305, 457, 610 mm
Gear Ratio 5:1, 10:1, 20:1, 30:1, 40:1
Duty Cycle 25%
Environment -25 ° C ~ 65 ° C
Static Load Capacity 13600N


FEATURE:
Max Load: 7000N
Motor Voltage: 12/24V DC
Max. Speed Range: 8~67 mm/sec
Standard Stroke: 102/153/203/305/457/610mm
Stainless steel extension tube
Powder metallurgy gears
Overload Clutch Protection
No back driving
Working temperature: -25 ° C to +65 ° C
Duty cycle: 25%
Gear ratio: 5:1, 10:1, 20:1, 30:1, 40:1
Protection: IP54


Option:
  • Optional or Customized Front/Rear Mounting Bracket
  • Potentiometer
  • Adjustable limit switches
  • Manual Drive by Hand Crank
  • Protection: IP65


Model No. Designations
01US10- 24-
Voltage
12-12VDC
24-24 VDC
20-
Gear Ratio
5-5:1
10-10:1
20-20:1
30-30:1
40-40:1
B-
B:С
ACME
A:С
Ball Screw
102-
Stroke
102mm
153mm
203mm
305mm
457mm
610mm
LT.POT.MD.C1....
LT:Limit Switch
POT:
Potentiometer
MD:Manual Drive
IP65

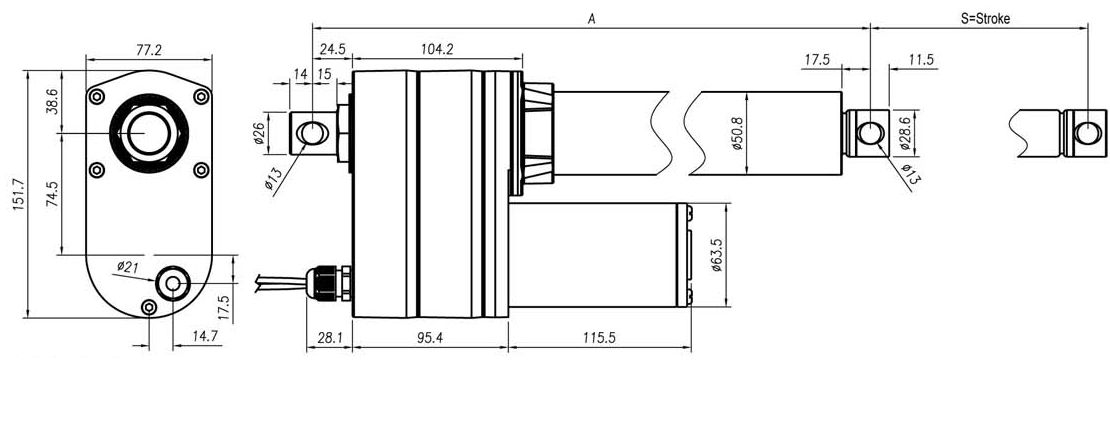

Standart: 506
Stroke (+-2,5mm) 102 153 203 254 305 457 610
Retracted Lenght (+-3,8mm) 302 353 404 455 735 888

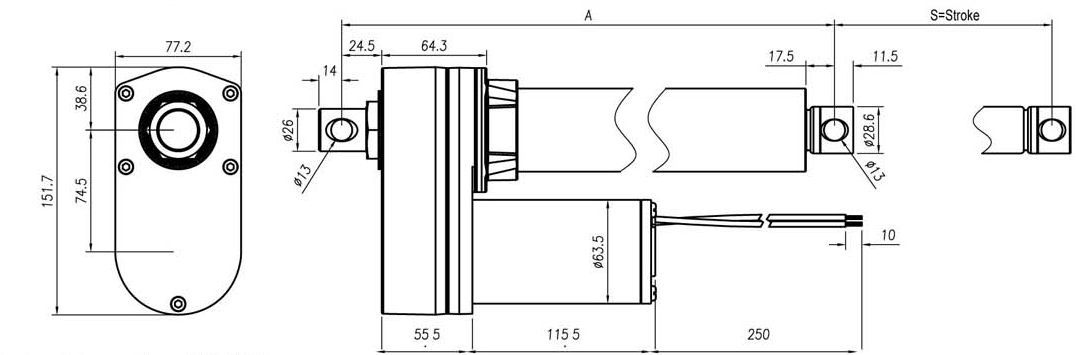

Актуатор 01US10B Standart

Potentiometer
Stroke (+-2,5mm) 102 153 203 254 305 457 610
Retracted Lenght (+-3,8mm) 342 393 444 495 546 775 928

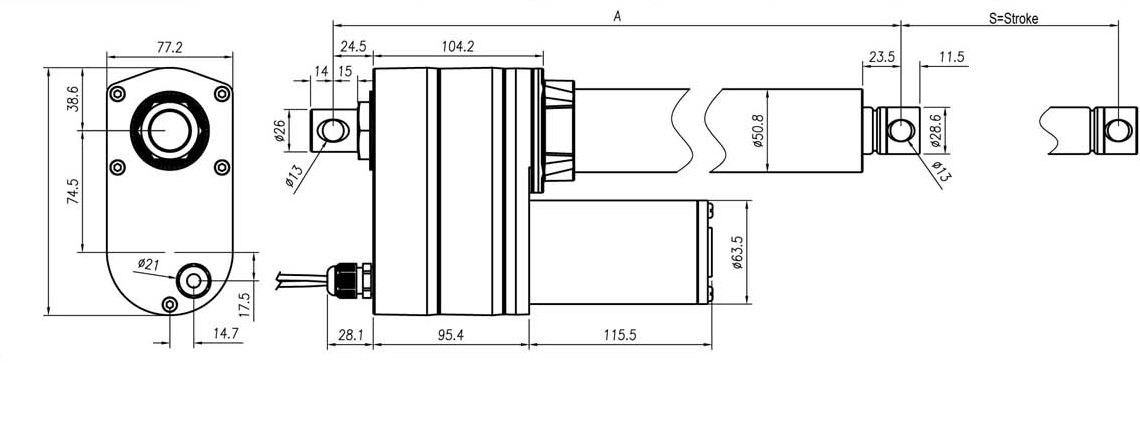

Актуатор 01US10B Potentiometer

With Potentiometr (POT)
Stroke (+-2,5mm) 102 153 203 254 305 457 610
Retracted Lenght (+-5mm) 399 450 501 552 680 832 985


Актуатор 01US10B With Potentiometr (POT)

Gear Ratio Max. Push (N) Max/ Pull (N) Speed at No Load (mm/s) Speed at Full Load (mm/s) Stroke (mm) Voltage VDC
5:1 2500 2500 67 47 102-610 12/24
10:1 3500 3500 33,5 26,7 102-610 12/24
20:1 4500 4500 17 14,3 102-610 12/24
30:1 6000 6000 11 10 102-610 12/24
40:1 7000 7000 8,4 7,4 102-610 12/24

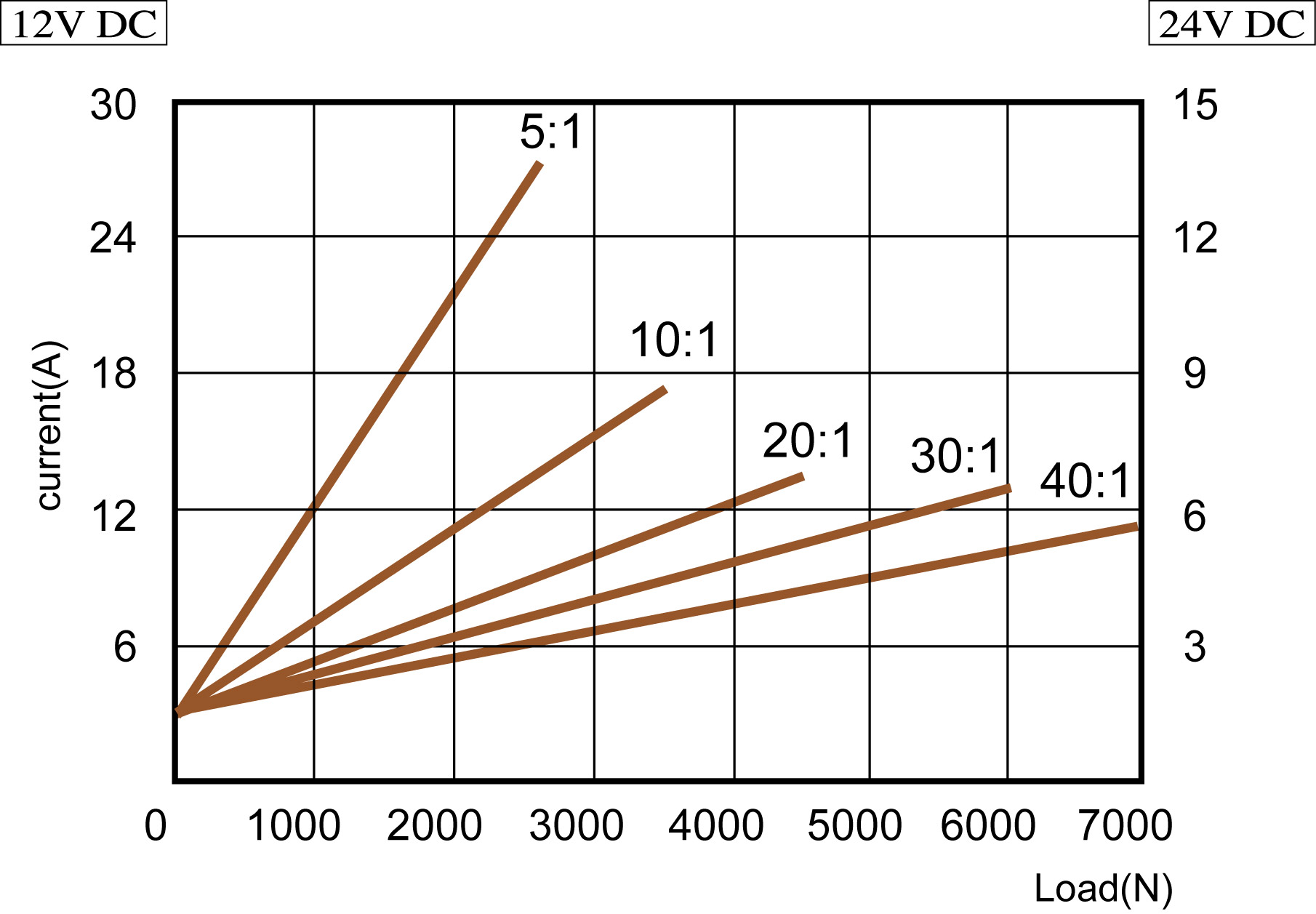

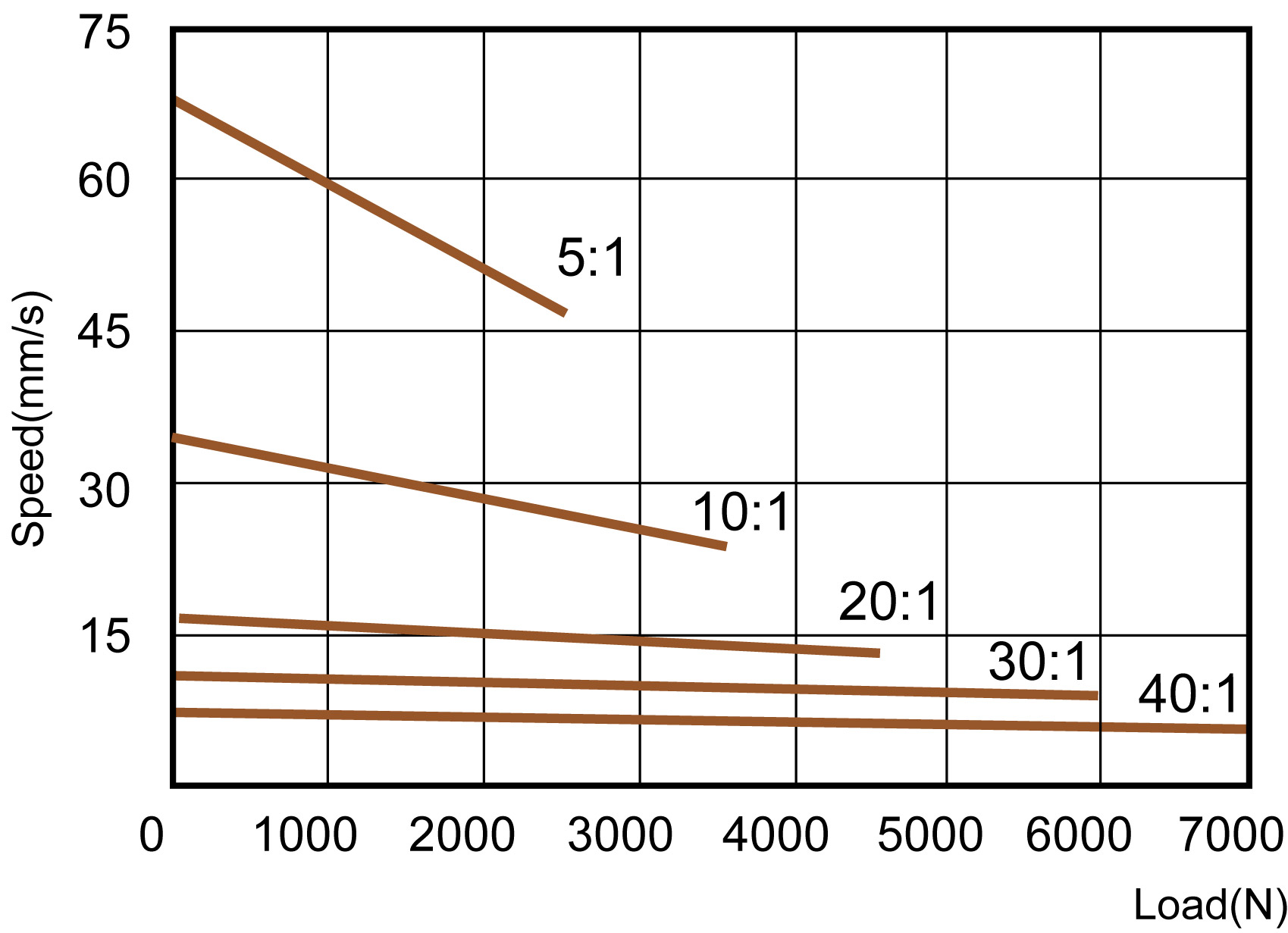

Speed vs Load Current vs Load
