Furniture Actuator
01VSB60

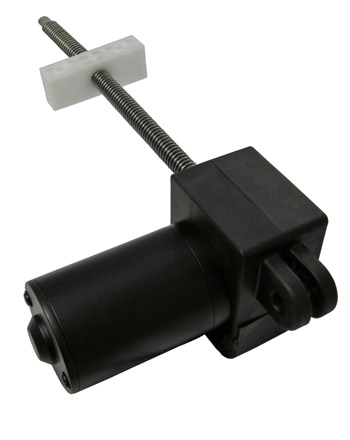

Actuator 01VSB60

Specification:
Model 01VSB60
Input 12/24/110V DC
Max. Load 6000N(push) / 4000N(pull)
Max. Speed 44 mm/sec
Retracted Length Min. 115 (Standard Nut)
Duty Cycle 10% or 2 min continuous operation in 20 min


Adjustable Limit Switches
Without Outer Tube



Option:
  • Motor Voltage: 12/110V DC
  • Hall Effect Sensor
  • Customized Nut


Model No. Designations
01VSB60-
BDN60
*BDN60:Witchout
Outer Tube
24-

Voltage
12: 12 V DC
24: 24 V DC
A4

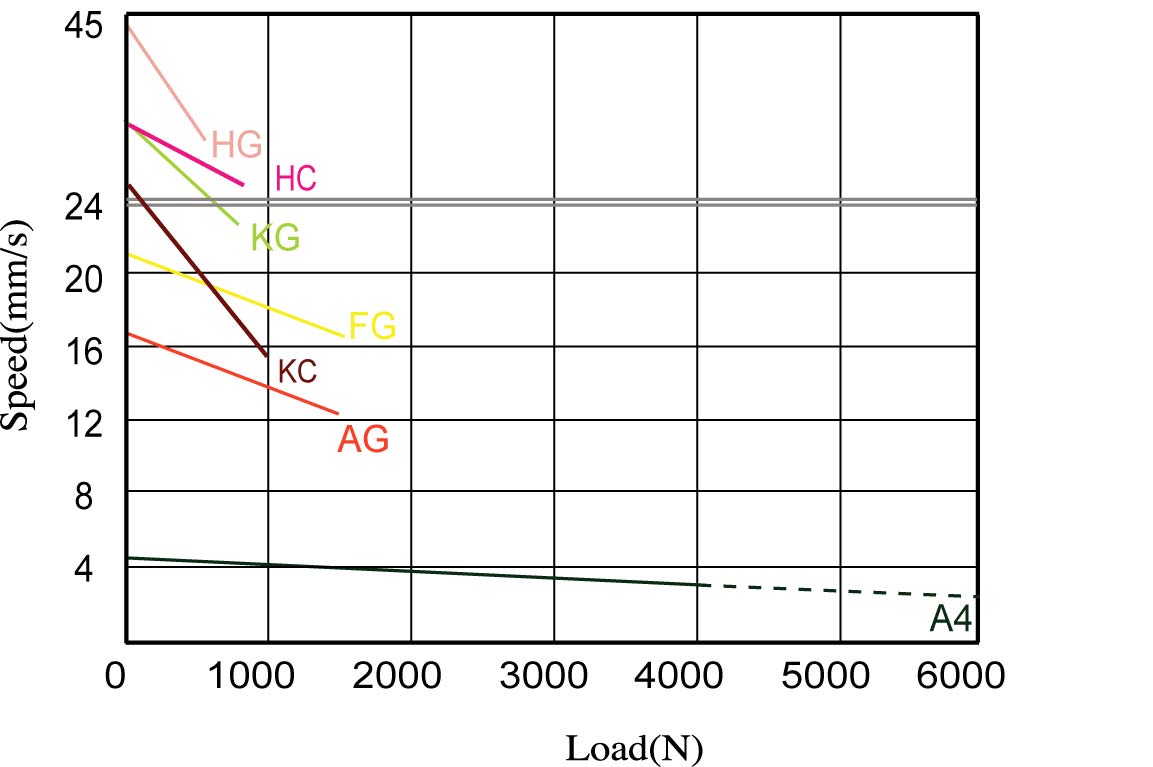

Speed vs. Load
A4
A8
132.518

A . B
Stroke=B-A
A4:400mm Max.
A8:800mm Max
C 1 1

1: Front connector
1: Rear connector
HS

Option
HS: Hall Effect Sensor x 1
HS2: Hall Effect Sensor x 2

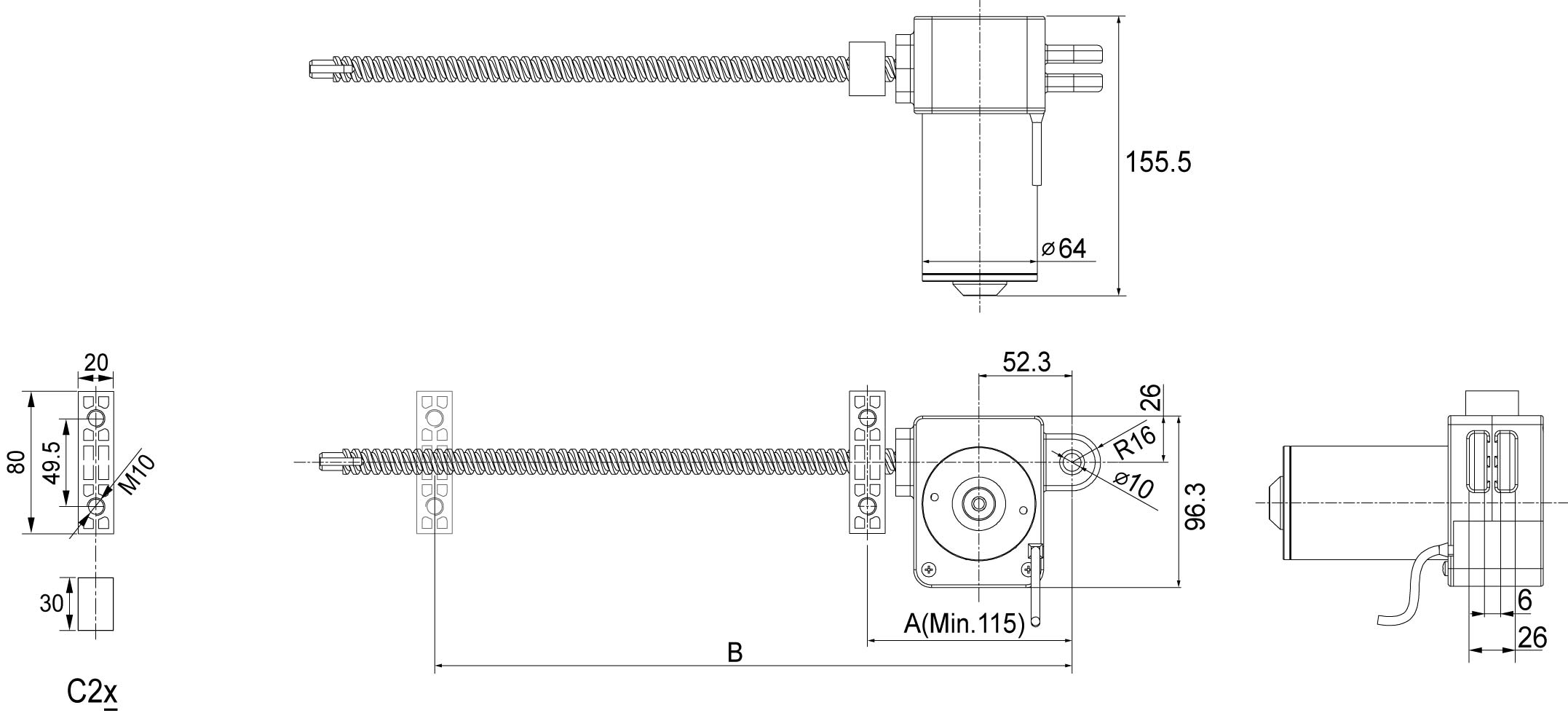

Actuator 01VSB60 draw

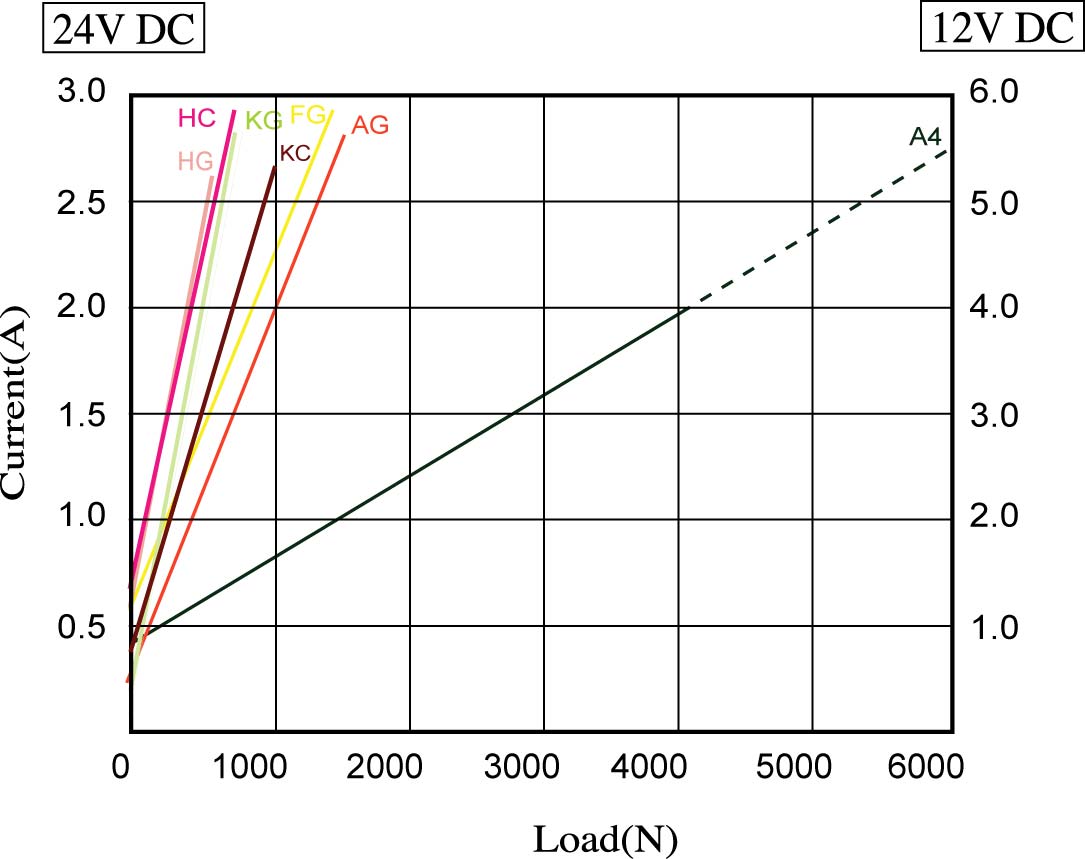

Speed vs Load Current vs Load
Actuator 01VSB60 Actuator 01VSB60
