Furniture Actuator
01FS60




Tube Side-Force Resistance

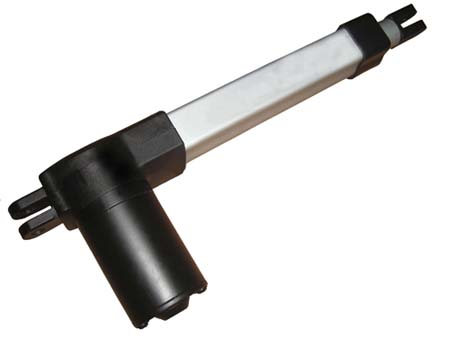

Actuator 01FS60

Specification:
Model 01FS60
Input 12/24 V DC
Stroke 50~300 mm (Customized Stroke Available)
Max. Load 6000N(Push) / 4000N (pull)
Standard Speed 4.2 (no load) / 2.6 (full load) (mm/sec)
Duty Cycle: 10%


Tube Side-Force Resistance
Preset Limit Switches
IP43



Option:
  • Motor Voltage: 12V DC
  • Quick Speed: Up to 14.5mm/sec (full load), 22mm/sec (no load)
  • Hall Effect Sensor
  • Push Only
  • Optional or Customized Front/Rear Mounting Bracket
  • Spiral Cable


Model No. Designations
01FS60- 24-

Voltage
12:12V DC
24: 24V DC
A1-

ACME
A1:Single Thread
A2:Dual Thread
228.278

A . B
A: Retracted Length
B: Extended Length

Stroke = B - A
C 1 2

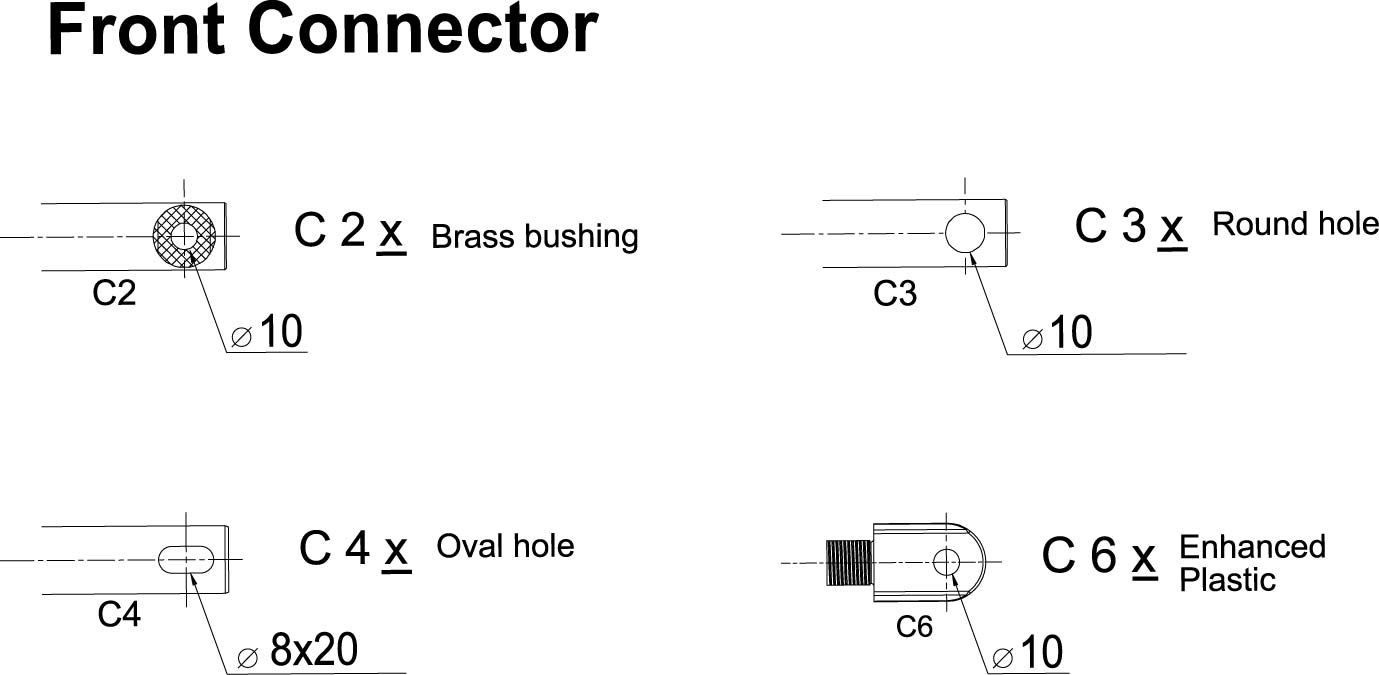

1: Front connector
2: Rear connector
HS.PO.MD

Îïöèè
HS: Hall Sensor x 1
HS2: Hall Sensor x 2
PO: Push Only



Stroke 50 100 150 200 250 300
Retracted Length 223 273 323 373 423 473
Extended Length 273 323 473 573 673 773 (mm)

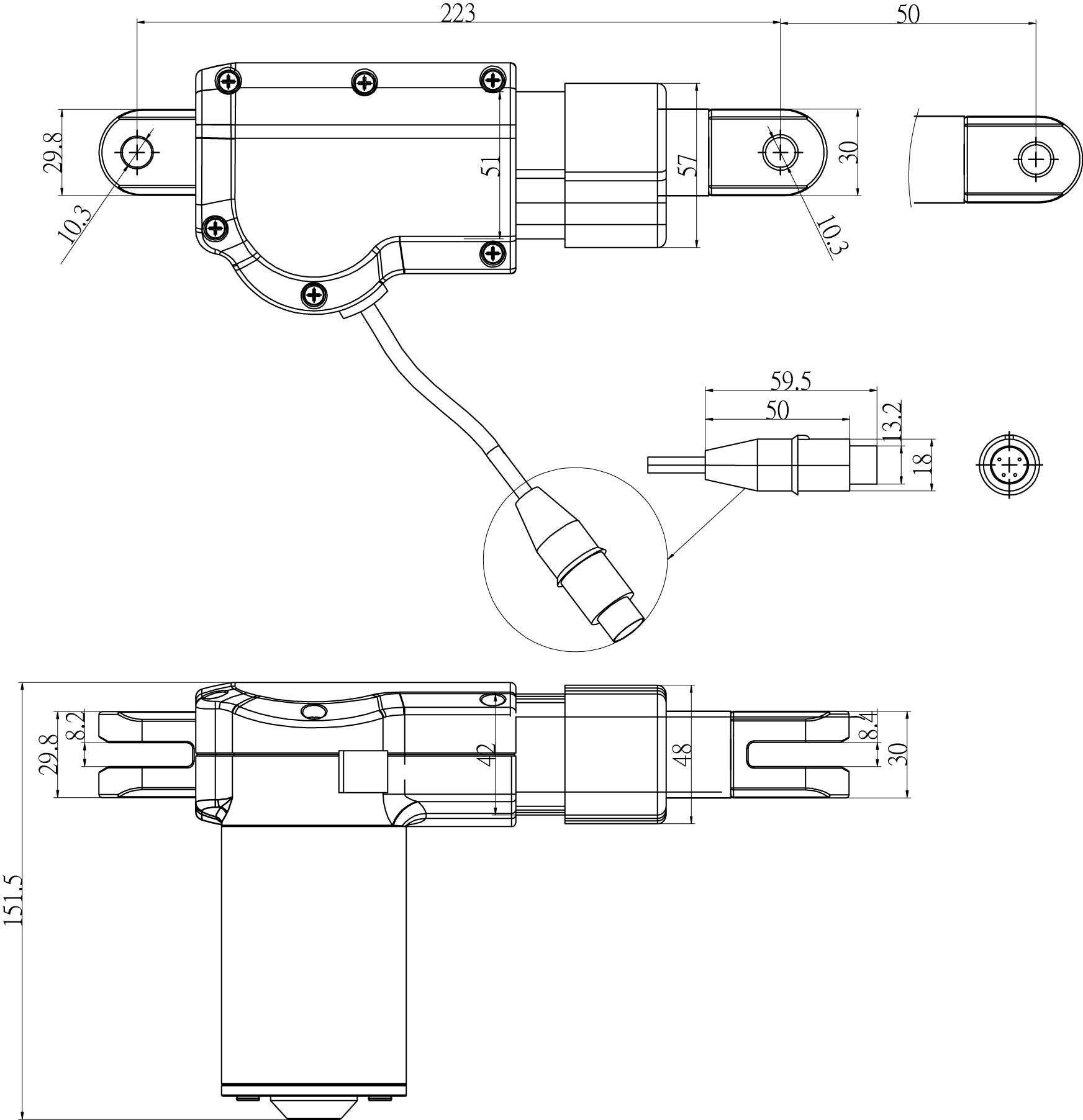

Actuator 01FS60 draw

Actuator 01FS60 draw

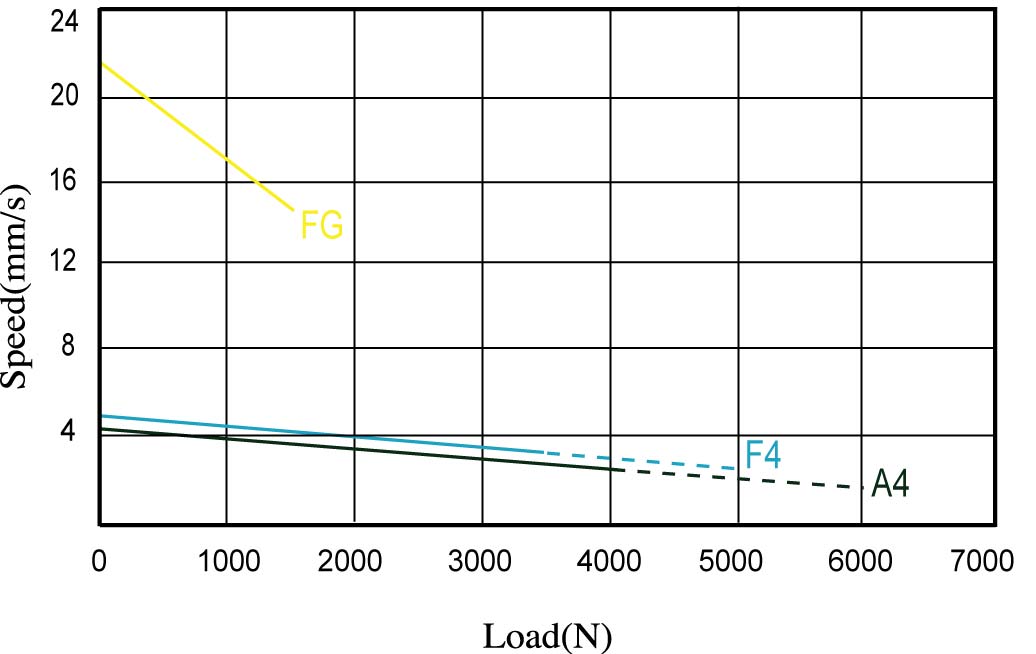

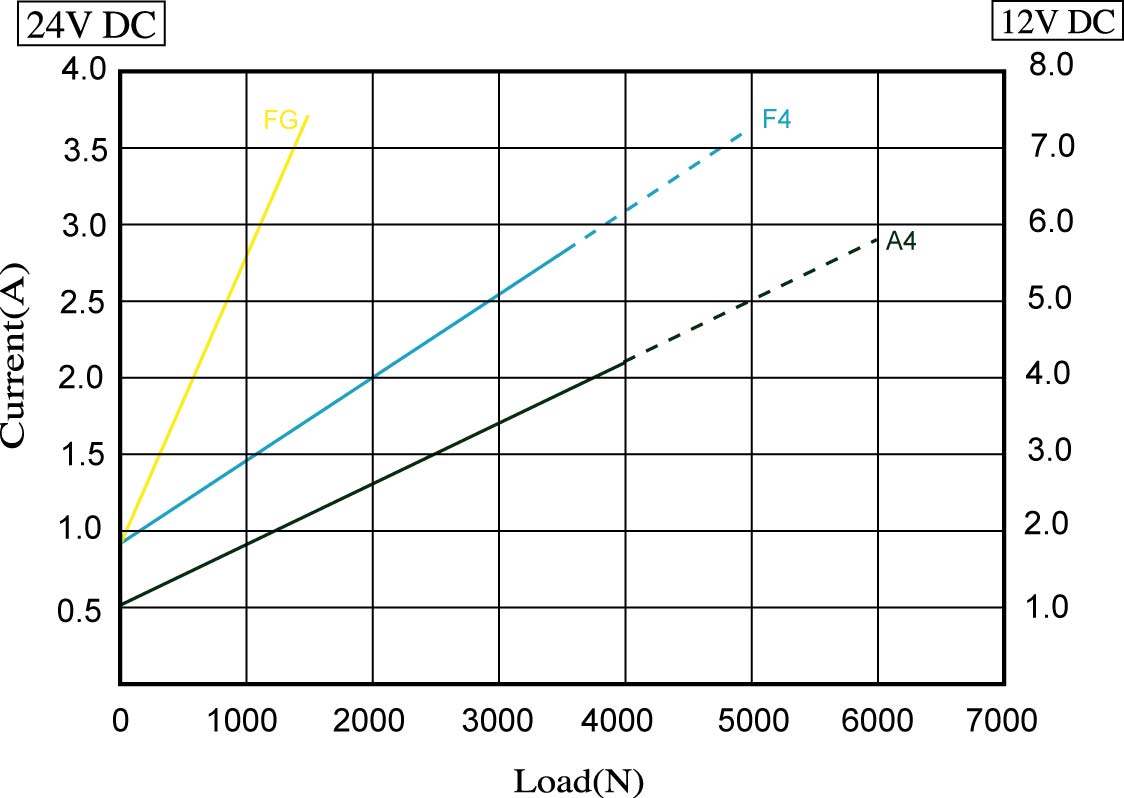

Speed vs Load Current vs Load
Actuator 01FS60 Actuator 01FS60
