Furniture Actuator
01OS62





Actuator 01OS20

Specification:
Model 01OS62
Input 12/24V DC
Max. Load 6000N(Push) / 4000N (Pull)
Standard Speed 4.2 (no load) / 2.6 (full load) (mm/sec)
Stroke 30~65mm
Duty Cycle: 10%


Preset Limit Switches
IP43



Option:
  • Motor Voltage: 12V DC
  • Quick Speed: Up to 30mm/sec (full load), 44mm/sec (no load)
  • Hall Effect Sensor
  • Push Only
  • Optional or Customized Front/Rear Mounting Bracket
  • Spiral Cable


Model No. Designations
01OS62- 24-

Voltage
24:24V DC
12:12V DC
A4

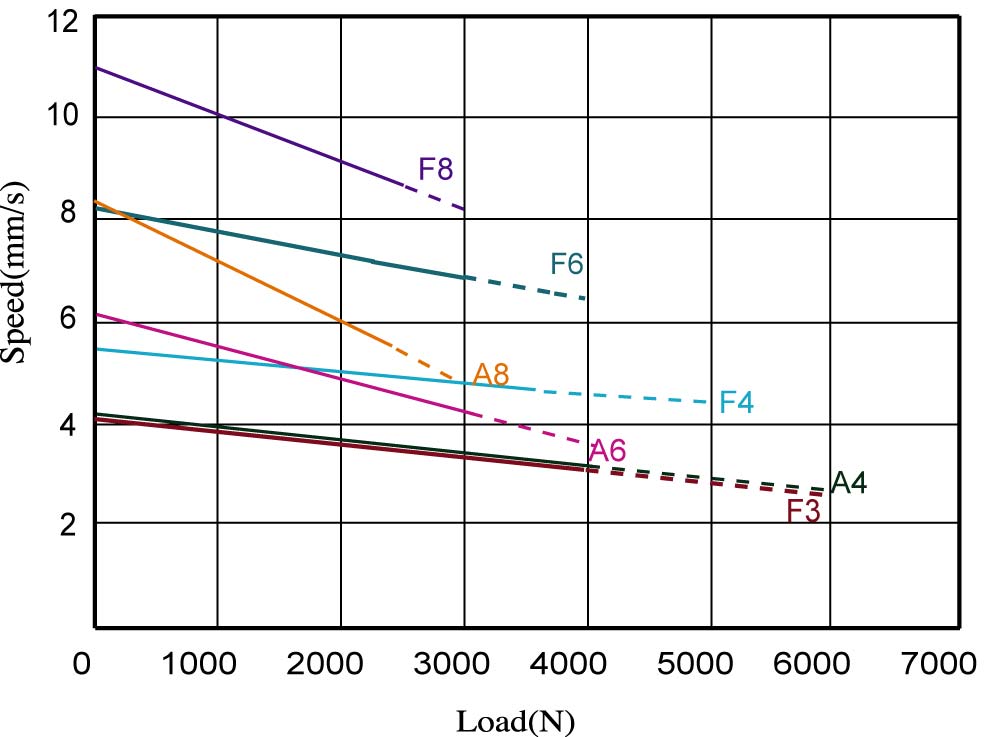

Speed V.S Load
A4
A8
310.400

A . B
A: Retracted Length
B: Extended Length

Stroke = B - A

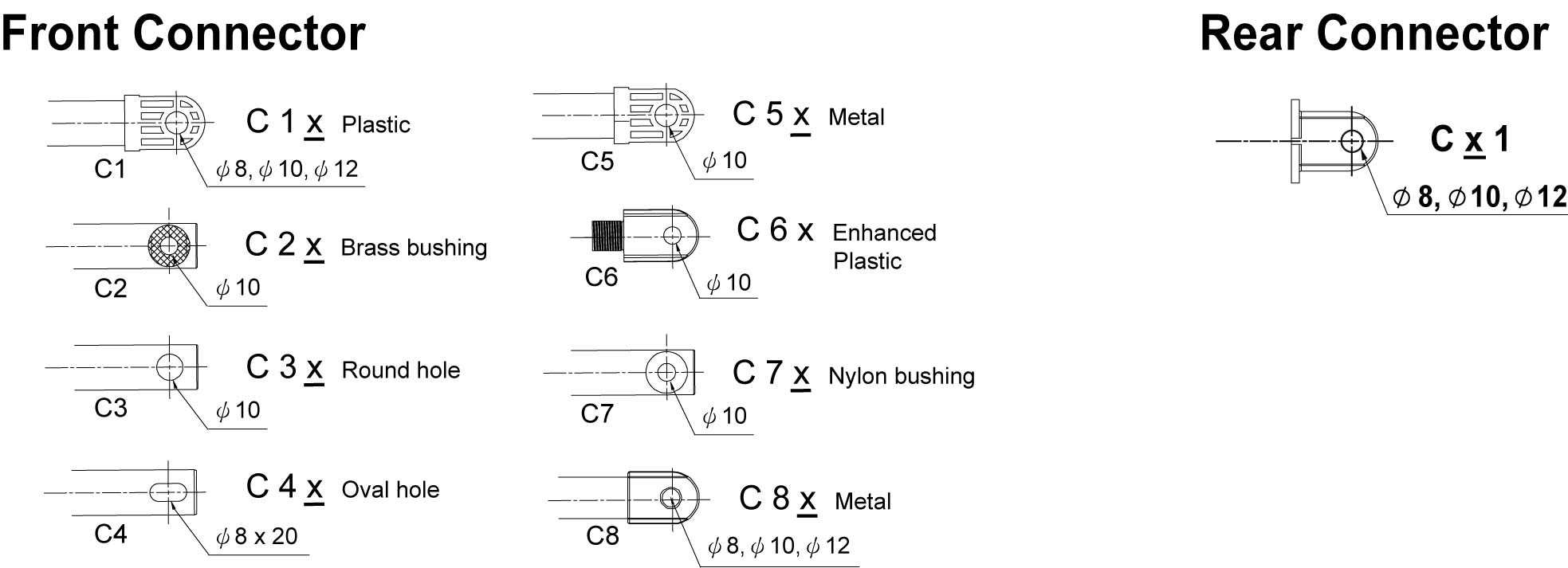

C61

6: Front connector
2: Rear connector
HS.PO

Option
HS: Hall Sensor x 1
HS2: Hall Sensor x 2
PO: Push Only

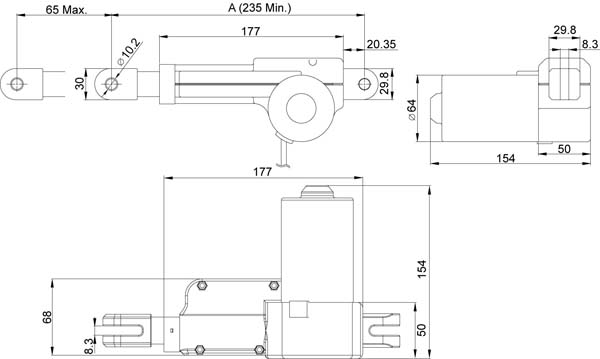

Actuator 01OS62 draw

Actuator 01OS62 draw

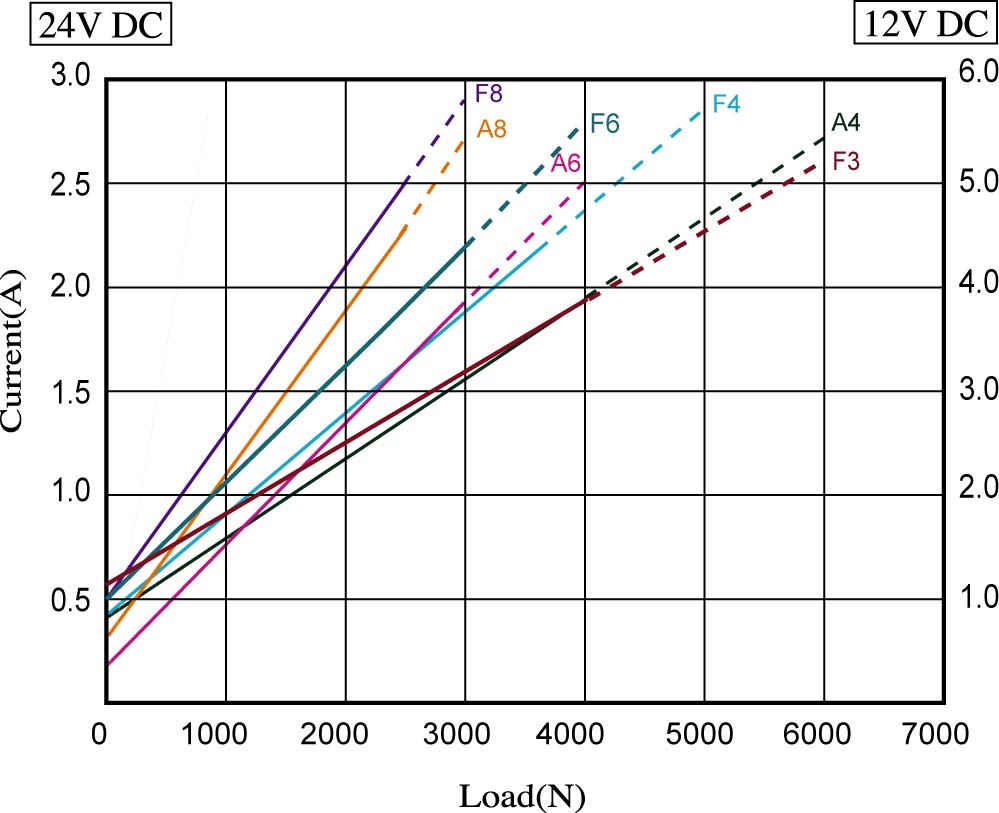

Speed vs Load Current vs Load
Actuator 01OS62 Actuator 01OS62

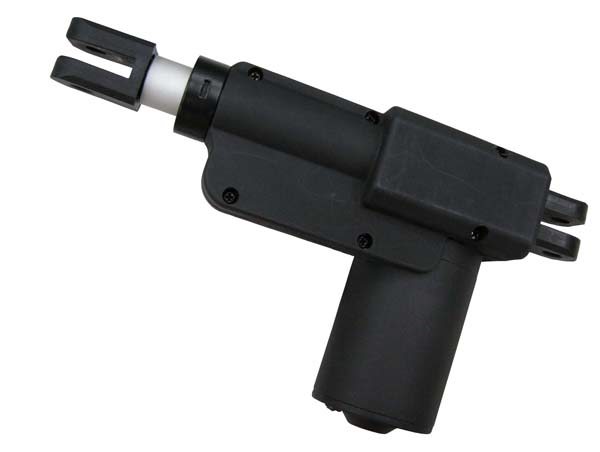

Actuator 01OS62
