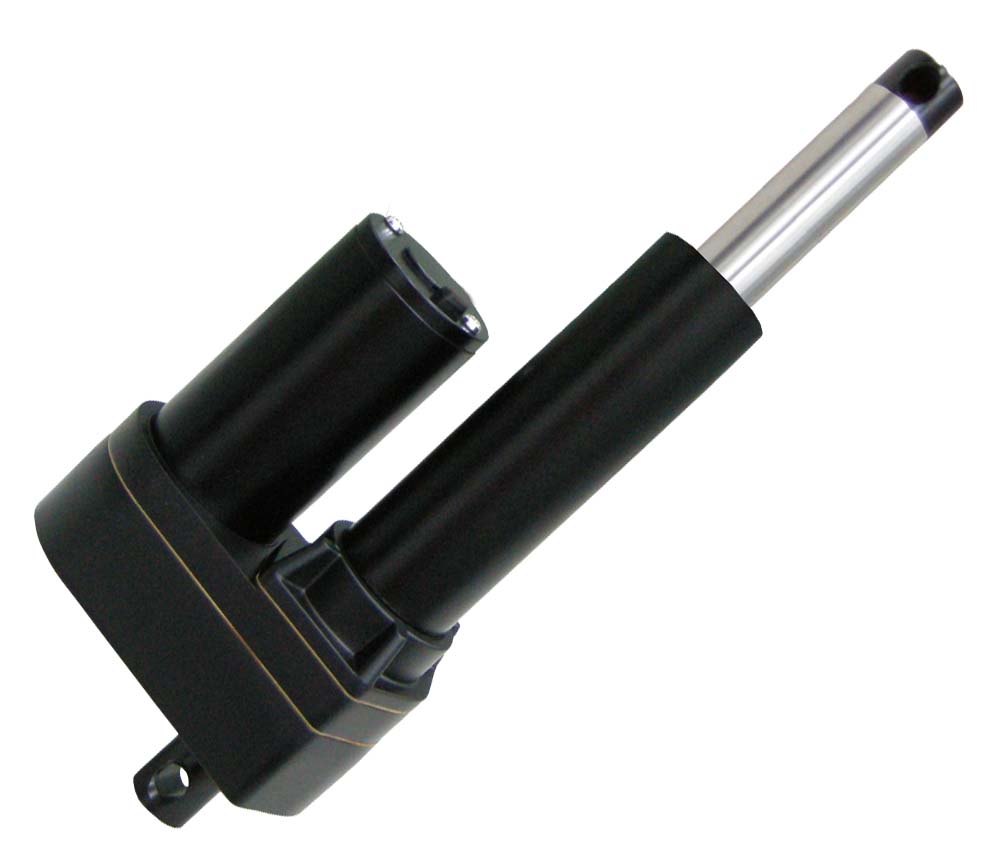

Industrial Actuator
01US10 ACME

01US10 ACME

Specification:
Model 01US10 ACME
Input 12 / 24 VDC
Max. Load 3500N
Max. Speed 34 mm/sec
Stroke Length 102, 153, 203, 305, 457, 610 mm
Gear Ratio 10:1, 20:1, 40:1
Duty Cycle 25%
Environment -25 ° C ~ 65 ° C
Static Load Capacity 4500N


Max Load: 3500N
Motor Voltage: 12/24V DC
Max. Speed Range: 8~34 mm/sec
Standard Stroke: 102/153/203/305/457/610mm
Stainless steel extension tube
Powder metallurgy gears
Overload Clutch Protection
No back driving
Duty cycle: 25%
Gear ratio: 10:1, 20:1, 40:1
Protection: IP54


Option:
  • Optional or Customized Front/Rear Mounting Bracket
  • Potentiometer
  • Adjustable limit switches
  • Manual Drive by Hand Crank
  • Protection: IP65


Model No. Designations
01US10- 24-
Voltage
12-12V DC
24-24V DC
20-
Gear Ratio
10-10:1
20-20:1
40-40:1
A-
B:Ball Screw
A:ACME
102-
Stroke
102mm
153mm
203mm
305mm
457mm
610mm
LT.POT.MD.C1....
LT:Limit Switch
POT:Potentiometer
MD:Manual Drive
IP65

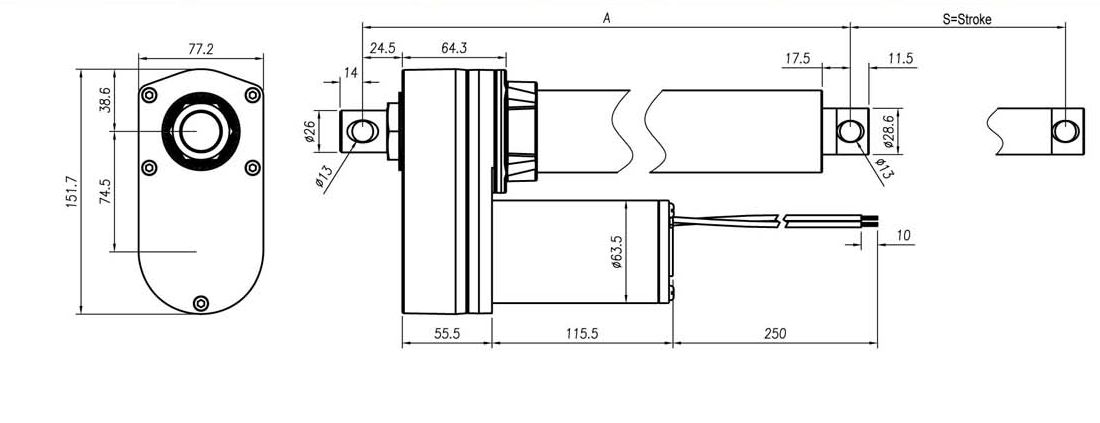

Standart:
Stroke (+-2,mm) 102 153 203 305 457 610
Retracted Lenght (A+-3,8mm) 262 313 364 465 668 821


01US10 Actuator Standart

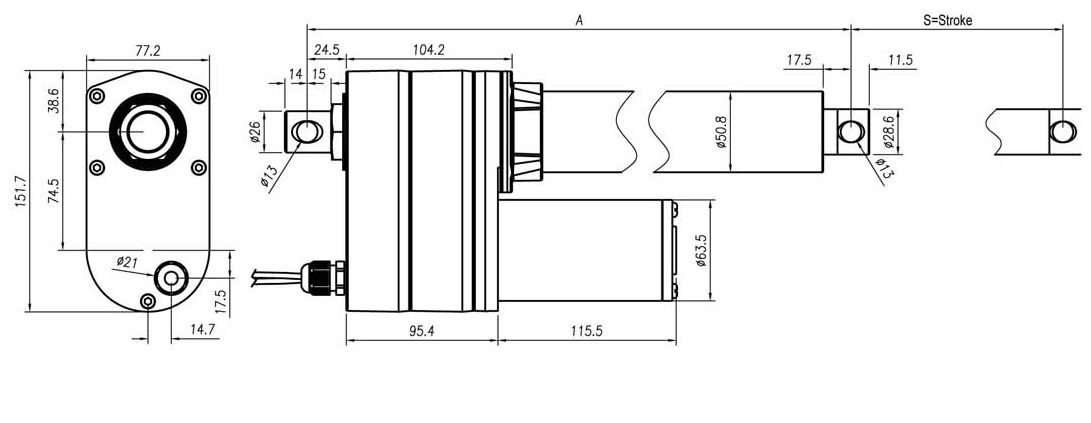

With Potentiometr (POT)
Stroke (+-2,5mm) 102 153 203 305 457 610
Retracted Lenght (A+-3,8mm) 302 353 404 505 708 861


01US10 Actuator With Potentiometr (POT)

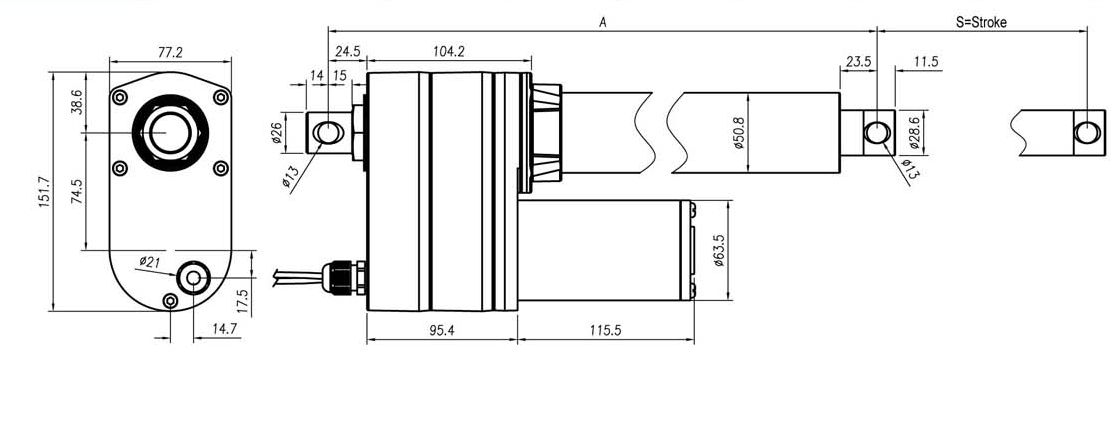

With Limit Switches or Limit Switches+POT
Stroke (+-2,5mm) 102 153 203 305 457 610
Retracted Lenght (A+-5mm) 359 410 461 562 765 918


01US10 Actuator With Limit Switches or Limit Switches+POT

Gear Ratio Max. Push (N) Max/ Pull (N) Speed at No Load (mm/s) Speed at Full Load (mm/s) Stroke (mm) Voltage (VDC)
10:1 1500 1500 33,5 26,7 102-610 12/24
20:1 2500 2500 17 14,3 102-610 12/24
30:1 3500 3500 8,4 7,4 102-610 12/24

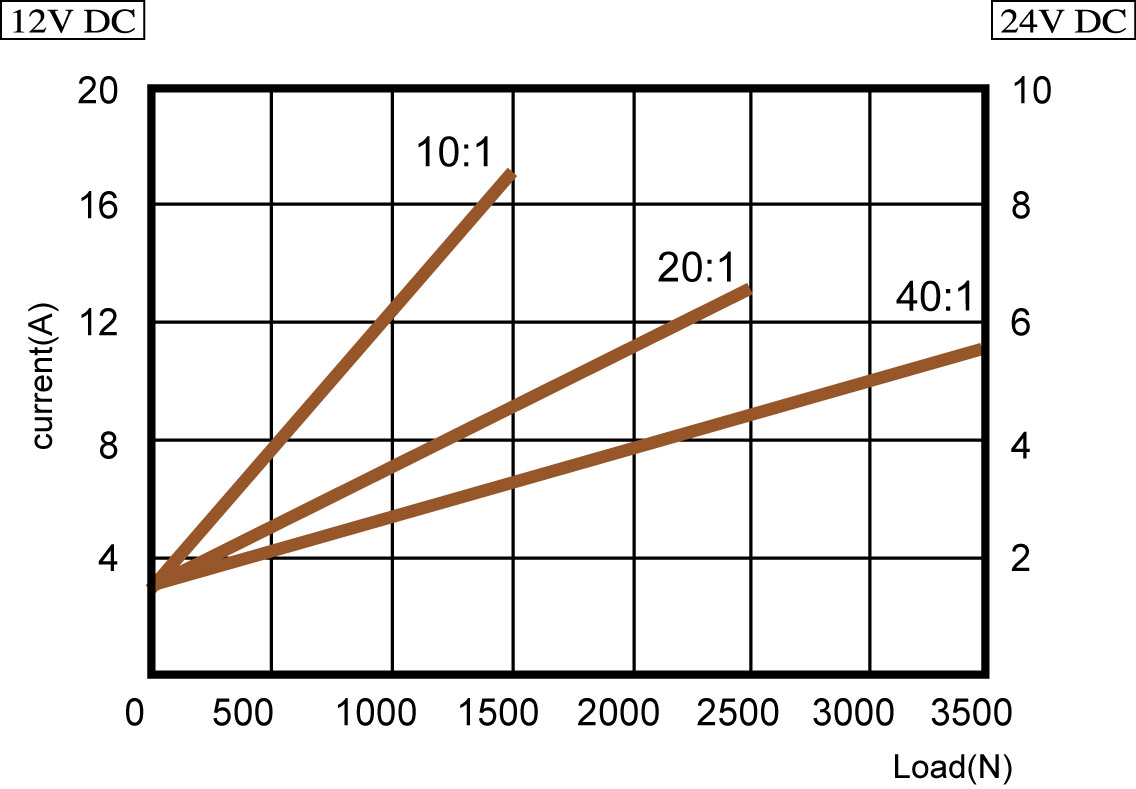

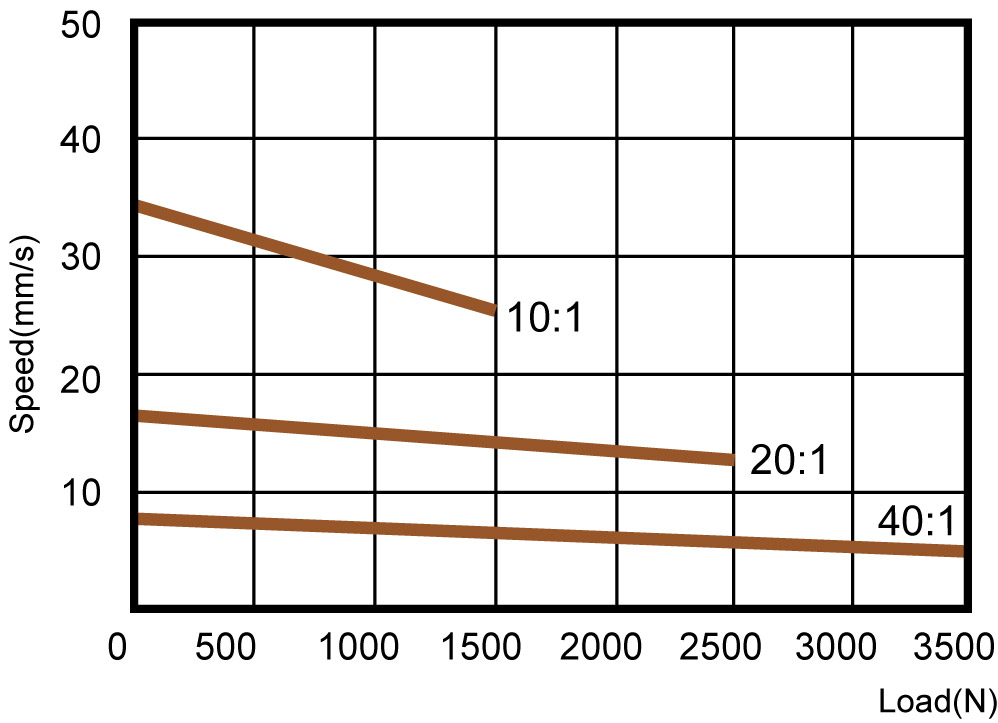

Speed vs Load Current vs Load
01US10 ACME 01US10 ACME
