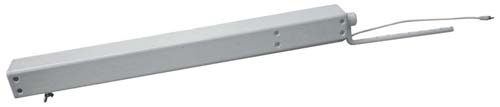

Swing gate opener
01AQ230




The most economic facility for your swing gate

Swing gate opener  01AQ230

Specification:
Model 01AQ230
Input 12VDC
Average Operating Current 1.0-2.0A
Gate Length 1.75M (5.8Feet) ? 2 Max.
Gate Weight 110Kgs (242Lbs) x 2 Max
Duty Cycle 20%
Overload Protection Current Detection
Stroke Length 430mm
Release Function Manual
Approx. Weight 5.6Kgs
Approx. Dimension 590L x 62W x 62H mm


Control Box 01AQ-200S
Input 110/230V AC; 60/50HZ
Output 12DC / 72W Max
RF Remote 433.92MHz w/Rolling Codes
Weight 2,6 kg
Dimensions 299L x 200W x 120H mm
Recharging Functions Built In (12V DC Battery not included)

RF Remote Control with Rolling Codes
Recharging Function for Backup Battery
Manual Quick Release

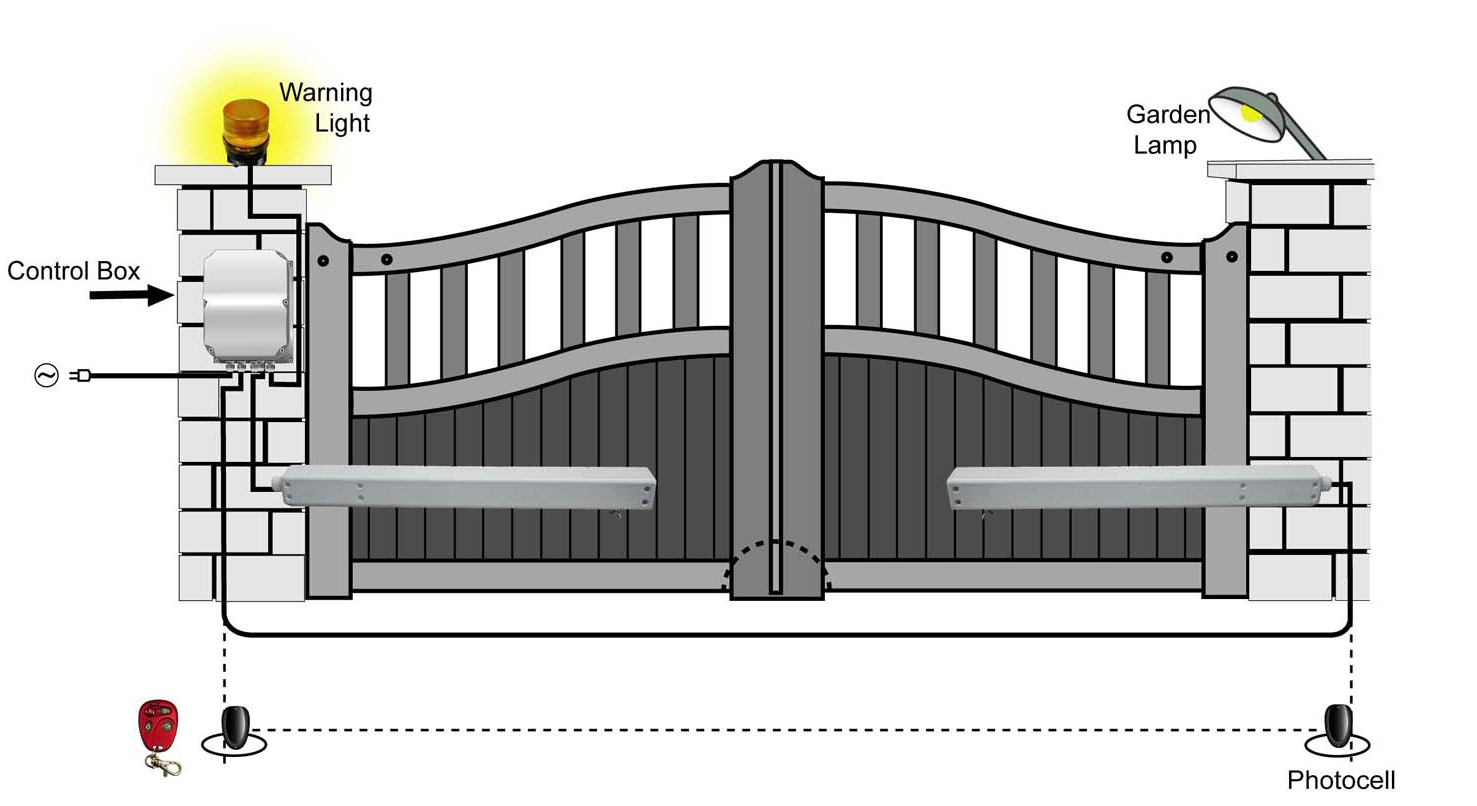

Applicable for both Single and Dual Gates
Garden Lamp Function
IP44

Swing gate opener  01AQ-230
Swing gate opener  01AQ-230
