Industrial Actuator 01KS3Q




01KS3Q

Driving up to 8 actuators at the same time with windows control

Specification:
Model 01KS3Q
Input 12 / 24VDC
Max. Load 800N
Max. Speed 6 mm/sec
Stroke Length 50, 100, 150, 200, 250, 300 mm
Gear Ratio 20:1, 30:1
Mounting Clevis to Clevis Mounting (different angles available)
Duty Cycle 25%
Environment -25 ° C ~ 65 ° C


FEATURE:
Max. Load: 1200N
Motor Voltage: 12/24V DC
Max. Speed Range: 7~45mm/sec
Standard Stroke: 50/100/150/200/250/300mm
Compact Design
Aluminum Extension & Outer Tubes
Preset Limit Switches
Duty Cycle: 25%
IP54


Option:
  • Hall Effect Sensor
  • Potentiometer
  • Optional or Customized Front Mounting Bracket
  • Clamp
  • IP65


Model No. Designations
01KS3- 12-
Voltage
12-12 VDC
24-24 VDC
Q-
Quiet Version
20-
Gear Ratio
20-20:1
30-30:1
200-
Stroke (mm)
50 mm
100 mm
150 mm
200 mm
250 mm
300 mm
HS.IP65
Option
HS: Hall Effect Sensor
HS2: Dual Hall Effect Sensors
POT: Potentiometer Sensor
IP65
C2x,C3X:Front Connector

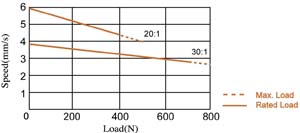

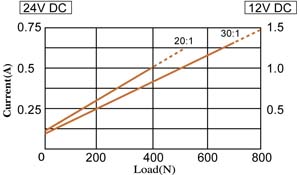

Speed vs Load Current vs Load
01KS3Q 01KS3Q

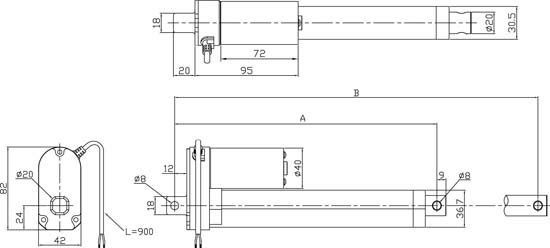

Actuator 01KS3 Potentiometer

Standart:
Stroke (mm) 50 100 150 200 250 300
Retracted Lenght (mm) 158 209 260 311 362 413
Extended Lenght (mm) 208 309 410 511 612 713

Actuator 01KS3 Potentiometer

Potentiometer:
Stroke (mm) 50 100 150 200 250 300
Retracted Lenght (mm) 195 246 297 348 399 450
Extended Lenght (mm) 245 346 447 548 649 750

Actuator 01KS3 Potentiometer
Potentiometer
Stroke (mm) Resistance Ohm
50
100
150
200
250
300
0.3-9.3K
0.3-9.7K
03.-8.6K
0.3-9.6K
0.3-9.3K
0.3-9.3K
Remark: tolerance +-0.3K


Hall Effect Sensor:
Stroke (mm) 50 100 150 200 250 300
Retracted Lenght (mm) 158 209 260 311 362 413
Extended Lenght (mm) 208 309 410 511 612 713

Hall Effect Sensor
Gear Ratio Resolution (Pulses/mm)
5:1
10:1
20:1
30:1
40:1
2.3
3.6
6.9
10.6
14.3

Actuator 01KS3 Potentiometer
