LINEAR ACTUATOR
01UP5 Ball Screw series

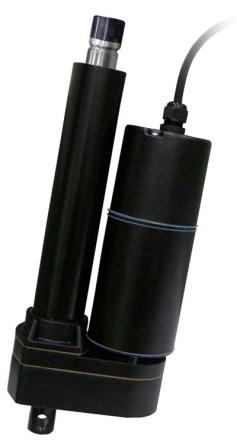

Actuator 01UP5B

Specification:
Model 01UP5 Ball Screw
Input 100/115/230 AC Motor
Max. Load 7000N
Max. Speed 28 mm/sec
Stroke Length 102, 153, 203, 305, 457, 610 mm
Gear Ratio 5:1,10:1, 20:1, 30:1, 40:1
Duty cycle 25%
Environment -26 ° C ~ 65 ° C
Static Load Capacity 13600N


Max Load: 7000N
Motor Voltage: 100/115/230V AC
Max. Speed : 56mm/sec
Standard Stroke: 102/153/203/305/457/610mm
Powder Metallurgy Gears
Aluminum Alloy Housing
Overload Protection by Clutch
Self-Locking
Thermal Overload Protection in the Motor
Steel Extension Tube
Working Temperature: -26 ° C to +65 ° C
Duty cycle: 25%
Gear Ratio: 5:1, 10:1, 20:1, 30:1, 40:1
Protection: IP54


Option:
  • Potentiometer
  • Adjustable limit switches
  • Optional or Customized Front/Rear Mounting Bracket
  • Protection: IP65


Model No. Designations
01UP5- 230-
Voltage
230V AC / 50Hz
115 V AC / 60Hz
100 V AC / 60Hz
20-
Gear Ratio
5-5:1
10-10:1
20-20:1
30-30:1
40-40:1
B-
B:ACME
A:Ball Screw
610
Stroke
102mm
153mm
.
.
(mm)
LT.POT.IP65
LT: Limit Switch
POT: Potentiometer
Protection IP65


Stroke 102 153 203 305 457 610
Retracted Length 302 353 404 506 735 888


Speed vs Load

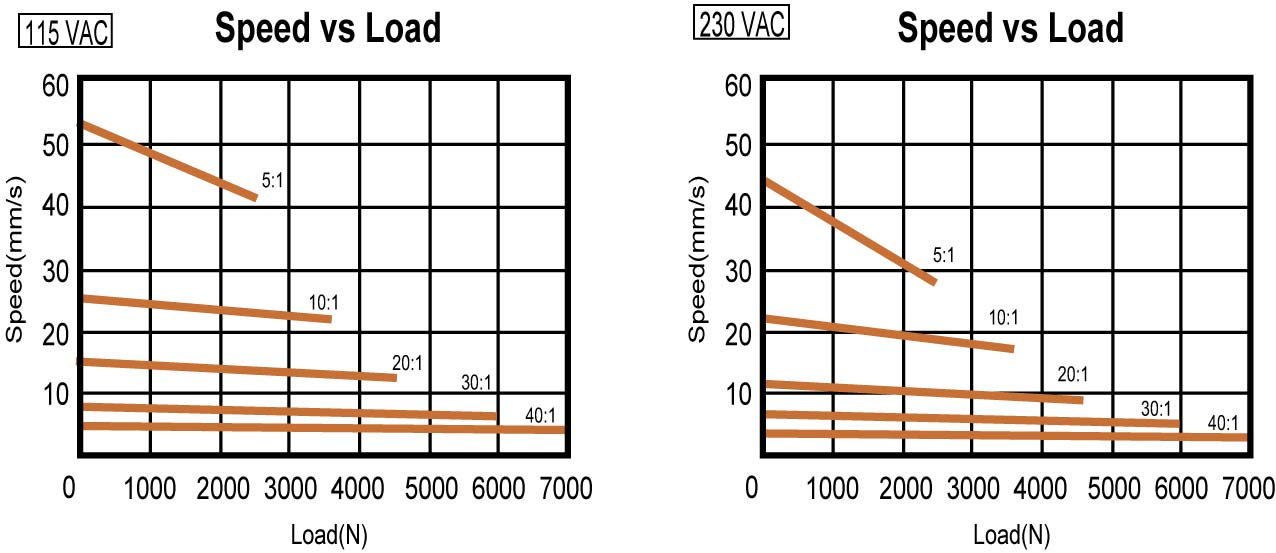

Actuator 01UP5B Speed vs Load
Current vs Load

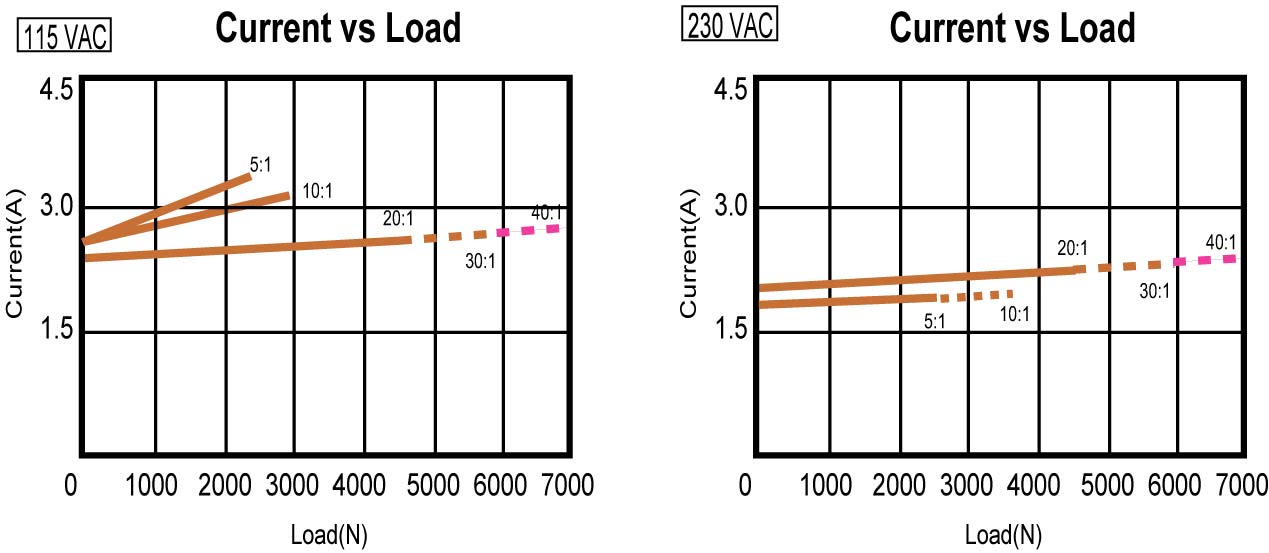

Actuator 01UP5B Current vs Load


Standart:
Stroke (+-2,5mm) 102 153 203 305 457 610
Retracted Length (+-3,8mm) 302 353 404 506 735 888

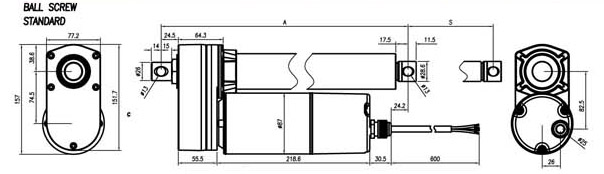

Actuator 01UP5B Standart -  Draw

Potentiometer
Stroke (+-2,5mm) 102 153 203 305 457 610
Retracted Length (+-3,8mm) 342 393 444 546 775 928

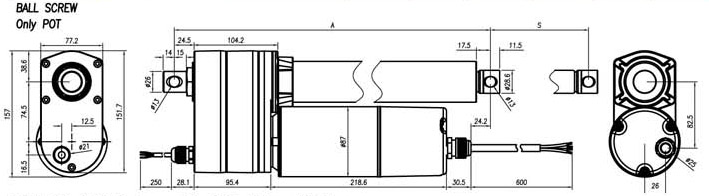

Actuator 01UP5B ñ Potentiometer -  Draw

With Limit Switches and Potentiometer
Stroke (+-2,5mm) 102 153 203 305 457 610
Retracted Length (+-5mm) 399 450 501 680 832 985

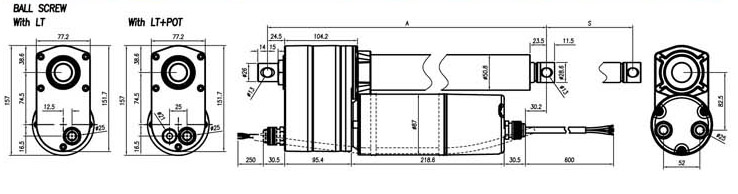

Actuator 01UP5B With Limit Switches and Potentiometer -  Draw
