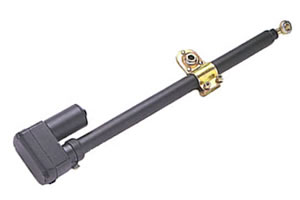

Regular actuator 01RS
The most economic way for motorization

Specification:

Model	01RS
Input	36VDC
Load Capacity	3000N
Strock Length	300,450,600mm
Drive	ACME
Duty Cycle	20%
Temperature	-26 ° C ~ 65 ° C
Limit Switch	Adjustable
Static Load	4500N
Full Load Speed	4,2 mm/sec

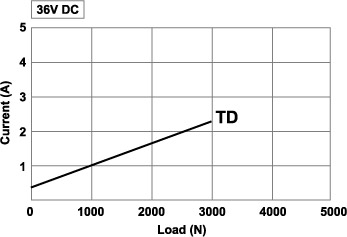

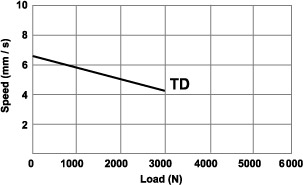

Speed vs Load	Current vs Load

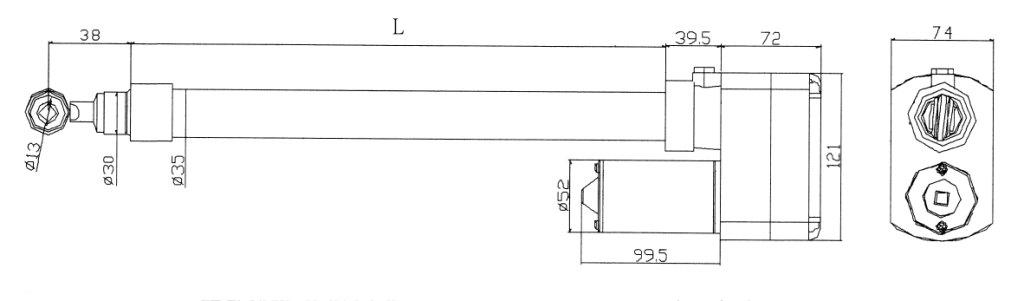

Stroke	15,24	20,32	25,4	30,48	45,72	60,96
Length L(mm)	240	290	340	390	540	690
