Furniture Actuator
01DS70

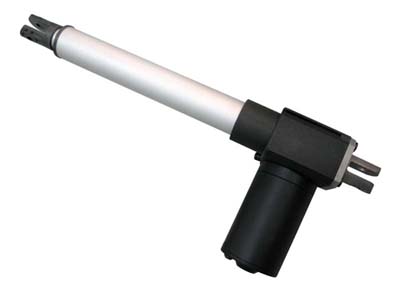

Actuator 01DS70

Specification:
Model 01DS70
Input 12/24 V DC
Stroke 50~300 mm (Customized Stroke Available)
Max. Load 7000N(Push) / 4500N (pull)
Max. Speed 4.2 (no load) / 2.6 (full load) (mm/sec)
Duty Cycle: 10%


Preset Limit Switches
IP43
Motor Voltage: 24V DC/ Motor Voltage: 12V DC
Optional or Customized Front/Rear Mounting Bracket



Option:
  • Motor Voltage: 12V DC
  • Quick Speed: Up to 30mm/sec (full load) / 44mm/sec (no load)
  • Hall Effect Sensor
  • Push Only
  • Safety Nut
  • Manual Drive by Hand Crank
  • Optional or Customized Front/Rear Mounting Bracket
  • Spiral Cable


Model No. Designations
01DS70- 24-

Voltage
12: 12 V DC
24: 24 V DC
A4

ACME
Speed v.s. Load A4
A8
228.278

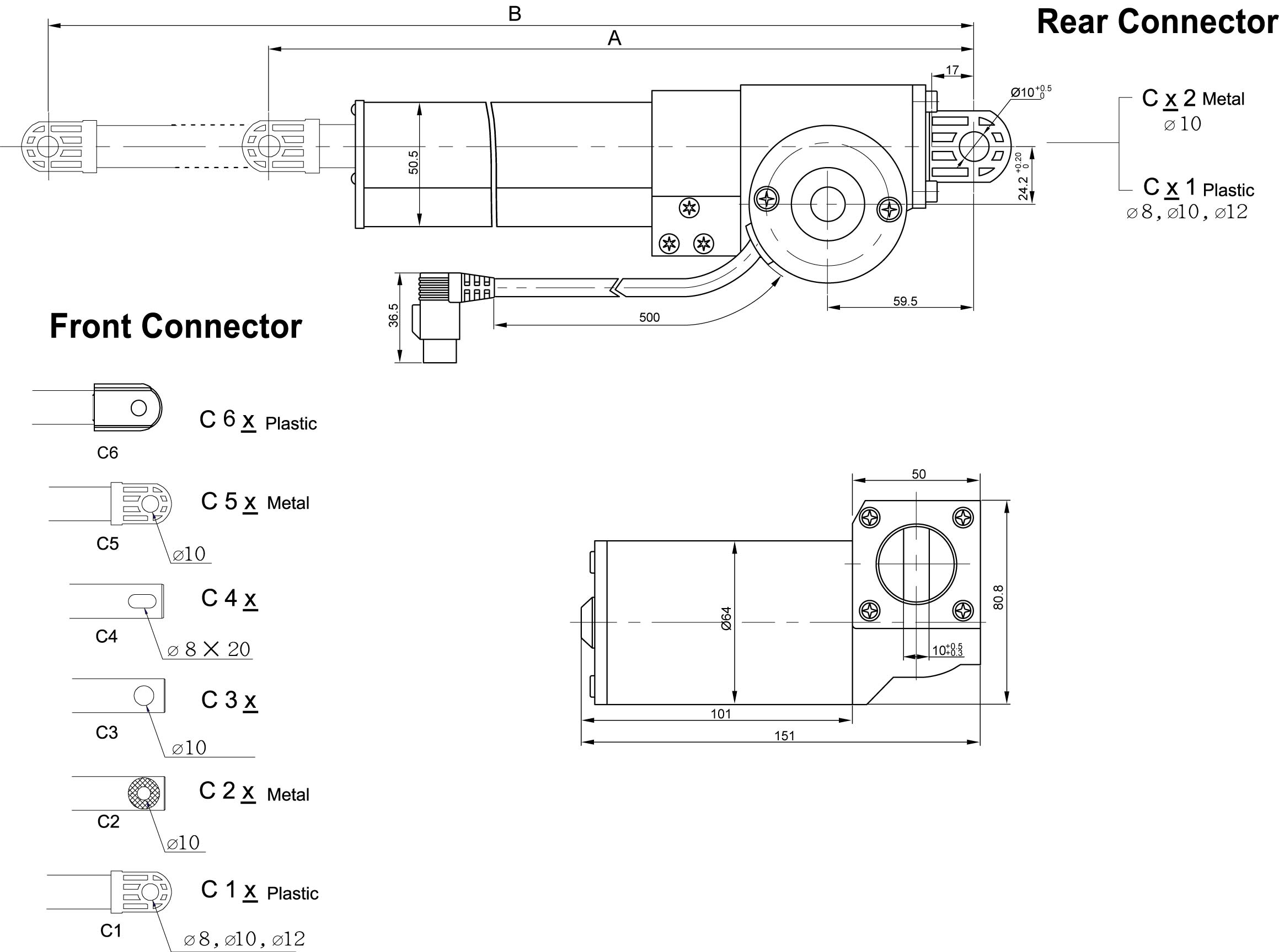

A . B
A: Retracted Length
B: Extended Length

Stroke = B - A
C 1 2

1: Front connector
2: Rear connector
HS.PO.MD

Option
HS: Hall Sensor x 1
HS2: Hall Sensor x 2
PO: Push Only

SN: Safety Nut
MD: Manual Drive



Stroke 50 100 150 200 250 300
Retracted Length 228 278 338 388 448 498
Extended Length 278 378 488 588 698 798 (לל)

PS. Other stroke available


Actuator 01DS70 קונעוז

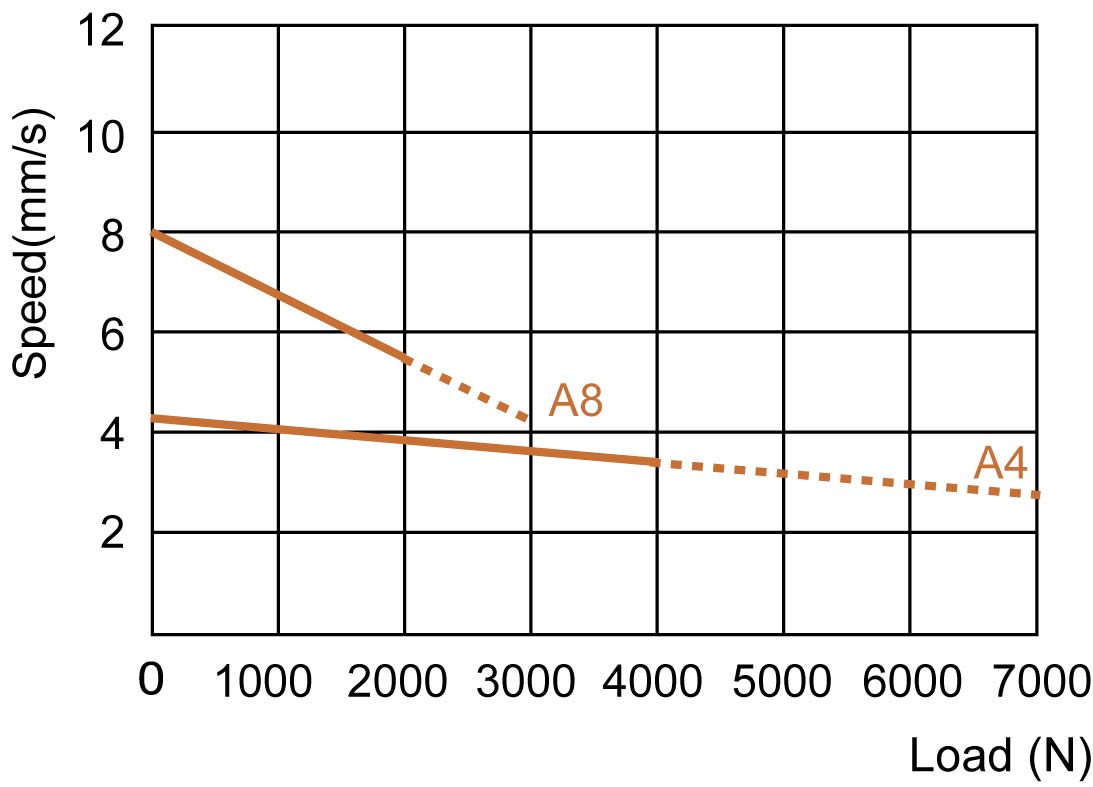

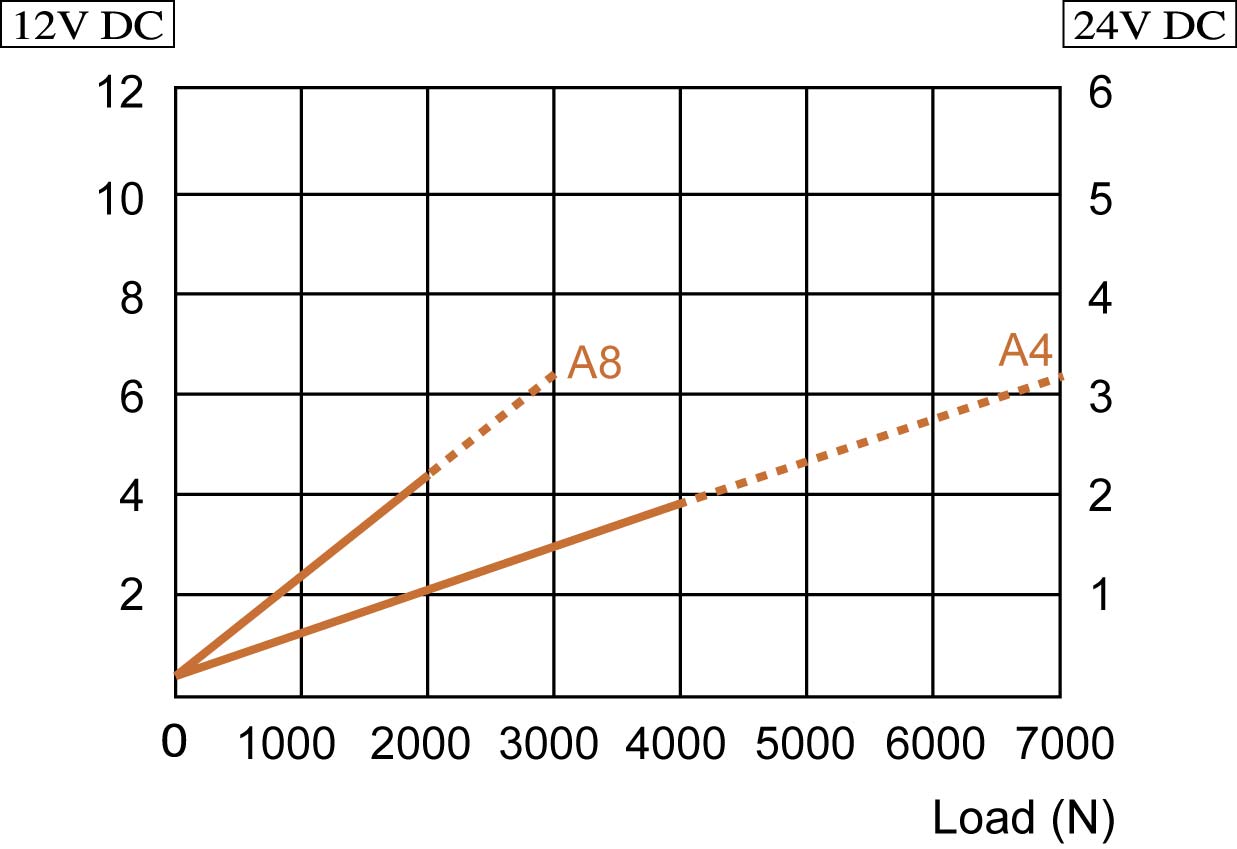

Speed vs Load Current vs Load
Actuator 01DS70 Actuator 01DS70
