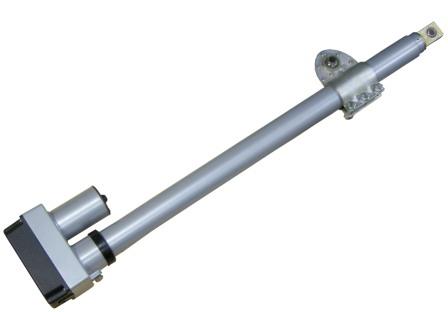

Economic heavy duty actuator 01GC+
The most economic way for motorization




ECONOMIC HEAVY DUTY ACTUATOR 01GC+

Specification:
Model 01GC+
Input 24/36 VDC
Max. Load 4500N
Stroke Length 450, 600, 900 mm
Drive ACME
Duty Cycle 10%
Environment -26 ° C ~ 65 ° C
Limit Switch Adjustable
Reed Switch Sensor
Static Load Capacity 9000N
Full Load Speed 3,8 mm/sec


ACME Screw Type
Max. Load: 4500N
Motor Voltage: 24/36V DC
Max. Speed: 4.0mm/sec
Standard Stroke: 450/600/900mm
Adjustable Limit Switches
Reed Switch Sensor
Duty Cycle: 10%

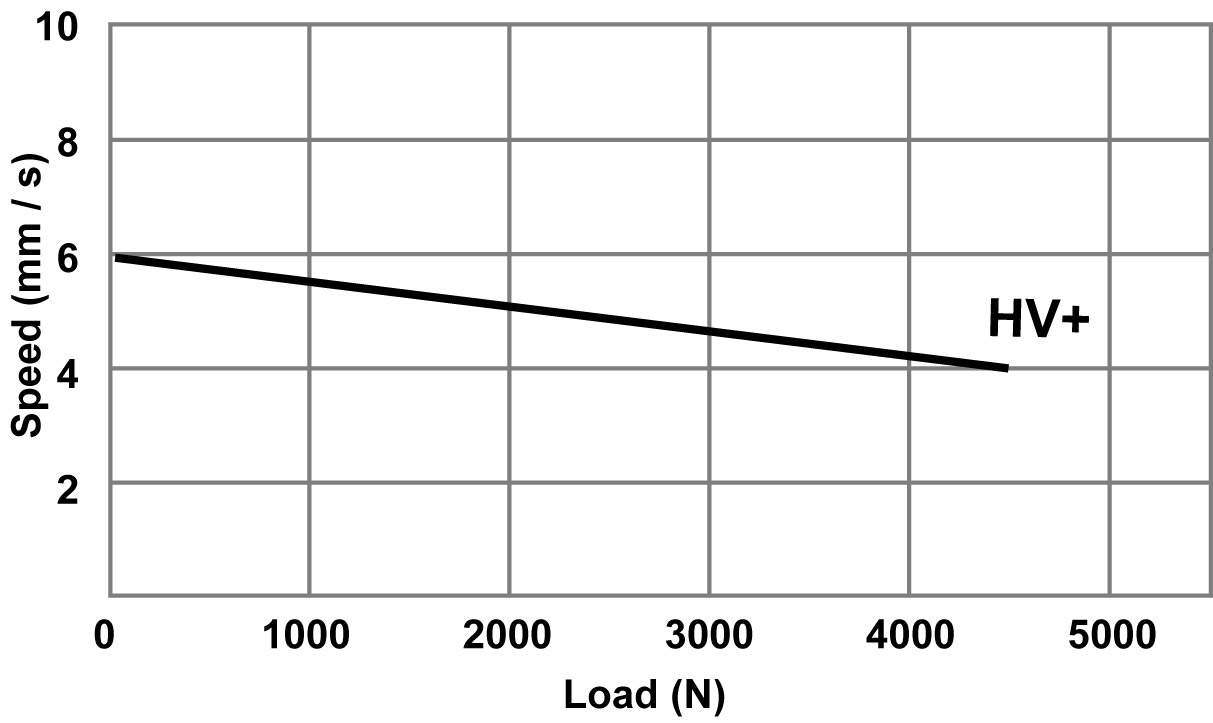

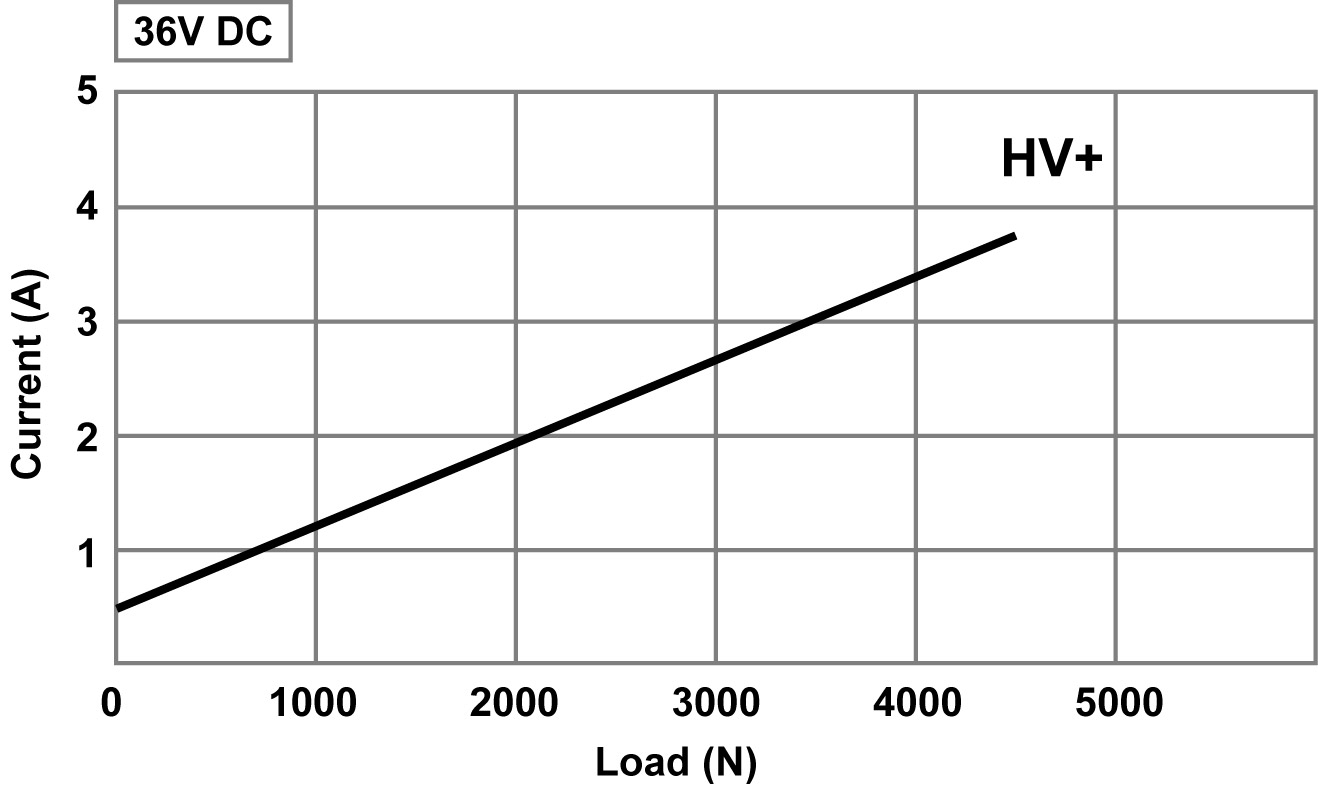

Speed vs Load Current vs Load
ECONOMIC HEAVY DUTY ACTUATOR 01GC+ Speed vs Load ECONOMIC HEAVY DUTY ACTUATOR 01GC+ Current vs Load


Stroke 45,7260,9691,34
Length L(mm)5507001000

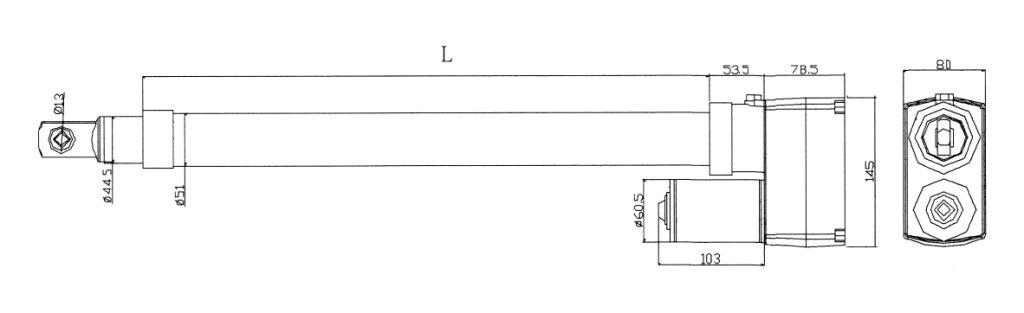

ECONOMIC HEAVY DUTY ACTUATOR 01GC+  Draw
