Swing gate opener
01AQ570

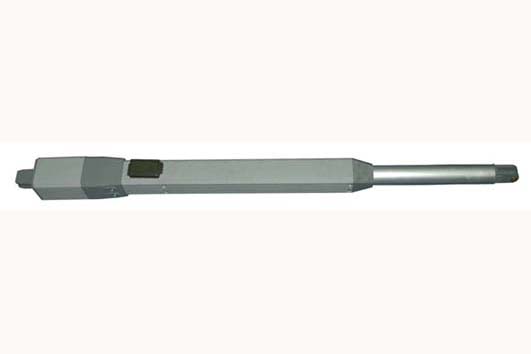

Swing gate opener  01AQ570

Specification:
Model 01AQ570
Input 12VDC
Average Operating Current 1.0-2.5A
Gate Length 3.6M (12Feet) 2 Max.
Gate Weight 300Kgs (660Lbs) x 2 Max
Duty Cycle 20%
Speed of Actuator 20mm / sec (No Load) 16 mm / sec(at 65 Kgs Load)
Stroke Length 365mm
Release Function By Key
Approx. Weight 6.6Kgs
Approx. Dimension 930L x 215W x 205H mm
Overload Protection Clutch+Current Detection


Control Box 01AQ-200S
Input 110/230V AC; 60/50HZ
RF Remote 433.92MHz w/Rolling Codes
Weight 2,6 kg
Dimensions 299L x 200W x 120H mm
Recharging Functions Built In (12V DC Battery not included)

RF Remote Control with Rolling Codes
Recharging Function for Backup Battery

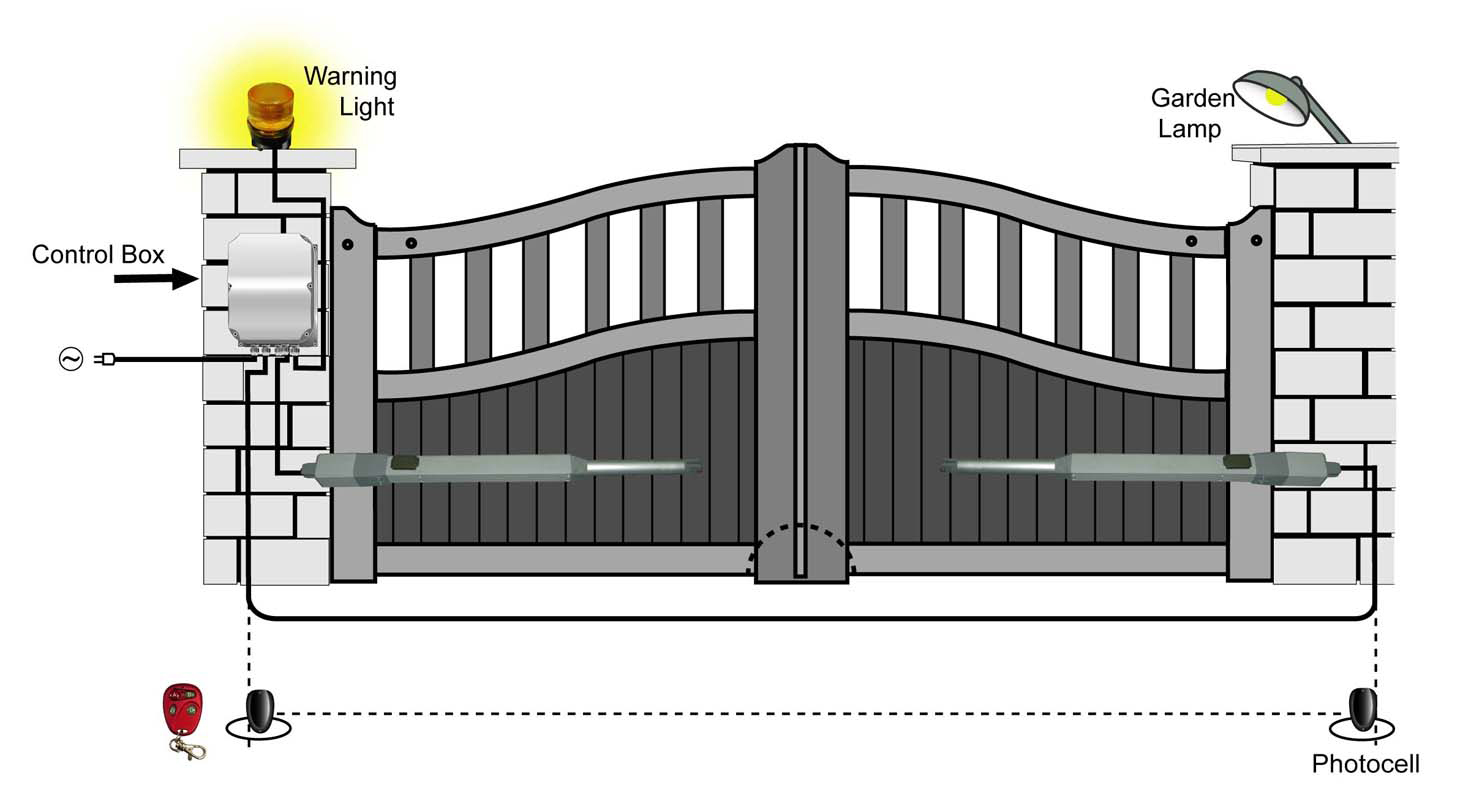

Applicable for both Single and Dual Gates
Key Quick Release
Garden Lamp Function
Overload Protection by Clutch+Current Detection
IP44
