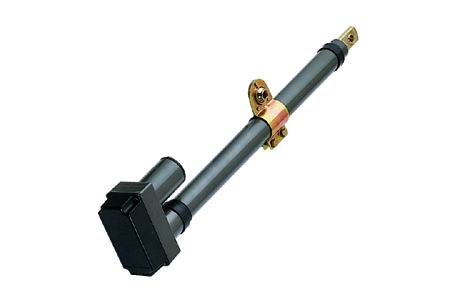

Heavy duty actuator 01GC
The most economic way for motorization

Specification:

Model	Heavy duty actuator 01GC
Input	36VDC (24V DC available)
Load Capacity	5500N
Strock Length	450, 600, 900 mm
Drive	ACME
Full Load Speed	3.8 mm/sec
Duty Cycle	20%
Temperature	-26 ° C ~ 65 ° C
Limit Switch	Adjustable
Static Load	9000N

Corrosion Resistant

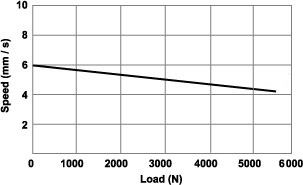

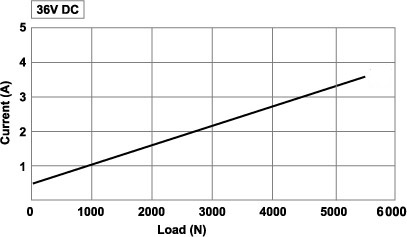

Speed vs Load	Current vs Load

Õîä	45,72	60,96	91,34
Äëèíà L(ìì)	550	700	1000
