Control & Accessory

Tel. +49 (0)    aktuator@aktuator.org

Handsets

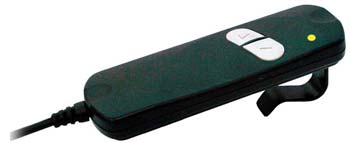

01GP/01GV
Handset 01GP/GV HA is suitable for standard controls.
HB works with auxiliary Transformer Box 01RAR or 01RAW only controlling via current.
2 buttons.

Option:
Safety Key

Dimensions :

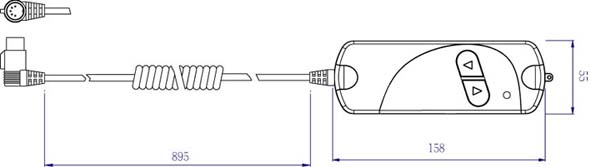

Dimensions of  01GP/GV

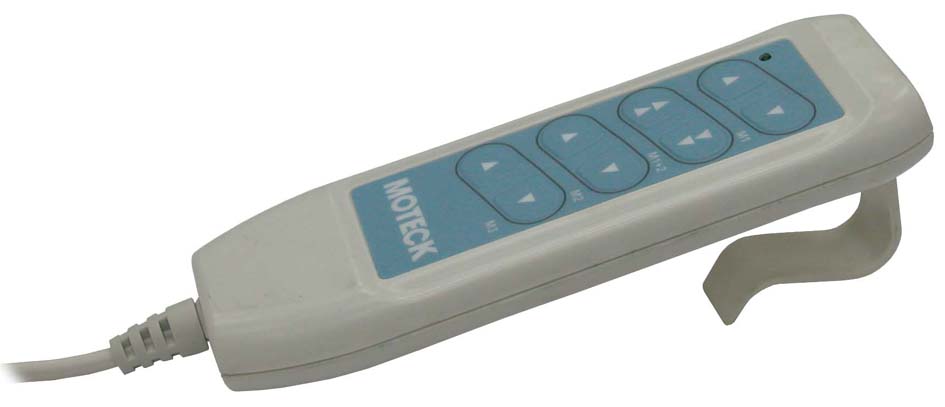

01GX
Handset 01GX The series include 01GX2, 01GX6, 01GX8 and 01GX10
with combinations of 2 to 10 buttons.

Dimensions :

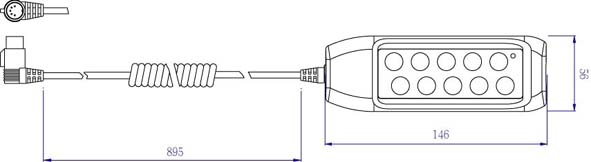

Dimensions of  01GX

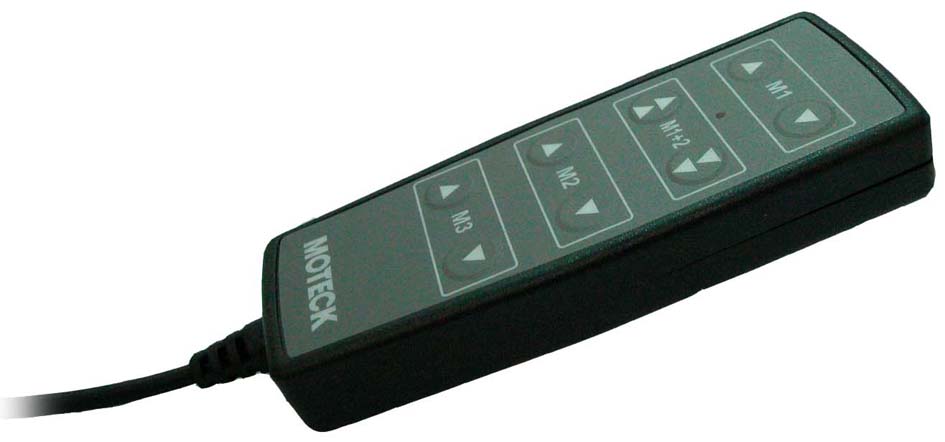

01GS
Handset 01GS The series include 01GS2, 01GS6 and 01GS8
with combinations of 2 to 8 buttons.

Dimensions :

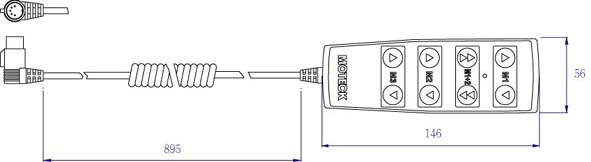

Dimensions of  01GS

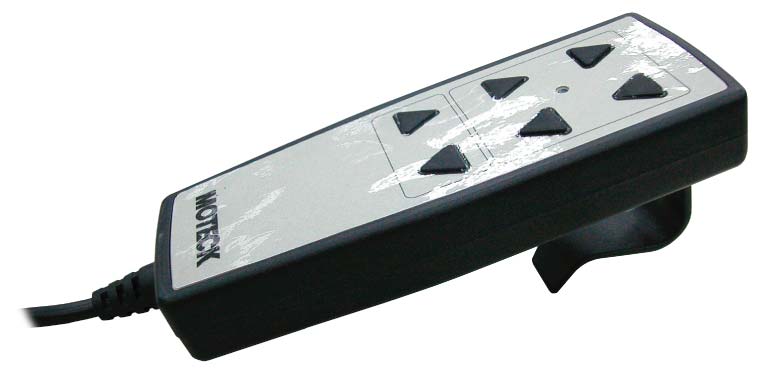

01GW
Handset 01GW The series include 01GW2 and 01GW6
with combinations of 2 to 6 buttons.

Dimensions :

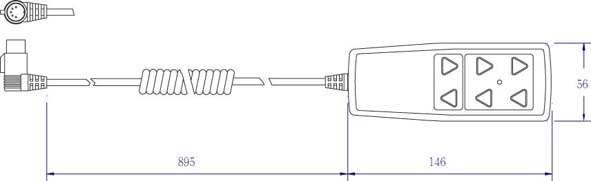

Dimensions of  01GW

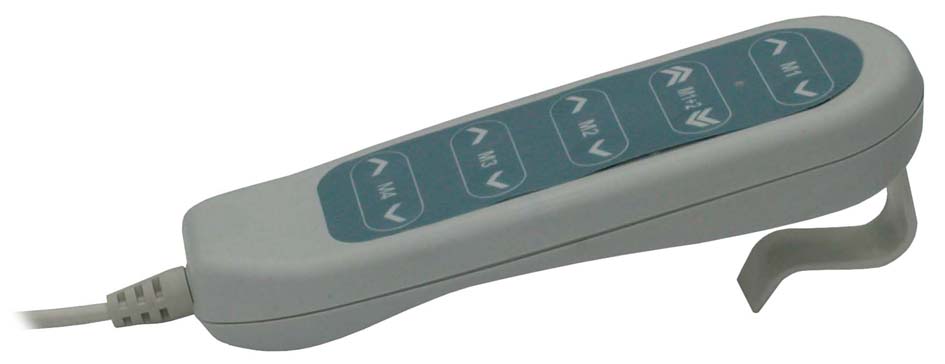

01GD
Handset 01GD The series include 01GD2, 01GD6, 01GD8 and 01GD10
with combinations of 2 to 10 buttons.
IP54

Option:
Safety Key

Dimensions :

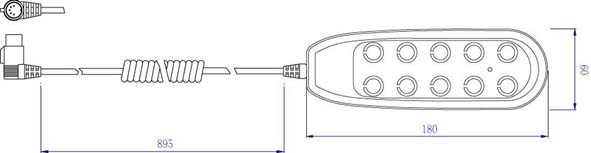

Dimensions of  01GD

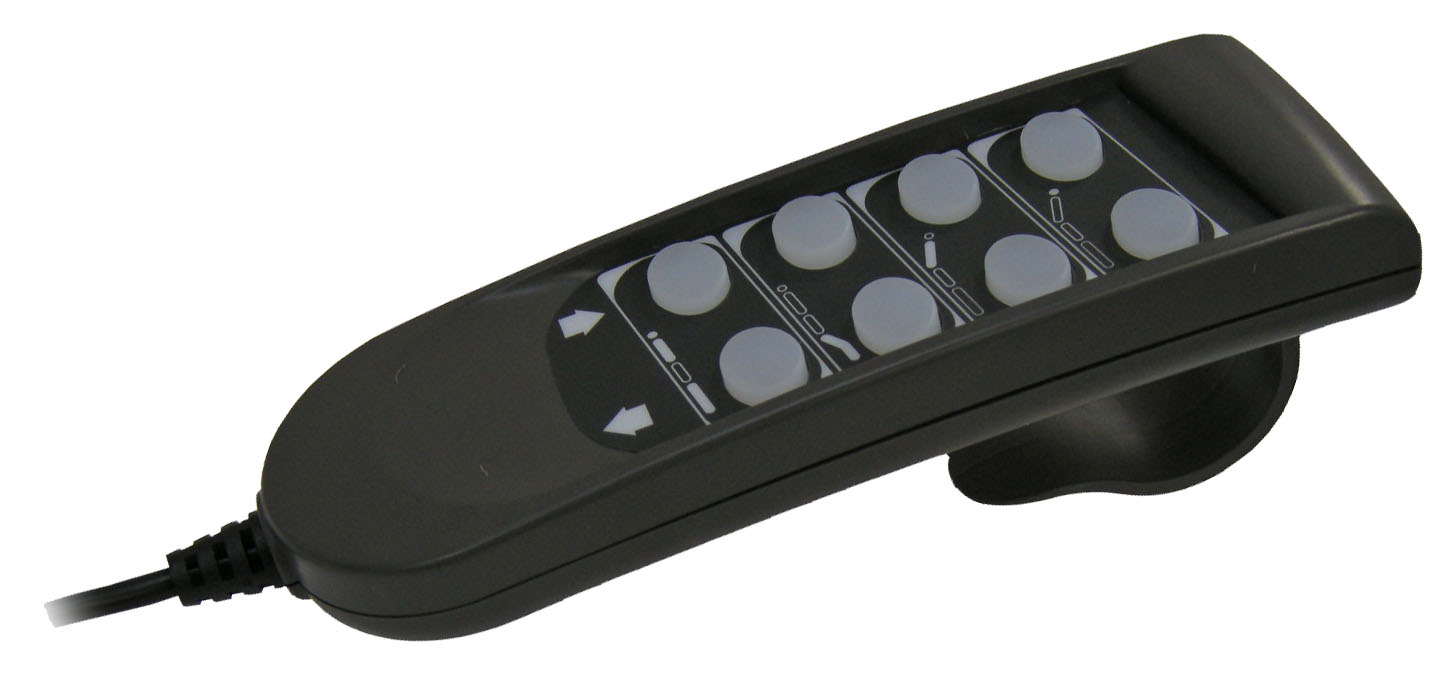

01G3D
Handset 01G3D The series include 01G3D2, 01G3D6 and 01G3D8 with combinations of 2 to 8 buttons
IP54

Option:
IP 66

Dimensions :

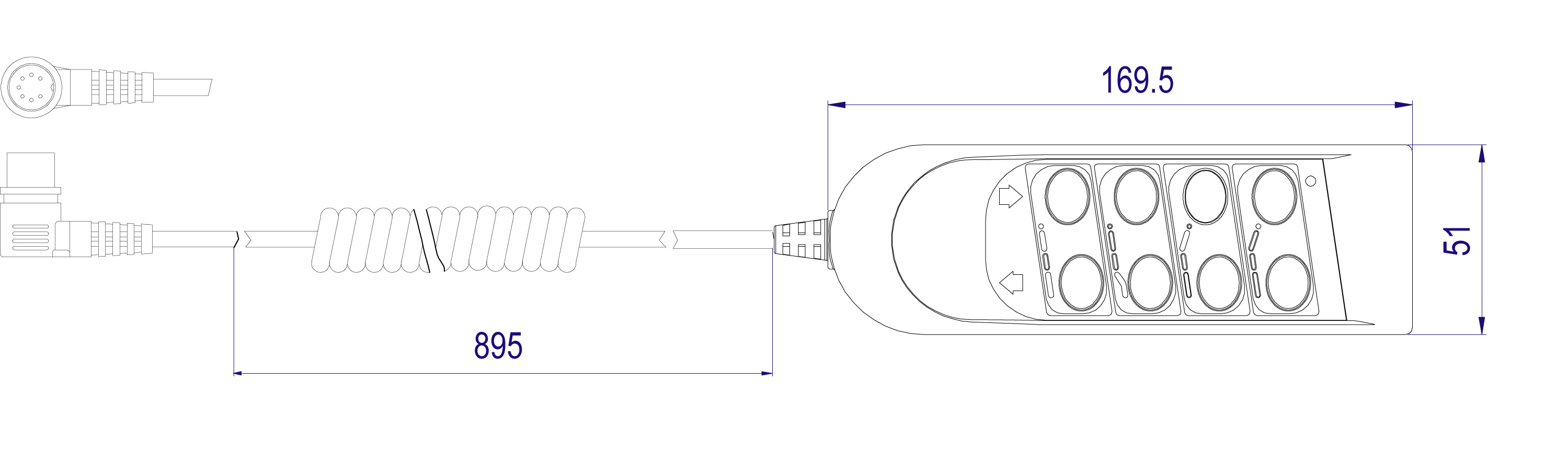

Dimensions of  01G3D

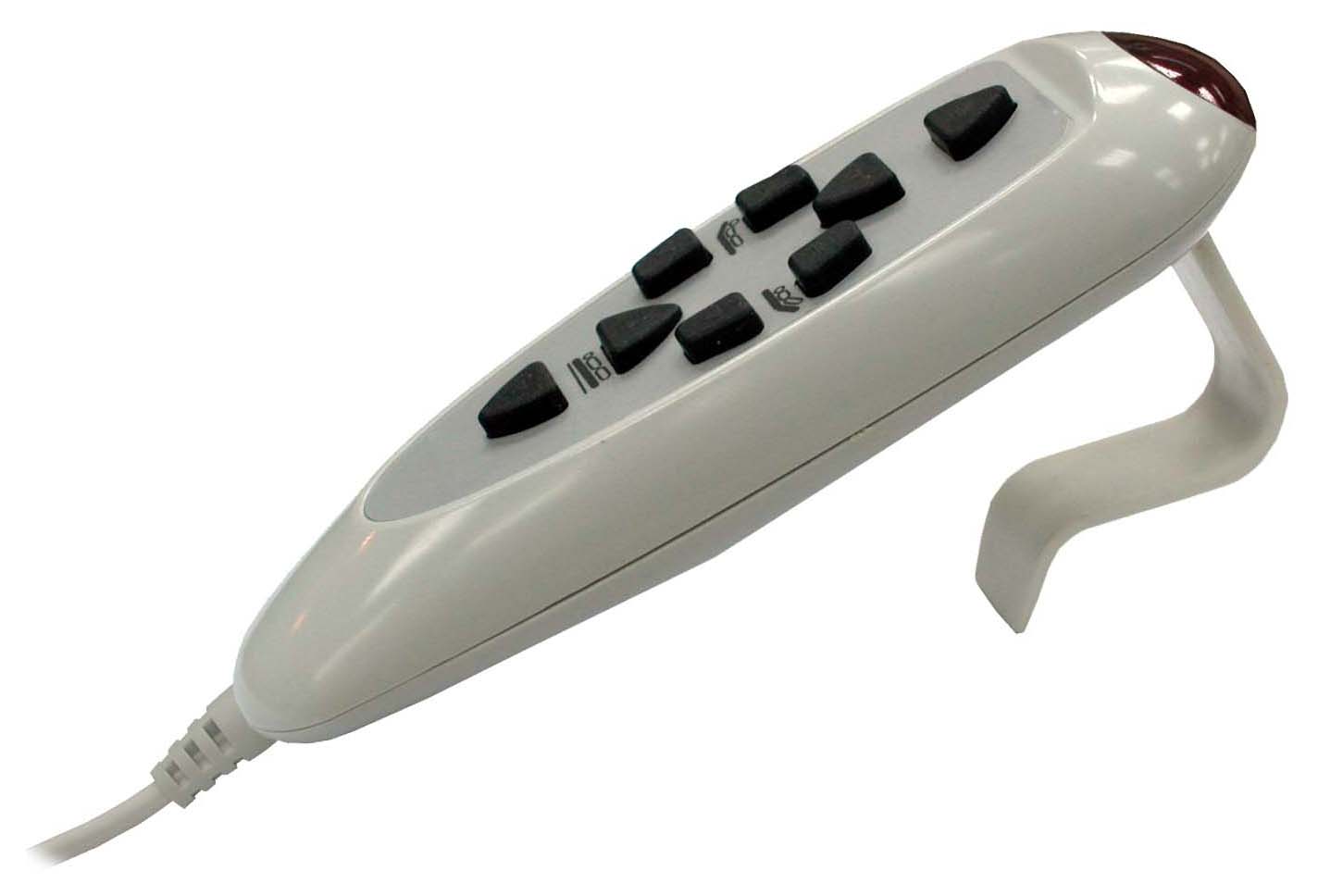

01GU
Handset 01GU The series include 01GU2, 01GU6, 01GU8 and 01GU9
with combinations of 2 to 9 buttons.

Option:
Safety Key

Dimensions :

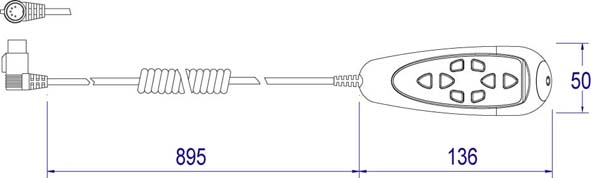

Dimensions of  01GU

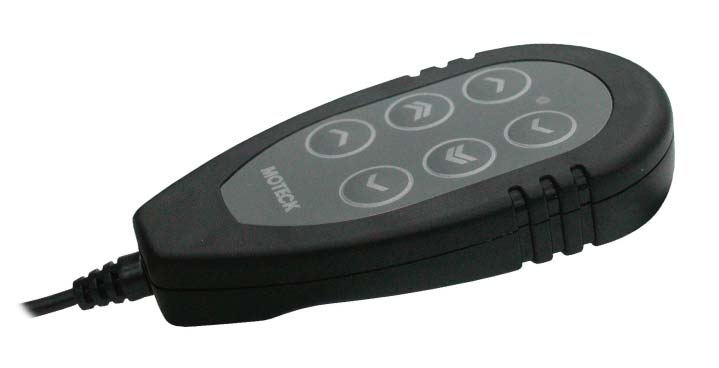

01GH
Handset 01GH The series include 01GH2 and 01GH6
with combinations of 2 to 6 buttons.

Option:
Magnetic Attachment
Hook

Dimensions :

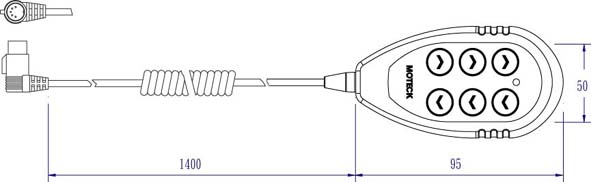

Dimensions of  01GH

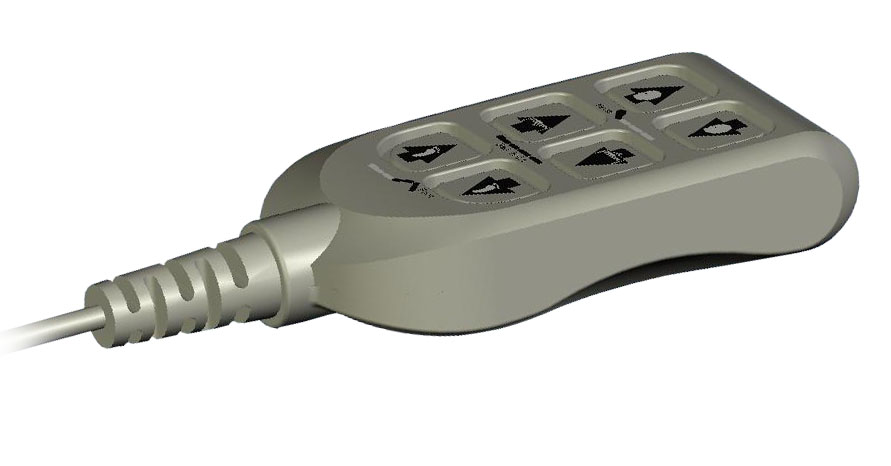

01GJ
Handset 01GJ The series include 01GJ2 and 01GJ6 with combinations of 2 to 6 buttons
IP66

Dimensions :

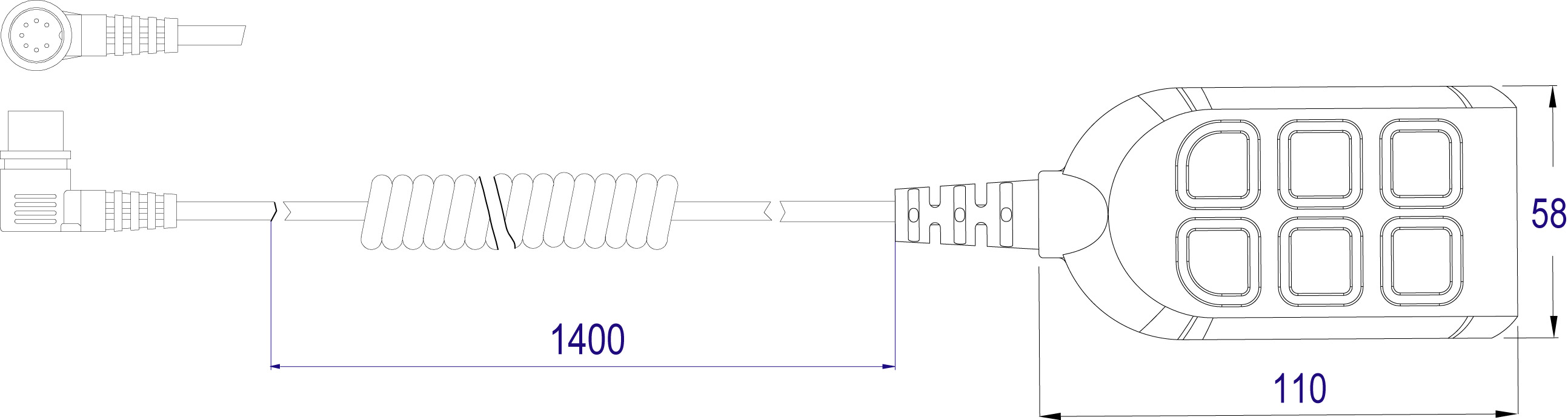

Dimensions of  01GJ

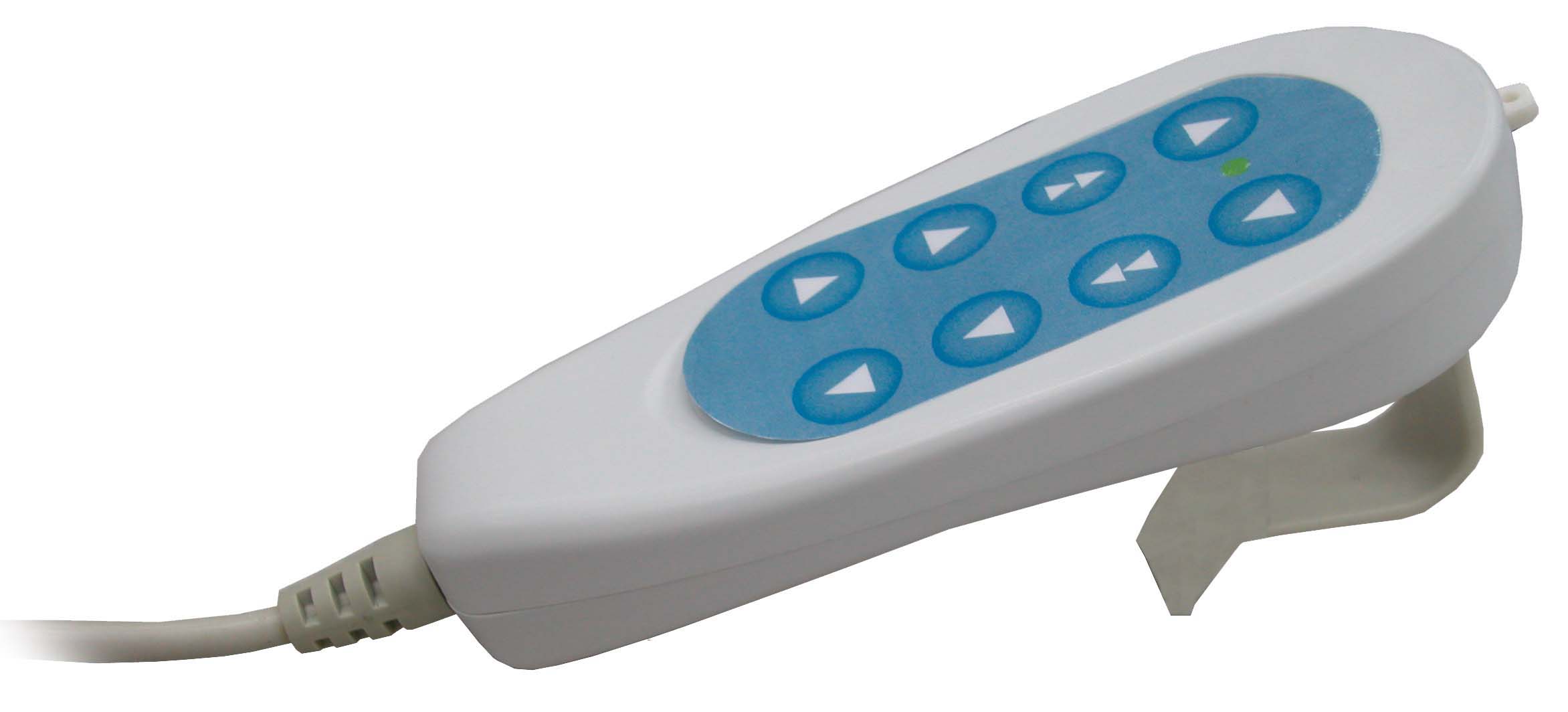

01GN
Handset 01GN The series include 01GN2, 01GN6 and 01GN8
with combinations of 2 to 8 buttons.

Option:
Safety Key

Dimensions :

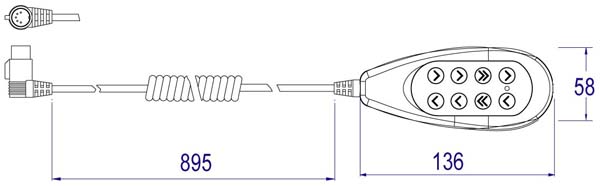

Dimensions of  01GN

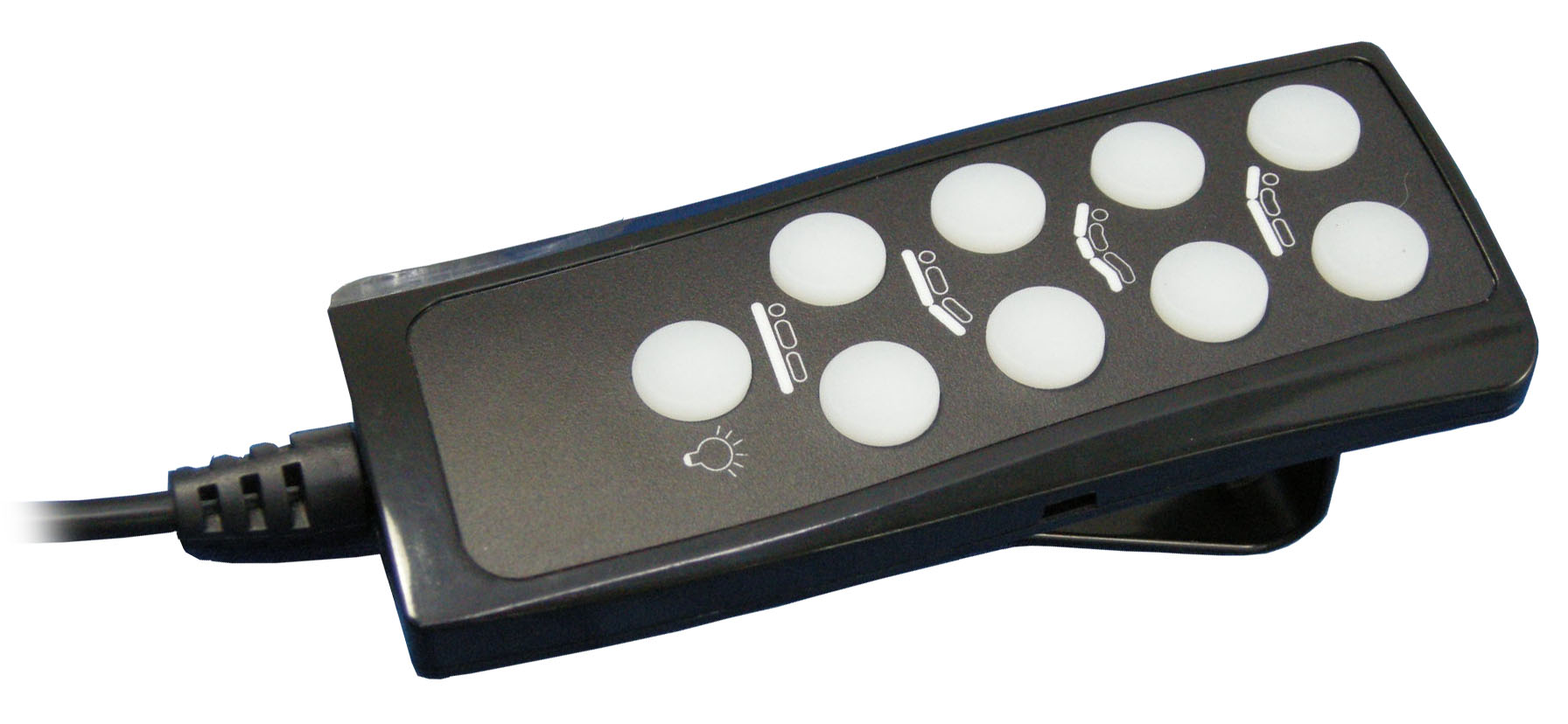

01G2B
Handset 01G2B The series include 01G2B3, 01G2B7 and 01G2B9
with combinations of 2 to 8 buttons plus one
Torch button for LED torch.

Dimensions :
Dimensions of  01G2B



01GE
Handset 01GE 2 buttons switch.

Dimensions :

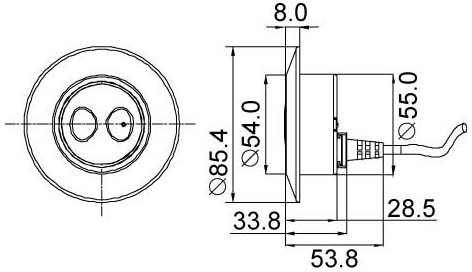

Dimensions of  01GE

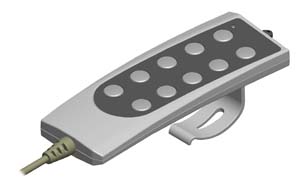

01GR
Handset 01GR The series include 01GR2, 01GR6, 01GR8 and 01GR10
with combinations of 2 to 10 buttons.
IP54

Option:
Safety Key
IP65

Dimensions :

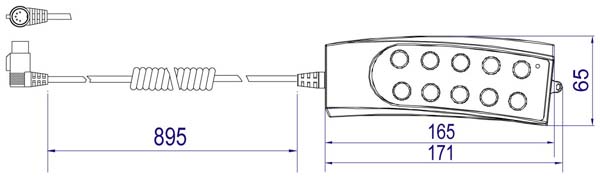

Dimensions of  01GR

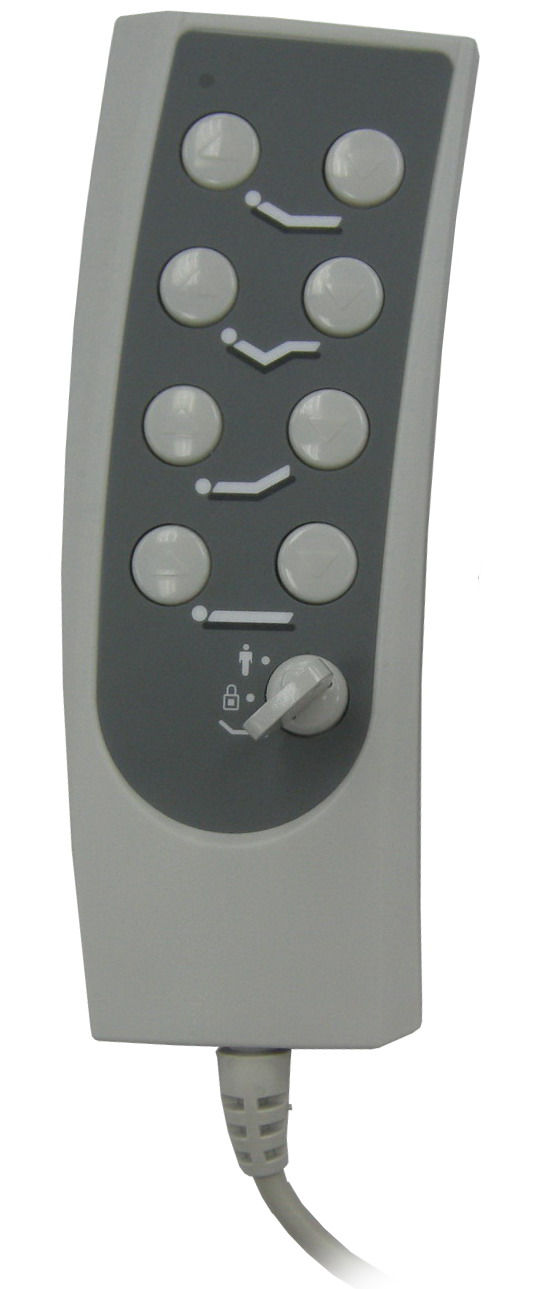

01GR (with Nurse Lock)
Handset 01GR with Nurse Lock The series include 01GR3, 01GR7 and 01GR9
with combinations of 2 to 8 buttons
plus one nurse lock.
IP54

Option:
Safety Key
IP65

Dimensions :
Handset 01GR with Nurse Lock

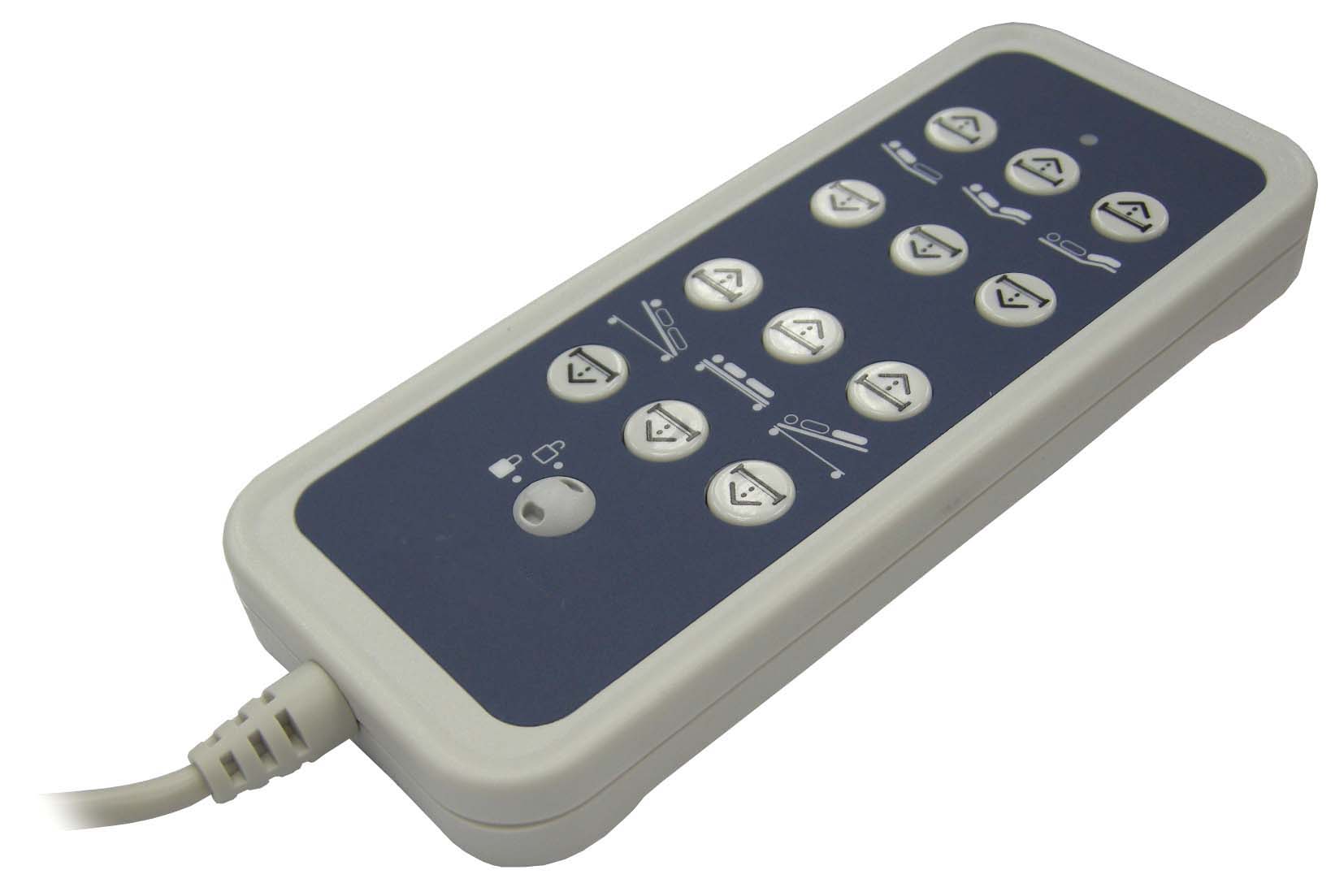

01G2S
Handset 01G2S The series include 01G2S2, 01G2S6, 01G2S8, 01G2S10 and 01G2S12 with combinations of up to 12 buttons or 01G2S3, 01G2S7, 01G2S9, 01G2S11 and 01G2S13 with one nurse lock
IP54

Dimensions :

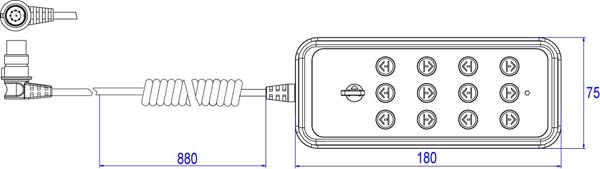

Dimensions of  01G2S

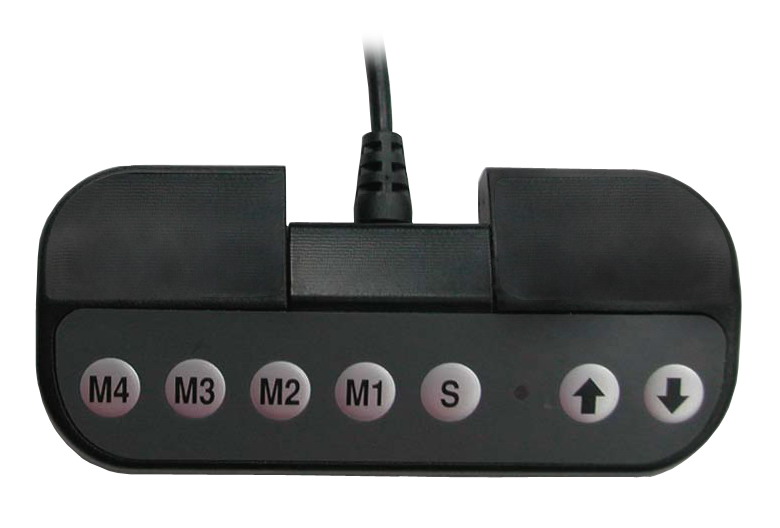

01JK1(Desk panel)
01JK1 To work with control box for one actuator.
Memory function for positions user preset.
Compatible with Moteck control boxes.

Option:
LED display available.
To control up to 3 actuators in synchronization.

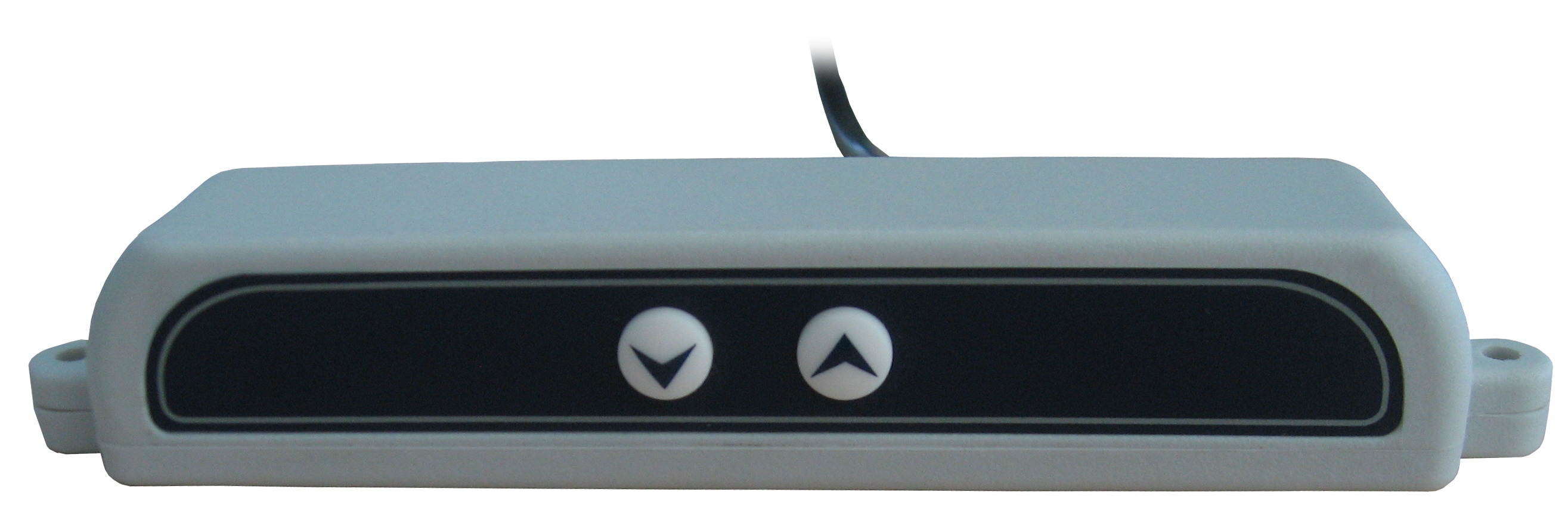

01GSY(Control Panel)
Control Panel 01GSY The series include 01GSY2, 01GSY4 and 01GSY6
with combinations of 2 to 6 buttons.
To work with control box for up to 3 Actuators.

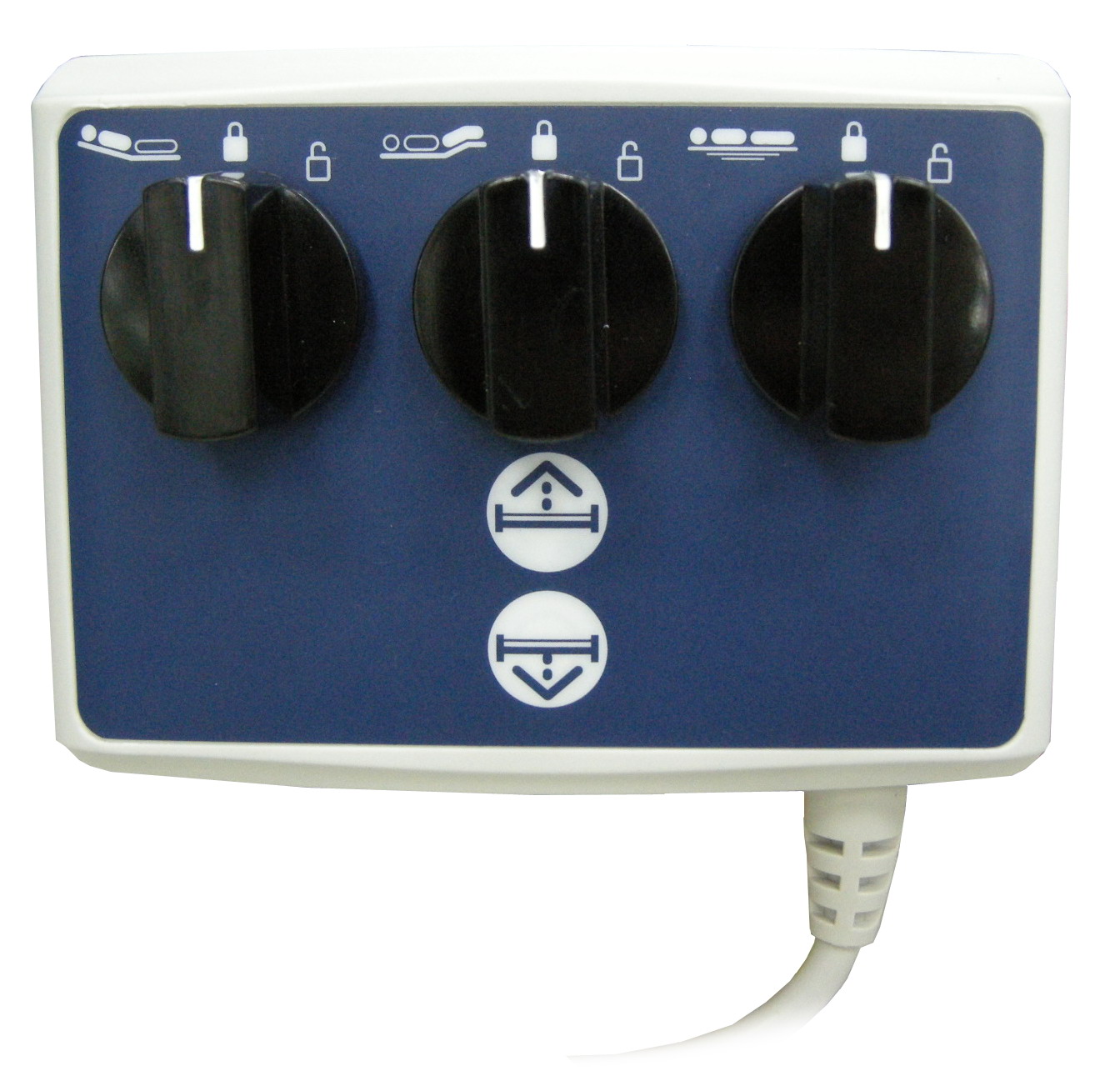

01BK1(Nurse Lock)
Nurse Lock 01BK1 This Nurse Lock is to collocate with some of our Control Boxes to lock/unlock designated 3 Actuators for safety purpose.

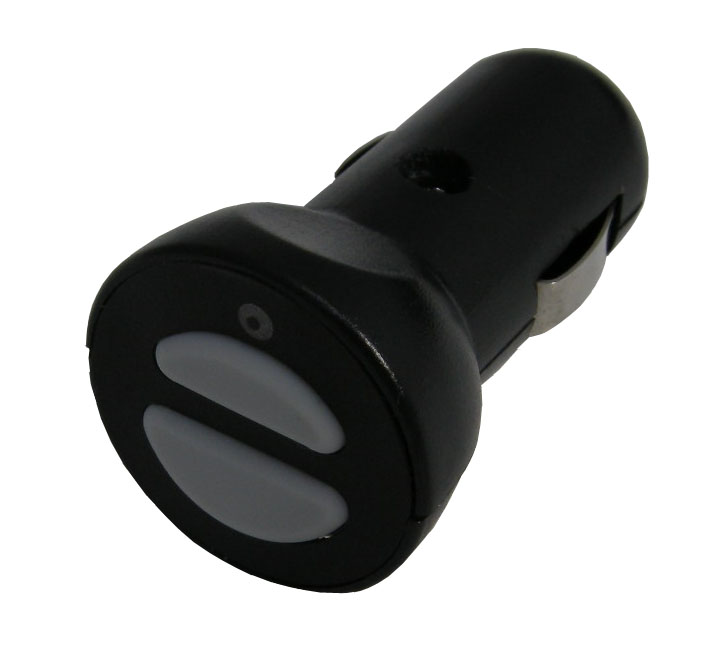

01XK1(Car Lighter Remote Controlå)
Car Lighter Remote Control 01XK1 2 buttons
Radio Frequency: 433.92MHz
No battery inside.
Powered by car lighter socket
