Control box

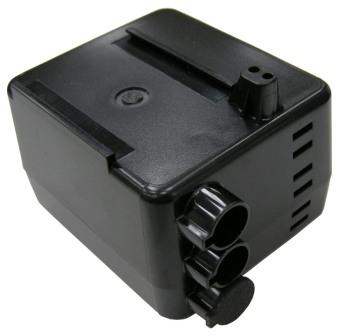

01R control box
Блок управления 01R

Specification: Model No. Designations:
A compact Control Box that can be slided-in
to attach to 01DS Actuator or be put aside separately
Input: 100 / 120 / 230V AC, 50 / 60Hz
Output: 24 / 12 V DC
Max. Amp. 3 / 6 A
Drive up to 3 Actuators
Emergency Lowering Function by 2 ? 9 V DC Batteries
Duty Cycle:10%

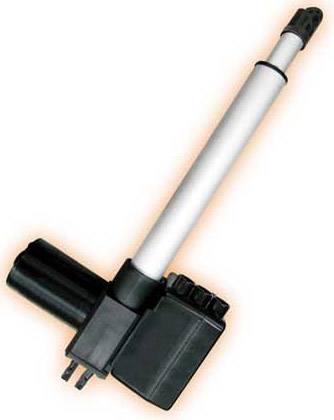

Actuator 01DS + 01R control box
01DS+ 01R control box
01R - 100.
Input voltage
230 V AC
120 V AC
100 V AC
24.
Output voltage
24 V DC
12 V DC
1.
1: for 1 actuator
2: for 2 actuators
3: for 3 actuators
Option:
Safety Plug

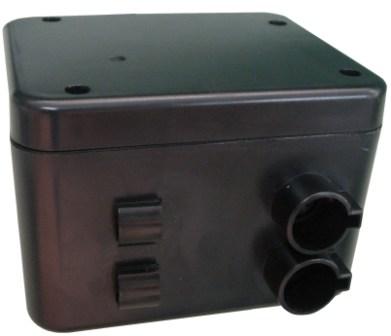

01XV1R control box

01XV1R control box

Specification: Model No. Designations
A compact Control Box that can be slided-in
to attach to 01DS Actuator or be put aside separately
Input: 100 / 120 / 230V AC, 50 / 60Hz
Output: 24 / 12 V DC
Max. Amp. 3 / 6 A
Drive 1 Actuator
Duty Cycle:10%
01XV1R.
110.
Input voltage
110 V DC
220 V DC
24.
Output voltage
24 V DC
12 V DC
1.
1: for 1 actuator
HS
Option
HS:Hall sensor
OS:Optical sensor
Option:
Synchronization of 2 Actuators

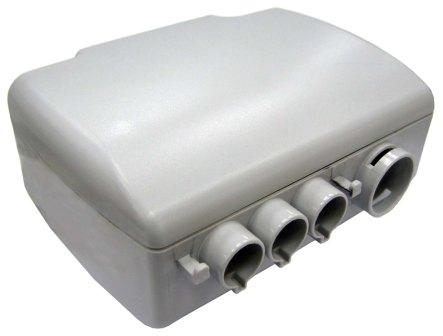

01XV2O control box

01XV2O control box

Specification: Model No. Designations
A compact Control Box with IP54

A compact Control Box with IP54
Input: 100 / 120 / 230V AC, 50 / 60Hz
Output: 24 / 12 V DC
Max. Amp. 3 / 6 A
Drive up 2 Actuators
Duty Cycle:10%
IP54
01XV2O - 100..
Input voltage
230 V AC
120 V AC
100 V AC
24.
Output voltage
24 V DC
12 V DC
1.
1: for 1 actuator
Option:
IP65/IP66

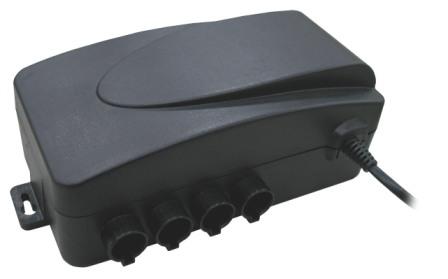

01XV3R control box

01XV3R control box

Specification: Model No. Designations
A compact Control Box with bigger room for larger transformer
Input: 100 / 120 / 230V AC, 50 / 60Hz
Output: 24 / 12 V DC
Max. Amp. 4.5 / 9 A or 3 / 6 A
Drive up 3 Actuators
Duty Cycle:10%
01XV3R-230.
Input voltage
230 V AC
120 V AC
100 V AC
24.
Output voltage
24 V DC
3.
1: for 1 actuator
2: for 2 actuators
3: for 3 actuators
(L).
L:Larger Transformer
SY
Option
SY: Synchronization Function
Option:
Synchronization of 2 Actuators

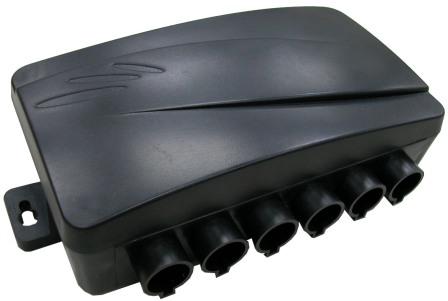

01RAX control box

01RAC control box

Specification: Model No. Designations
An individual Box that has
built-in only control PCB
working with separate 01RAW/01RAR Transformer Box Input voltage:110/220 V DC
Output voltage: 24 / 12 V DC
Drive up to 3 Actuators
Duty Cycle:10%
01RAX.
110.
Input voltage
110 V DC
220 V DC
1.
1: for 1 actuator
1.
HS
Option
HS:Hall sensor
OS:Optical sensor
Option:
Synchronization of 2 Actuators

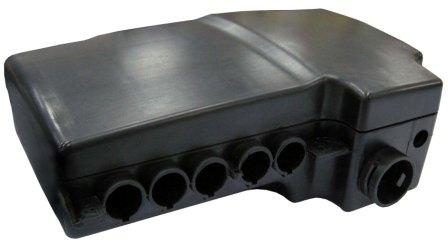

01NS6X control box

01NS6X control box

Specification: Model No. Designations
A compact Control Box that can be slided-in to attach to 01NS60 Actuator or be put aside separately
Input: 100 / 120 / 230V AC, 50 / 60Hz
Output: 24 / 12 V DC
Max. Amp.: 6.5 A
Drive up to 4 Actuators
Emergency Lowering Function by 2?9V DC Batteries
Duty Cycle: 10%
IP54
01NS6X-120.
Input voltage
100 V AC
120 V AC
230 V AC
24.
Output voltage
24 V DC
12 V DC
1.
Handset
1: for 1 actuator
2: for 2 actuators
L: for 1 actuator
+1 nurse lock
3
Output Port
1: for 1 actuator
2: for 2 actuators
3: for 3 actuators
Option:
IP65/IP66

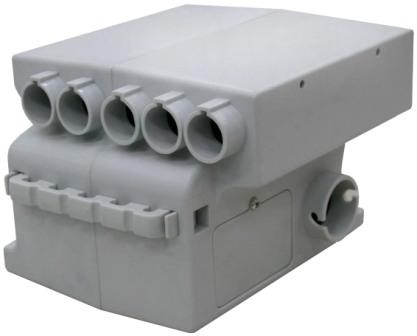

01NS7X control box

NS7X control box

Specification: Model No. Designations
A compact Control Box that can be slided-in to attach to 01NS7 Actuator or be put aside separately
Input: 100 / 120 / 230V AC, 50 / 60Hz
Output: 24 / 12 V DC
Max. Amp.: 3 / 6 A for 1-2 Actuators
4.5 / 9 A for 3-4 Actuators (High Power Version)
Drive up 4 Actuators
Emergency Lowering Function by 2?9V DC Batteries
Duty Cycle: 10%
IP54
01NS7X-120.
Input voltage
100 V AC
120 V AC
230 V AC
24.
Output voltage
24 V DC
12 V DC
1.
Handset
1: for 1 actuator
2: for 2 actuators
L: for 1 actuator
+1 nurse lock
3
Output Port
1: for 1 actuator
2: for 2 actuators
3: for 3 actuators
Option:
IP54

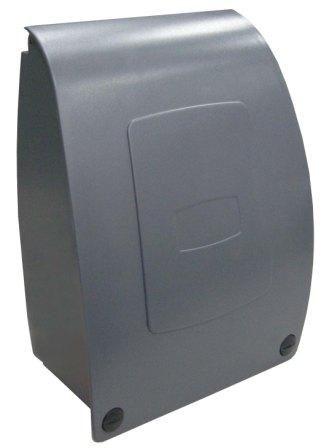

01XUA1 control box

 XUA1 control box

Specification: Model No. Designations
A Control Box drives two Actuators with Synchronization Function
Input: 24V DC
Output: 24V DC
Overload Protection: 5A (each actuator)
Reed Sensor or Hall Sensor
Duty Cycle: 10%
01XUA1-24.
Input voltage
24V DC
24.
Output voltage
24 V DC
2.
Output Port
1: for 1 actuator
2: for 2 actuators
SY
Option
SY:Synchronization Function
Option:
Synchronization of 2 Actuators
