Solar Tracking Control 01ARX1




01AX

  • Get max. 35%~45% More Energy Comparing to Fixed System
  • Tracking from Sunrise to Sunset
  • GPS for Location / Timer
  • Photo Detector for Fine Turning
  • Single or Dual Axes of Tracking
  • Low Standby Power Consumption

  • Feature:
  • Get max. 35%~45% More Energy Comparing to Fixed System
  • Tracking from Sunrise to Sunset
  • GPS for Location / Timer
  • Photo Detector for Fine Turning
  • Single or Dual Axes of Tracking
  • Low Standby Power Consumption

  • Option:
  • Photo Detector for Fine Turning
  • ID10S-Heavy Duty Actuator for Solar Tracker


Specification:

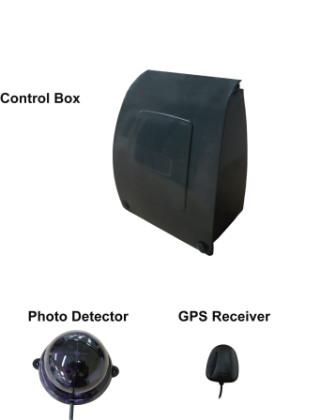

Control Box
Max Power 4A@24VDC, Up to 2 Actuators
Input Voltage 24VDC
Tracker Axes Single Axis x 2 or Dual Axes x 1
Azimuth Range Up to 180 or 220 (Depending on Driving system)
Elevation Range Up to 90 (Depending on Driving system)
Protection Overload Protection
Dimension 110 x 220 x 300 mm
Photo Detector
Dimension 82 x 98 x 50 mm
GPS Receiver
Power Consumption 36mA@5VDC
Dimension 50 x 60 x 22 mm

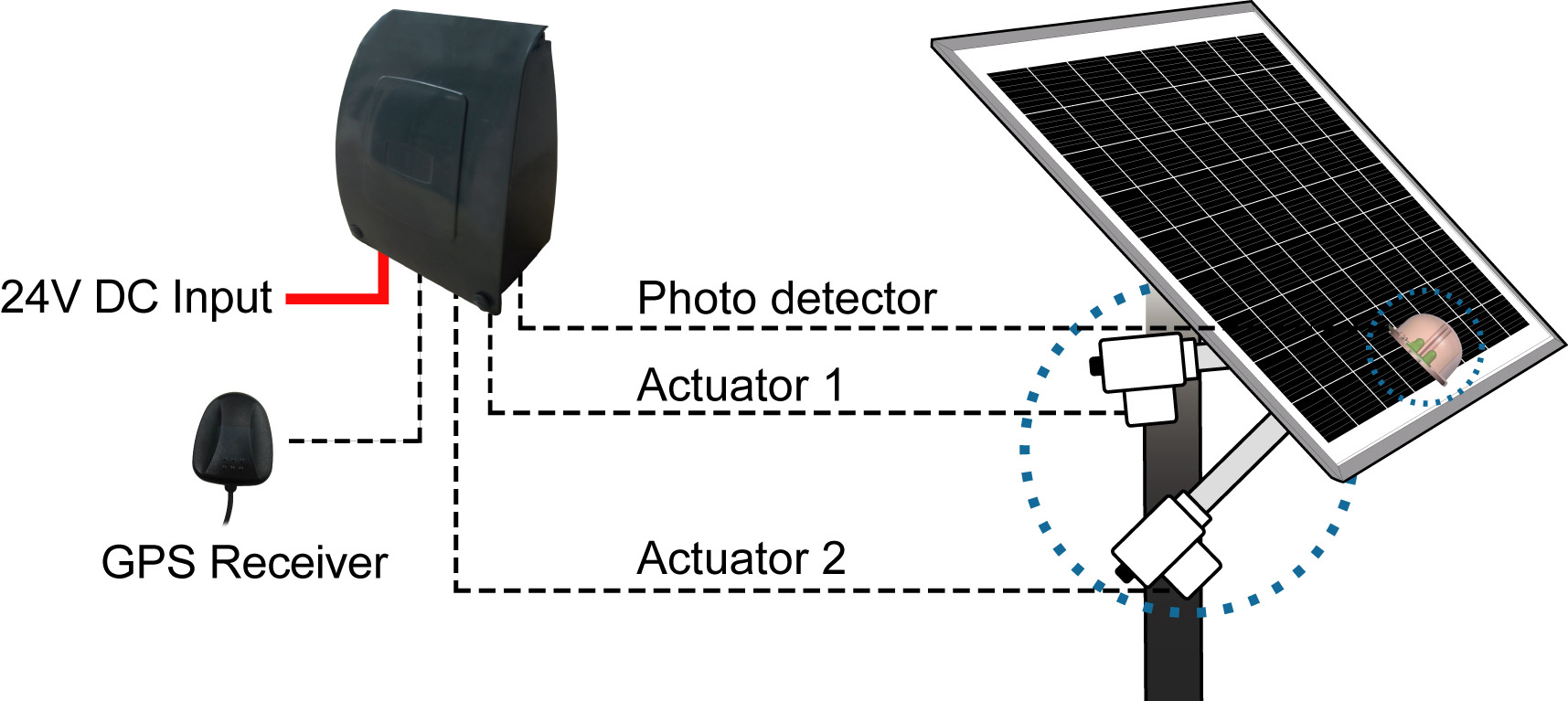

Installation Diagram

01AX

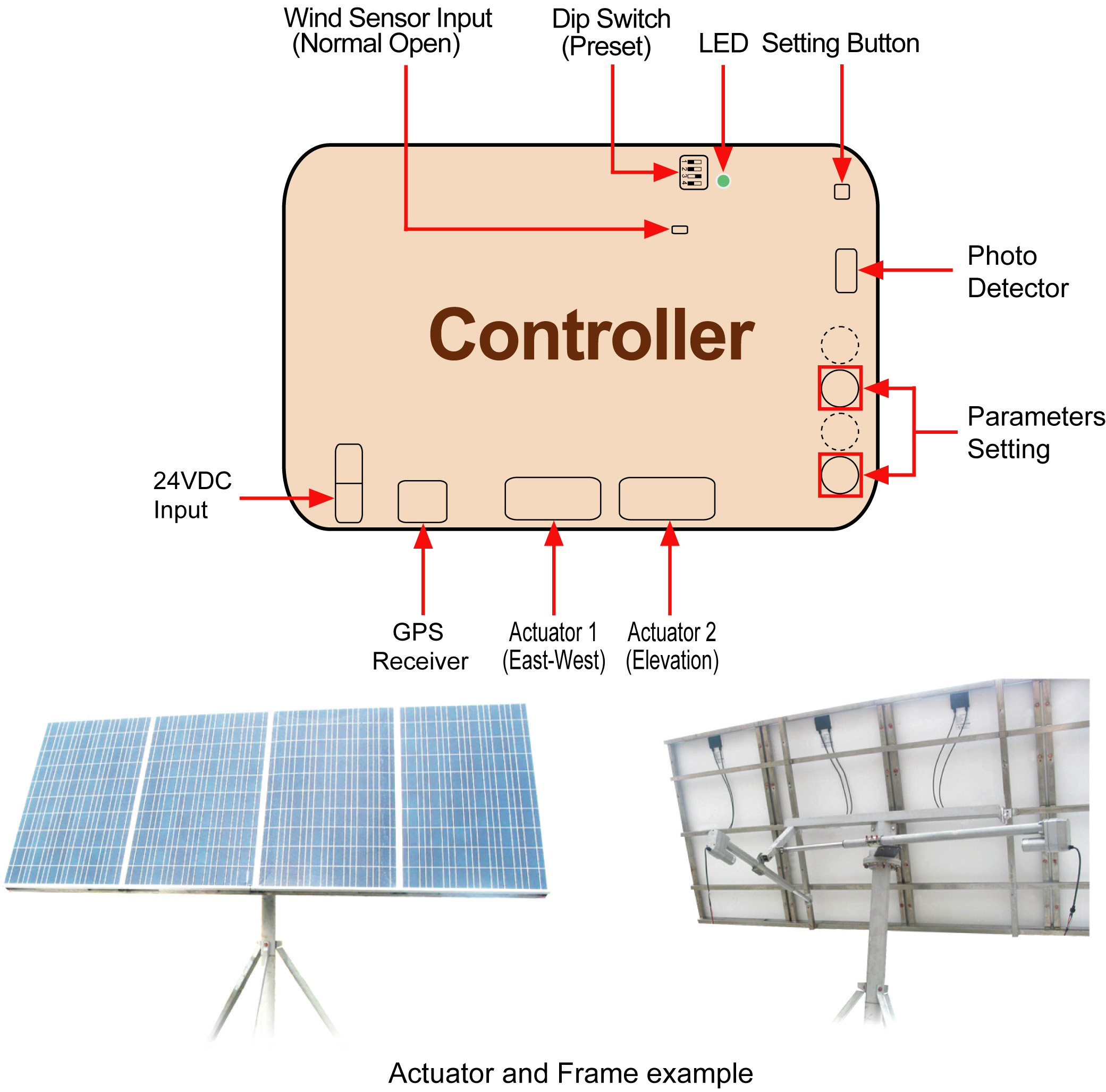

Connection Diagram

01AX
