Industrial Actuator
01US12B




01US12B

Specification:
Model 01US12 Ball Screw
Input 12 / 24VDC
Max. Load 7000N
Max. Speed 67 mm/sec
Stroke Length 102, 153, 203, 305, 457, 610 mm
Gear Ratio 5:1,10:1, 20:1, 30:1, 40:1
Duty Cycle 25%
Environment -25 ° C ~ 65 ° C
Static Load Capacity 13600N


FEATURE:
Rated Load: 7000N
Static load capacity: 13600N
Motor Voltage: 12/24V DC
Max. Speed Range: 8~67mm/sec
Standard Stroke: 102/153/203/305/457/610mm
External/ Adjustable Multi-Reed Switches
Overload protection by clutch
Stainless steel extension tube
High efficiency Ball Screw
Working temperature: -25 ° to +65 °
Duty cycle: 25%
Gear ratio: 5:1, 10:1, 20:1,30:1, 40:1
IP54


Option:
  • Potentiometer
  • Adjustable Reed Switches
  • Optional or Customized Front/Rear Mounting Bracket
  • Protection: IP65


Model No. Designations
01US12- 24-
Voltage
24-24 VDC
12-12 VDC
20-
Gear Ratio
40-40:1
(30-30:1)
B-
B:С
ACME
A:С
Ball Screw
610-
Stroke (mm)
102
153
.
.
ERS.POT...
ERS: External Reed Switches
POT: Potentiometer
IP65

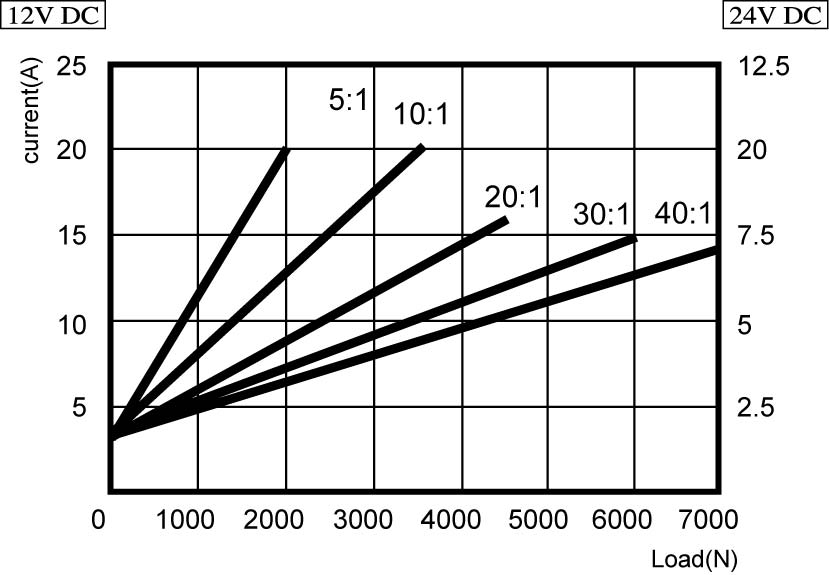

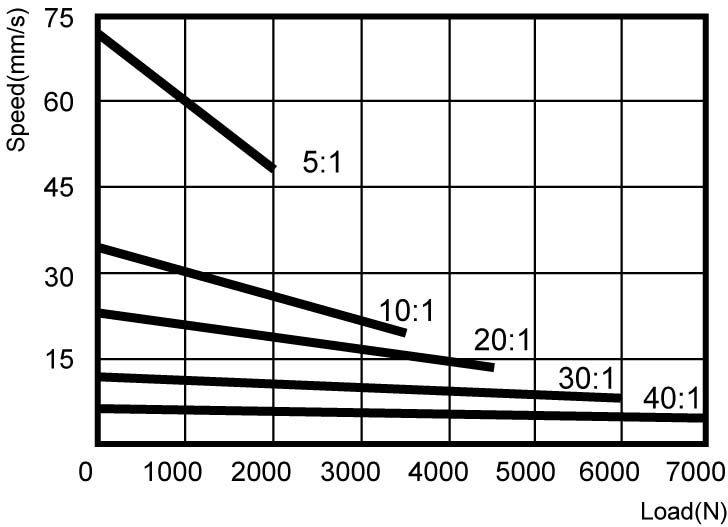

Speed vs Load Current vs Load
01US12B 01US12B
