Furniture Actuator
01DS20

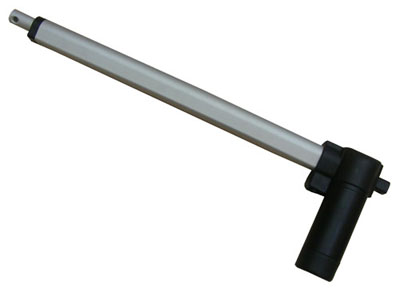

Actuator 01DS20

Specification:
Model 01DS20
Input 12/24 V DC
Max. Load 2000N(Push) / 1500N (Pull)
Max. Speed 8.4 mm/sec
Max. Speed (full load) 6mm/sec
Stroke: 30~300 mm (Customized Stroke Available)
Duty Cycle: 10%


Compact
Aluminum Extension & Otter Tubes
Preset Limit Switches



Option:
  • Hall Effect Sensor
  • Potentiometer
  • Push Only
  • Optional or Customized Front/Rear Mounting Bracket


Model No. Designations
01DS20- 24-

Voltage
12: 12 V DC
24: 24 V DC
A4

Speed v.s. Load
A4
172.222

A . B
A: Retracted Length
B: Extended Length

Stroke = B - A
C 1 1

1: Front connector
2: Rear connector
HS.PO..

Option
HS: Hall Sensor x 1
HS2: Hall Sensor x 2
PO: Push Only



Стандарт
Stroke 30-300 mm
Retracted Length Stroke+122
Extended Length Retracted Length + Stroke

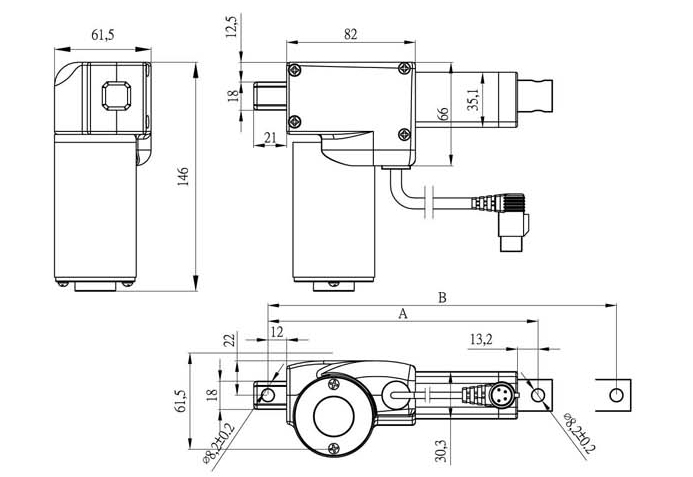

Actuator 01DS20 draw


C передним крепежом
Stroke 30-300 mm
Retracted Length Stroke+148
Extended Length Retracted Length + Stroke

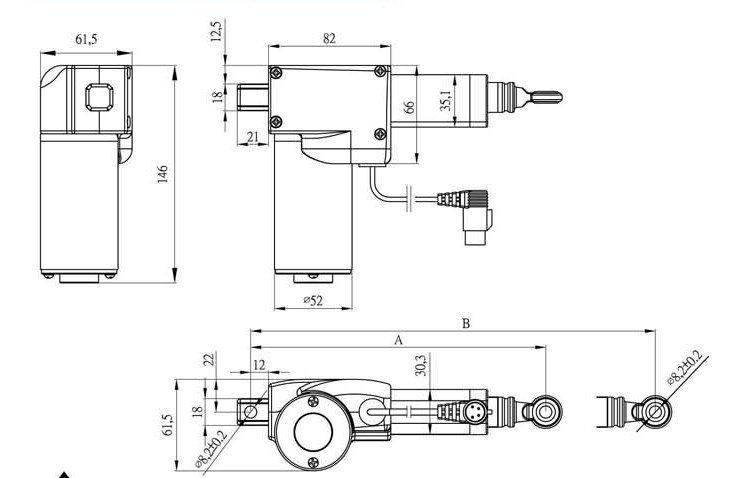

Actuator 01DS20 draw Actuator 01DS20 draw

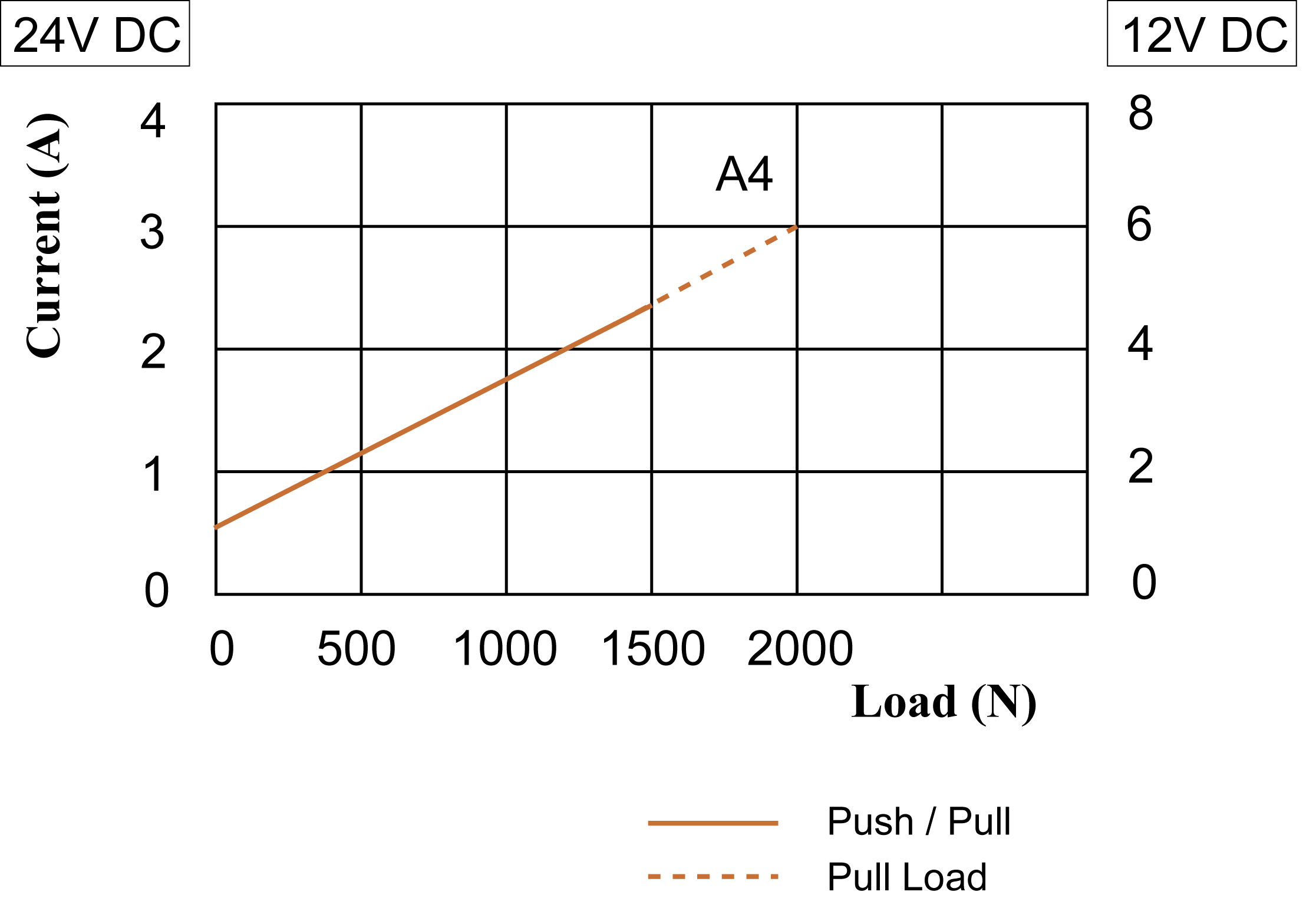

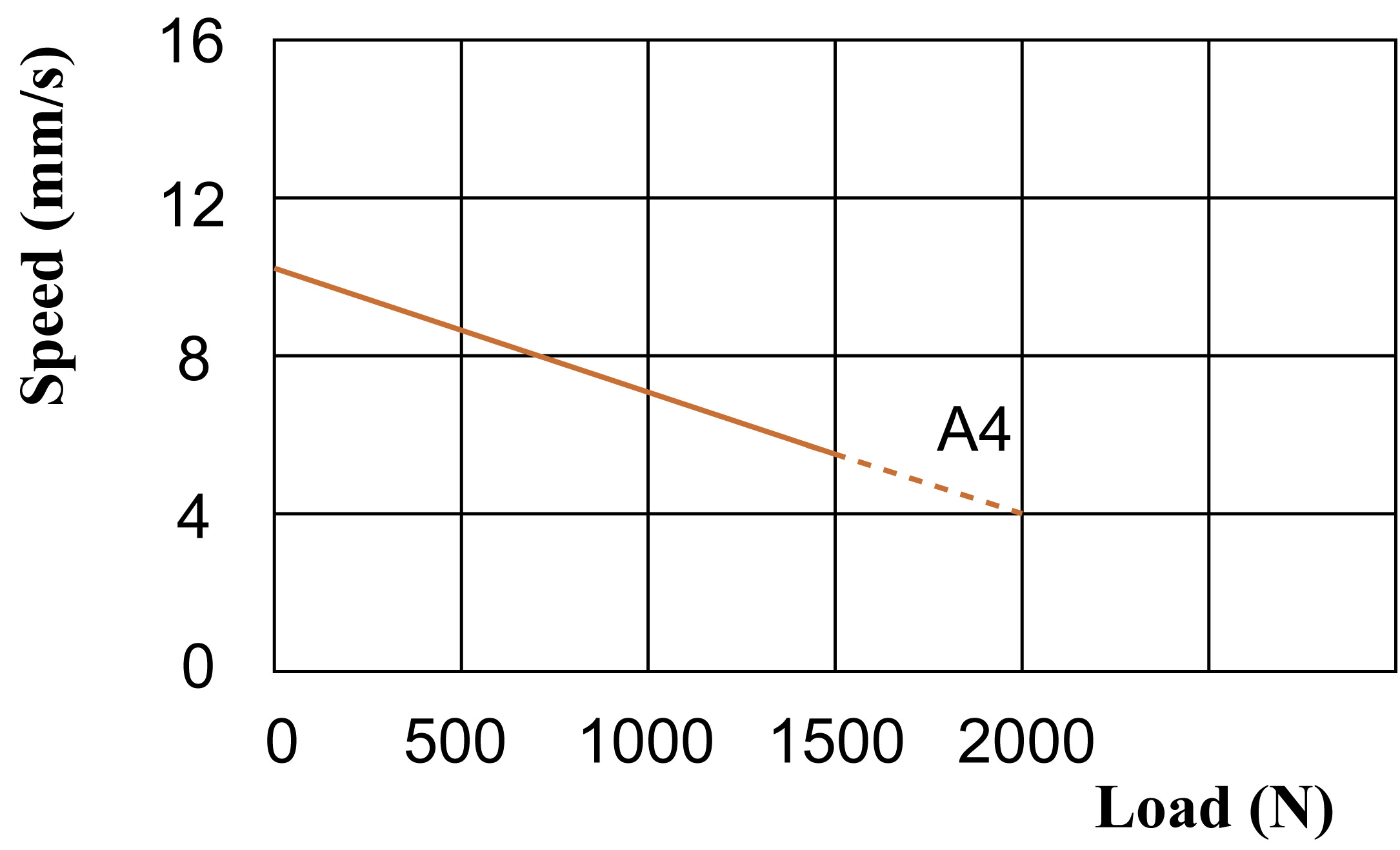

Speed vs Load Current vs Load
Actuator 01DS20 draw Actuator 01DS20 sraw
