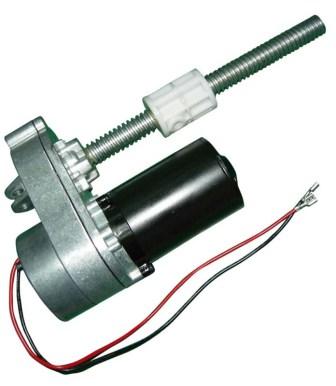

Compact Actuator 01KS6




01KS6

Specification:
Model 01KS6
Input 24 / 36 VDC
Max. Load 2800N
Max. Speed 8.2 mm/sec
Gear Ratio 22:1
Duty Cycle 10%


Max. Load: 2800N
Motor Voltage: 24/36V DC
Max. Speed: 8.2 mm/sec
Max. Stroke: 240 mm
Adjustable Limit Switches
Duty Cycle: 10%


Option:
  • Extension Tube
  • Plastic Outer Tube
  • Midpoint Switch


Model No. Designations
01KS6- 36-
Voltage
24 VDC
36 VDC
A-
A:Ball Screw
200.300-
Limit Switch
A.B Dimension
OT.ET
Outer Tube,
Extend Tube

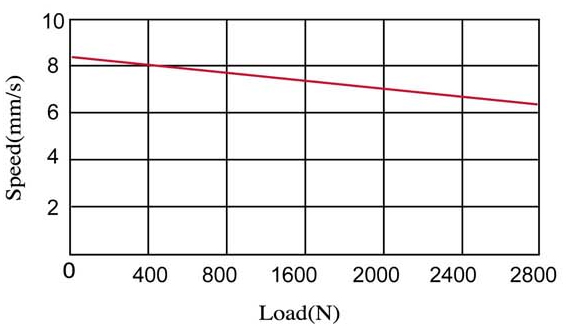

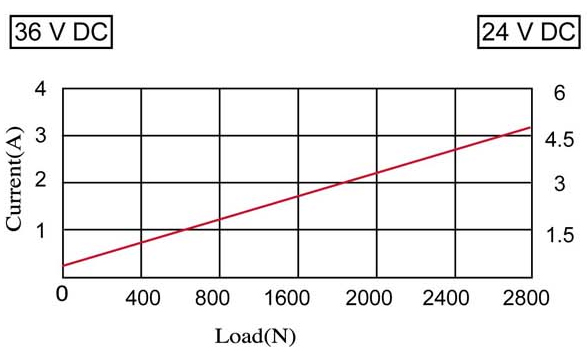

Speed vs Load Current vs Load

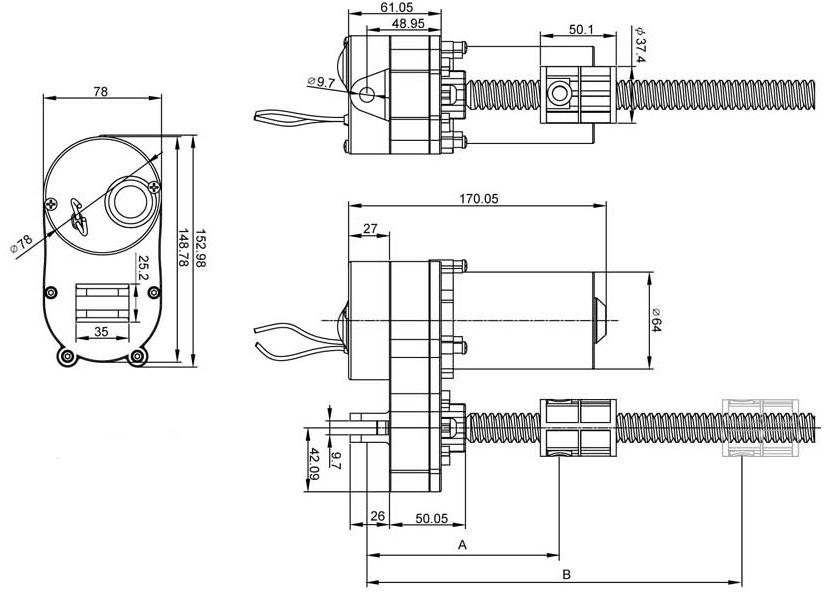

Actuator 01KS6  Draw
