Medical Actuator
01NS80

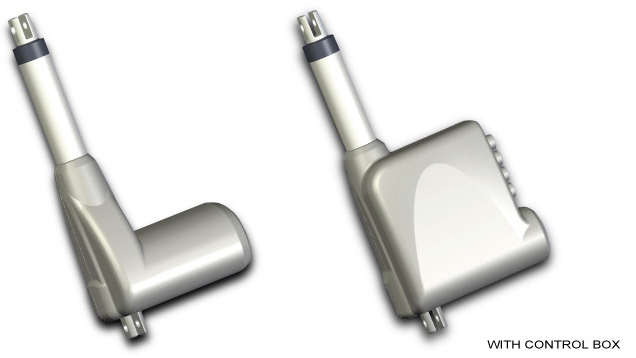

Actuator 01NS80

Технические характеристики:
Model 01NS80
Input 24V DC
Max. Load 8000N(Push) / 8000N (pull)
Max. Speed 8mm/sec
Stroke 100~400mm(Customized Stroke Available)
Duty Cycle 10%


Preset Limit Switches
IP54



Option:
  • Hall Effect Sensor
  • Push Only
  • Safety Nut
  • Optional or Customized Front/Rear Mounting Bracket
  • Spiral Cable
  • IP65/IP66


Model No. Designations
01NS80- 24-

Voltage
24: 24 V DC
A12

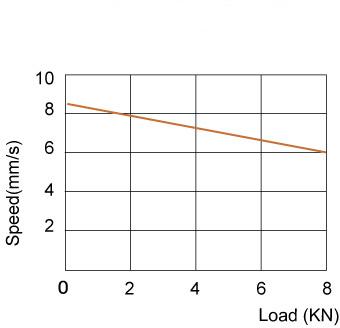

Speed V.S Load
ACME Nut
12mm Pitch
350.450

A . B
A: Retracted Length
B: Extended Length

Stroke = B - A
C11

1: Front connector
1: Rear connector
HS.PO.SN..

Option
HS: Hall Sensor x 1
HS2: Hall Sensor x 2
PO: Push Only
SN: Safety Nut
IP65/IP66

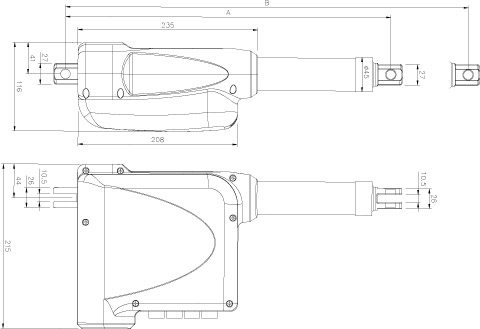

Actuator 01NS80 draw

Actuator 01NS80 draw


Speed vs Load Current vs Load
Actuator 01NS80 Actuator 01NS80
