Furniture Actuator
01DS




The most elaborate furniture actuator among all

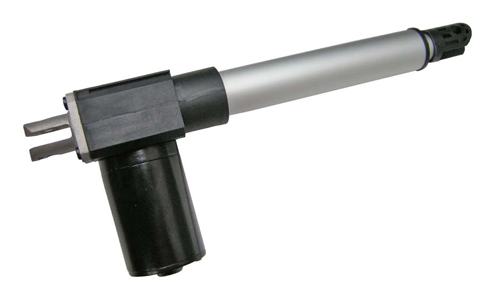

Actuator 01DS

Specification:
Model 01DS
Input 24V DC (12/110V DC Optional)
Load Capacity 6000N(Push) / 4000(Pull)
Speed at Full Load 16.6 (mm/sec)
ACME Single / Dual Threads
Stroke Length 50 /100 /150 /200 /300
(2 /4 /6 /8 /10 /12 inch)
Mounting Clevis to Clevis( different angles available)
Duty Cycle 10%
Limit Switches Built-in (preset in factory)


12/24 DC Motor
Powerful with Ultral Low Noise
Max. Speed: 16.6 mm /sec
Multiple Application Choices
High Strength Plastic Gears
Aluminum Tubes
IP43


Model No. Designations
01DS- 24-

Voltage
12: 12 V DC
24: 24 V DC
A4

Speed v.s. Load
A4
A6
A8
.
.
228.278

A . B
A: Retracted Length
B: Extended Length

Stroke = B - A
C 1 2

1: Front connector
2: Rear connector
HS.PO.MD

Option
HS: Hall Sensor x 1
HS2: Hall Sensor x 2
PO: Push Only
MD: Manual Drive



Stroke 50 100 150 200 250 300
Retracted Length 228 278 338 388 448 498
Extended Length 278 378 488 588 698 798 (mm)

PS.other stroke available

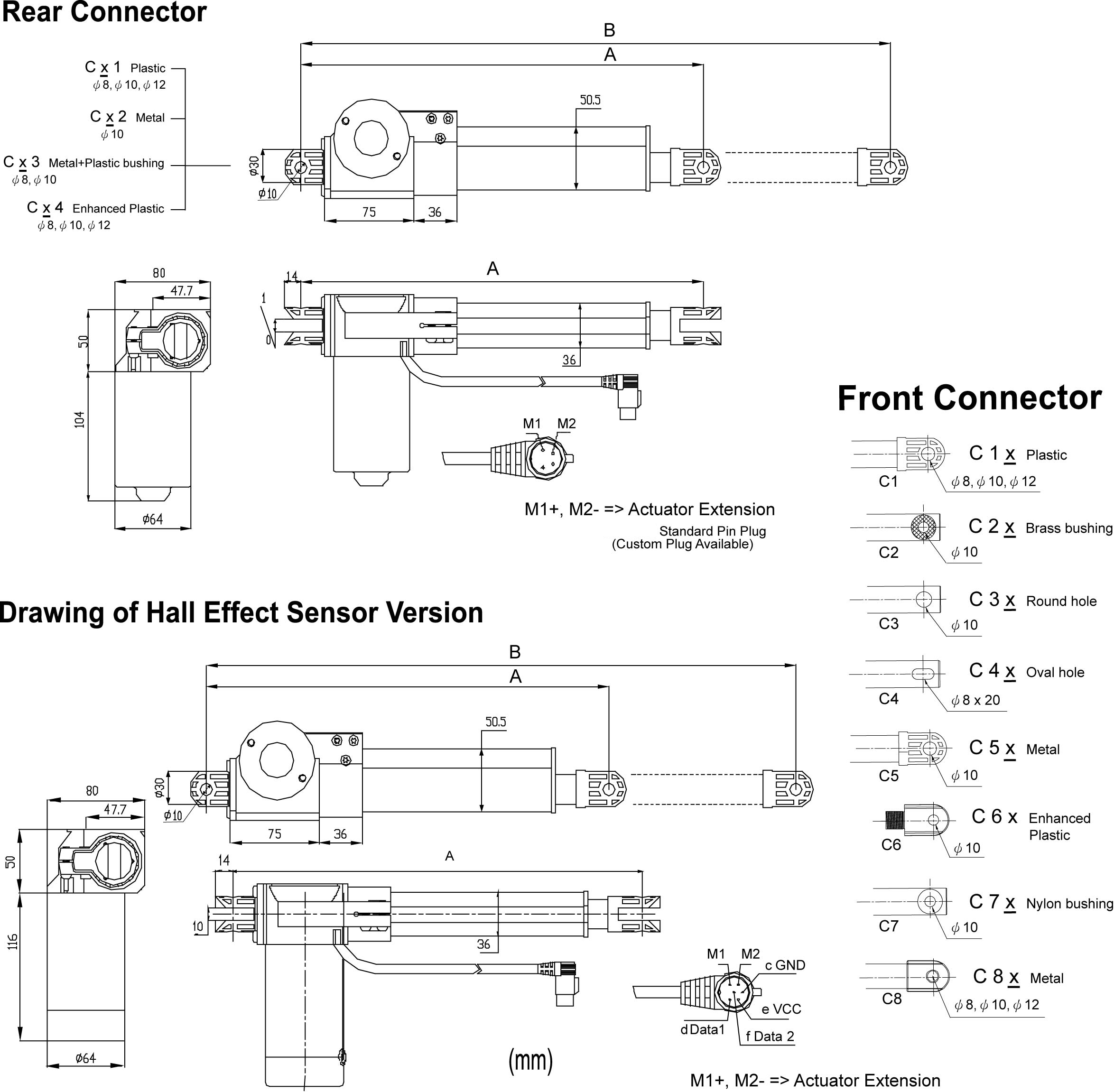

Actuator 01DS draw

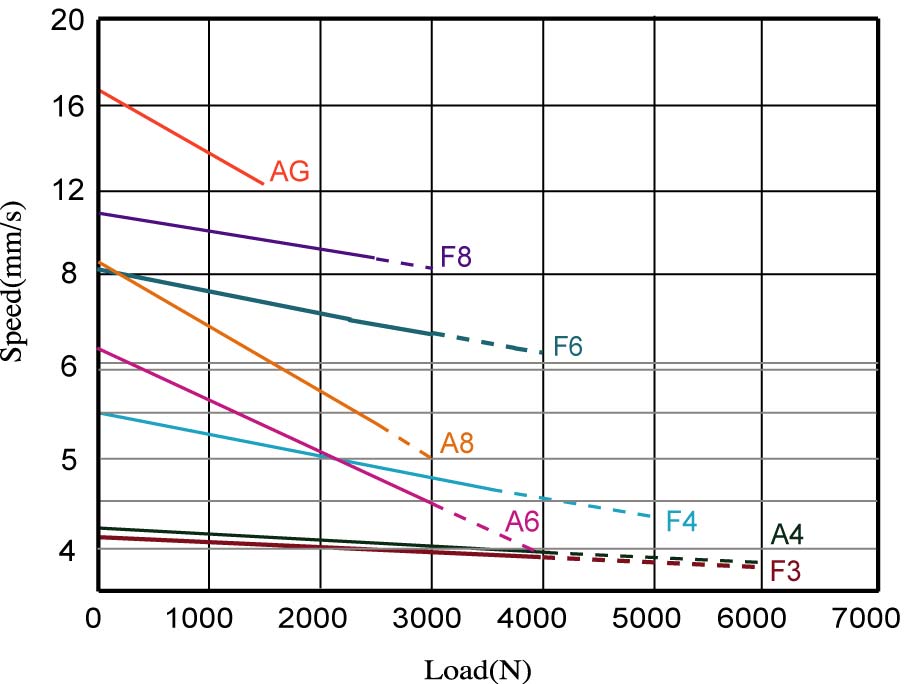

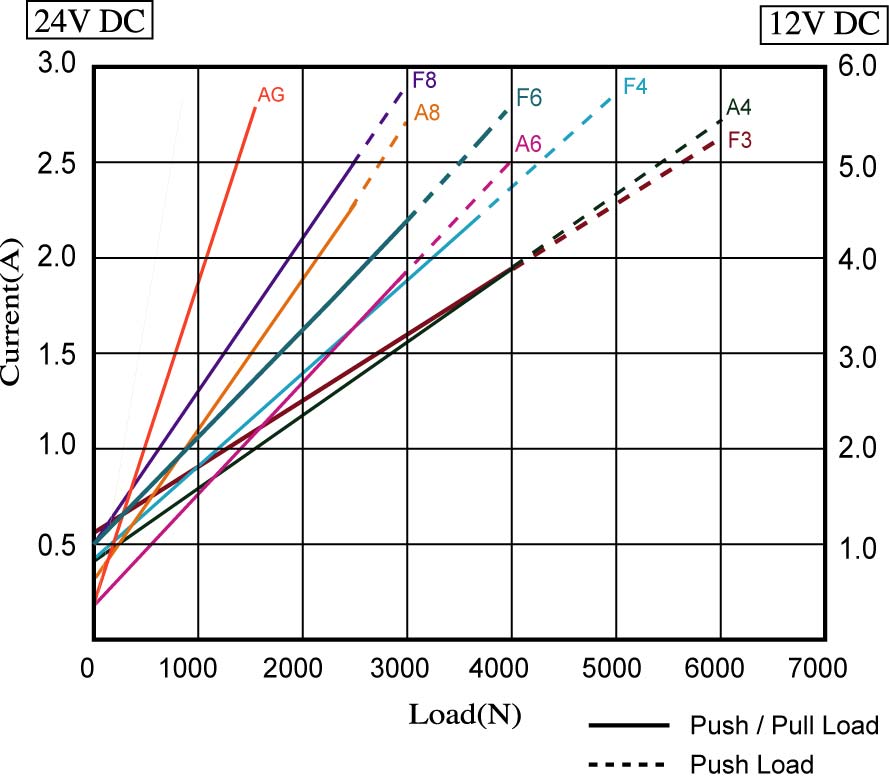

Speed vs Load Current vs Load
Actuator 01DS Actuator 01DS
