Furniture Actuator
01OS64




Tube Side-Force Resistance

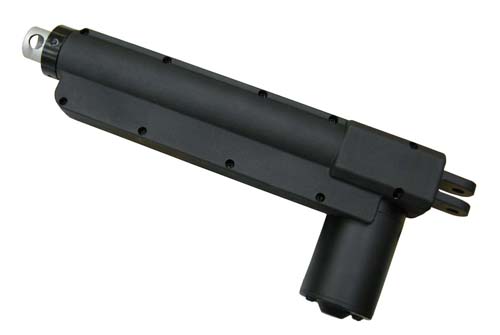

Actuator 01OS64

Specification:
Model 01OS64
Input 12/24V DC
Max. Load 6000N(Push) / 4000N (Pull)
Standard Speed 4.2 (no load) / 2.6 (full load) (mm/sec)
Stroke 50~220mm
Duty Cycle: 10%


Preset Limit Switches
IP43



Option:
  • Motor Voltage: 12V DC
  • Quick Speed: Up to 12mm/sec (full load), 26mm/sec (no load)
  • Hall Effect Sensor
  • Push Only
  • Optional or Customized Front Mounting Bracket
  • Spiral Cable


Model No. Designations
01OS64- 24-

Voltage
12: 12 V DC
24: 24 V DC
A4

Speed V.S Load
A4
A8
330.460

A . B
A: Retracted Length
B: Extended Length

Stroke = B - A
C31

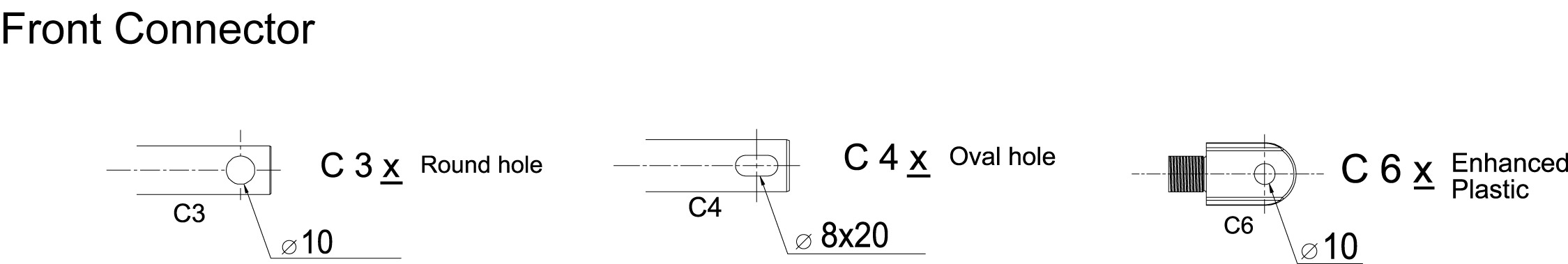

3: Front connector
1: Rear connector
HS.PO

Option
HS: Hall Sensor x 1
PO: Push Only

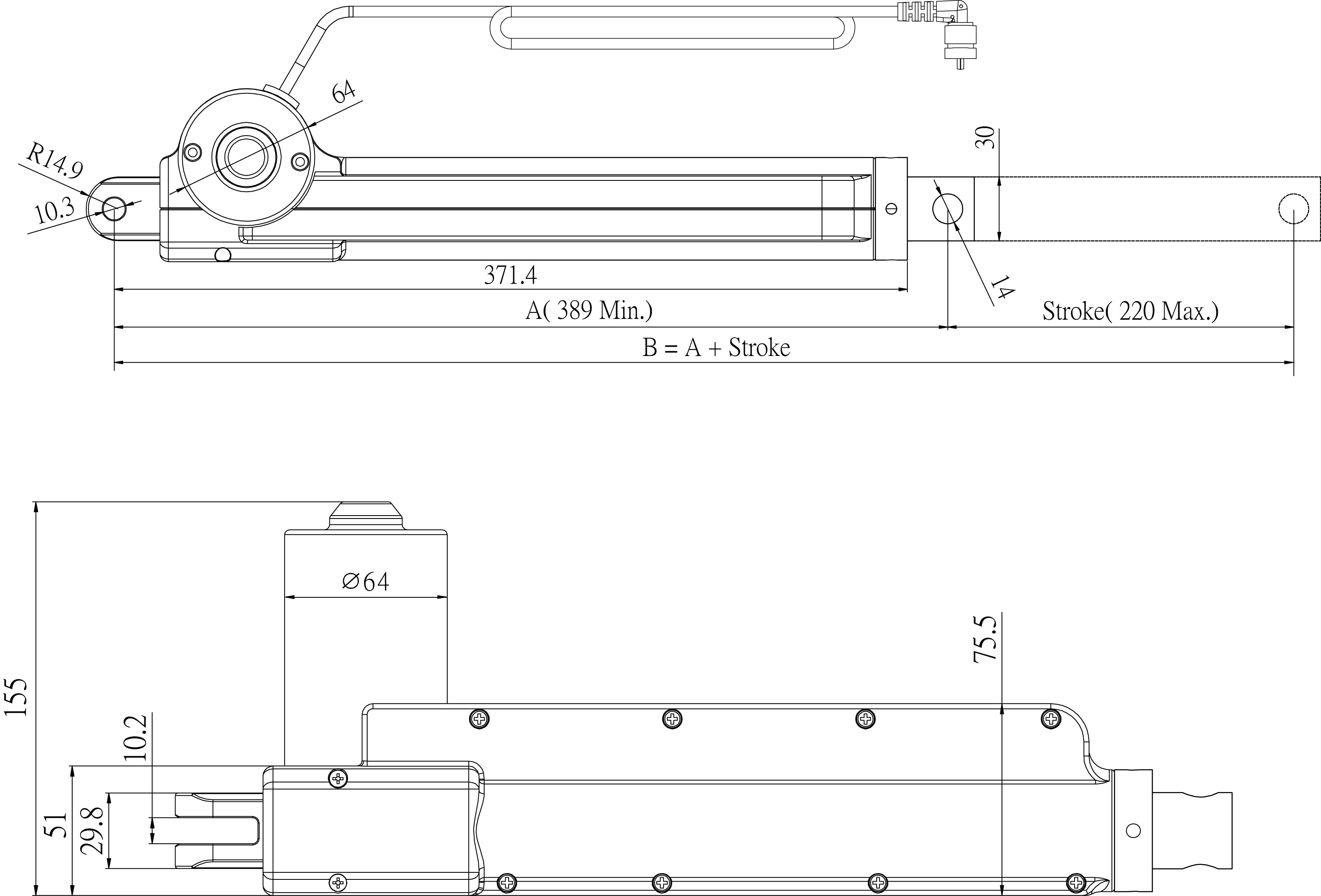

Actuator 01OS64 draw

Actuator 01OS64 draw
