DiSEqC 1.2 Motor




DiSEqC 1.2 Motor

Specification:

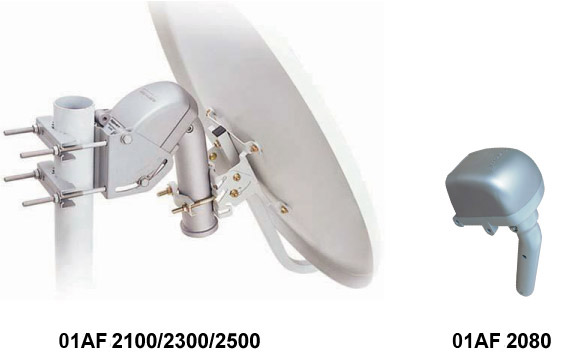

Model 01AF2100 01AF2080 01AF2300 01AF2500
Gear Plastic Plastic Semi-metal Metal
Antenna Diameter 1.2M Max.
Length of Motor Tube 18cm
Azimuth Angle 75°EAST ~ 75°WEST ( 150° )Adjustable
Elevation Angle 10°~75°
Input / Output Voltage 13 / 18 VDC
Power Consumption 50 mA ( Standby mode )
200mA ( Normal)
350 mA ( Max.)
Rotation Speed 1.9° / sec( at 13V) ; 2.5 °/ sec ( at 18V)
Satellite Positions 60
Connector F Type
Resynchronize Function YES
Command Protocol DiSEqC 1.2
Goto Position 0 Function 0 YES
Goto X Function X YES
Positioning Sensor Hall Effect Sensor
EAST / WEST Limit Adjustable Hardware and Programmable Software
Manual Button EAST / WEST
Cover Aluminum Plastic/Aluminum Aluminum Aluminum


Special Design for Receiver with DiSEqC 1.2

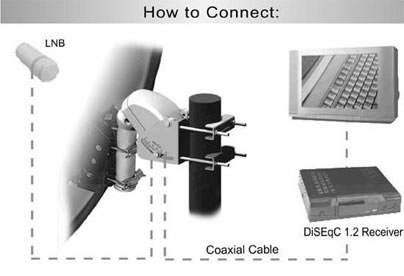

Only One Coaxial Cable Control
Go To X Function
High Efficiency
Compact Structure
Ultra Low Noise
Easy Installation with LED Indicator
Manual EAST / WEST button
For Dish up to 1.2M


DiSEqC 1.2 Motor draw
