Mini actuator 01NB
The most economic way for motorization

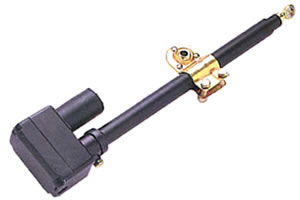

Actuator 01NB+

Specification:
Model 01NB
Input 36VDC ( 24VDC available )
Load Capacity 1500N
Strock Length 200,250,300mm
Drive ACME
Full Load Speed 2.6 mm/sec
Duty Cycle 20%
Temperature -26 ° C ~ 65 ° C
Limit Switch Adjustable
Static Load 2800N


Adjustable Limit Switches
Up to 1500N Load Capacity
Reed Switch Sensorè
Corrosion Resistant

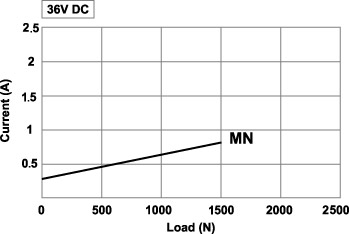

Speed vs Load Current vs Load
01NB 01NB


Stroke 15,24 20,32 25,4 30,48
Length L(́́) 210 260 310 360

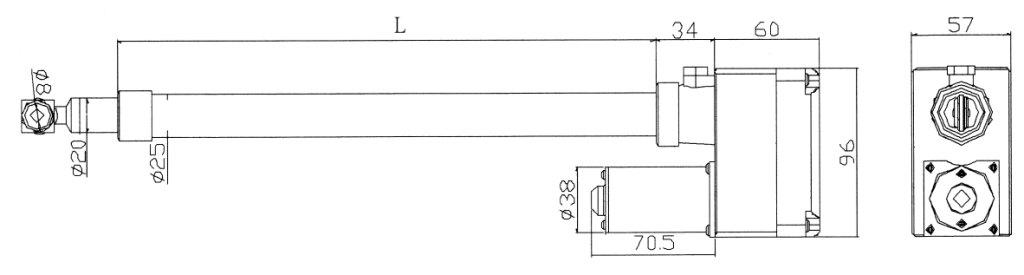

Mini actuator 01NB+ draw
