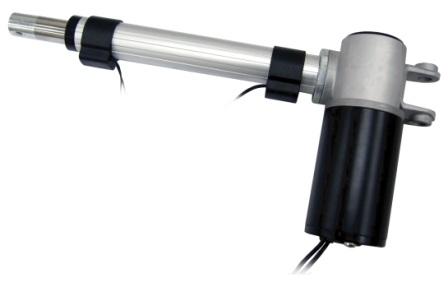

Industrial Actuator
01US13 ACME




01US13A

Specification:
Model 01US13 ACME
Input 12 / 24VDC
Max. Load 1800N
Max. Speed 25~35mm/sec
Stroke Length 100, 150, 200, 250, 300 mm
Gear Ratio 25:1
Duty Cycle 10%
Environment -25 ° C ~ 65 ° C
Static Load Capacity 6000N


FEATURE:
Low Backlash (End Play)
Dynamic Load: 1200N Max.
Static Load Capacity: 1800N Max.
Max Speed Range: 25~35 mm/sec
Working temperature: -25° C to +65° C
Clutch for Overload Protection
Stainless Steel Extension Tube
Aluminum Outer Tube
Stroke Length: 100/150/200/250/300mm
Duty cycle: 10%
Protection: IP54


Option:
  • 90V DC Motor
  • Hall Effect Sensor
  • Optional or Cuatomized Front Mounting Bracket
  • External Limit Switches (Reed Switch Type)
  • Protection: IP65


Model No. Designations
01US13- 12-
Voltage
12-12 VDC
24-24 VDC
90-90 VDC
25-
Gear Ratio
25-25:1
B-
B:С
ACME
A:С
Ball Screw
100-
Stroke (mm)
100
150
200
250
300
.
HS.C21.IP65
HS: Hall Sensor
IP65
ML: Motor at Left Side
MR: Motor at Right Side
C21

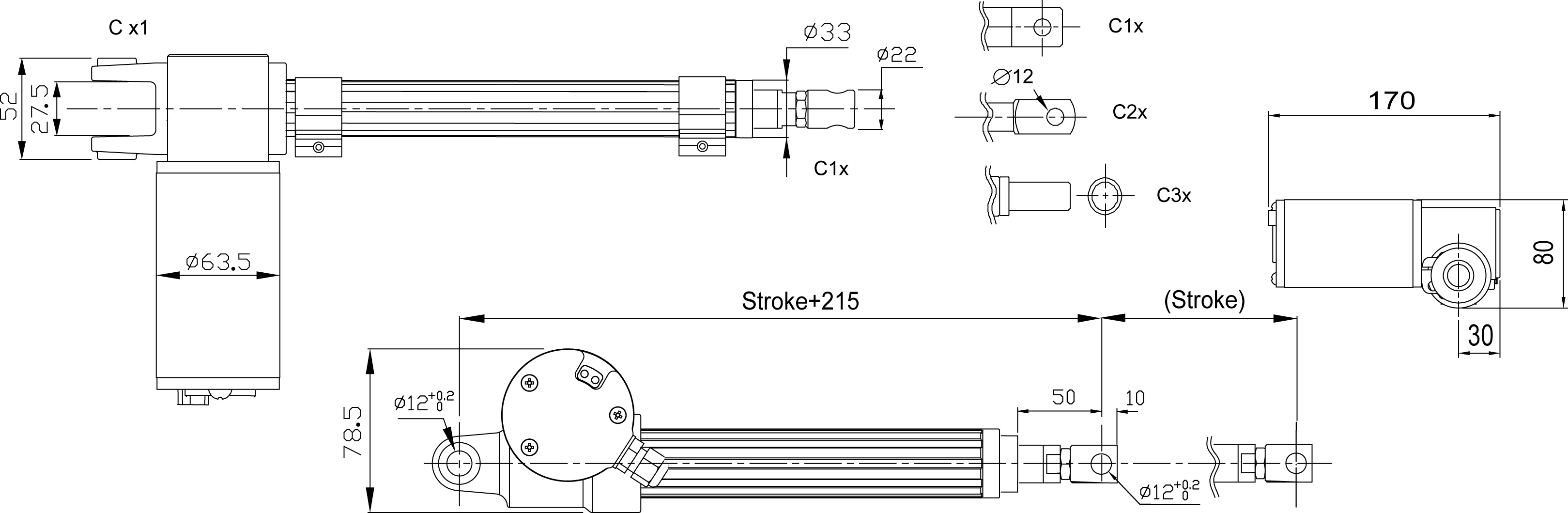

Stroke 50mm 100mm 150mm 200м 250mm 300mm 350mm
Retracted Lenght (+-3mm) 265 315 365 415465 515 565
Extended Lenght (+-3mm) 315 415 515 615 715 815 915

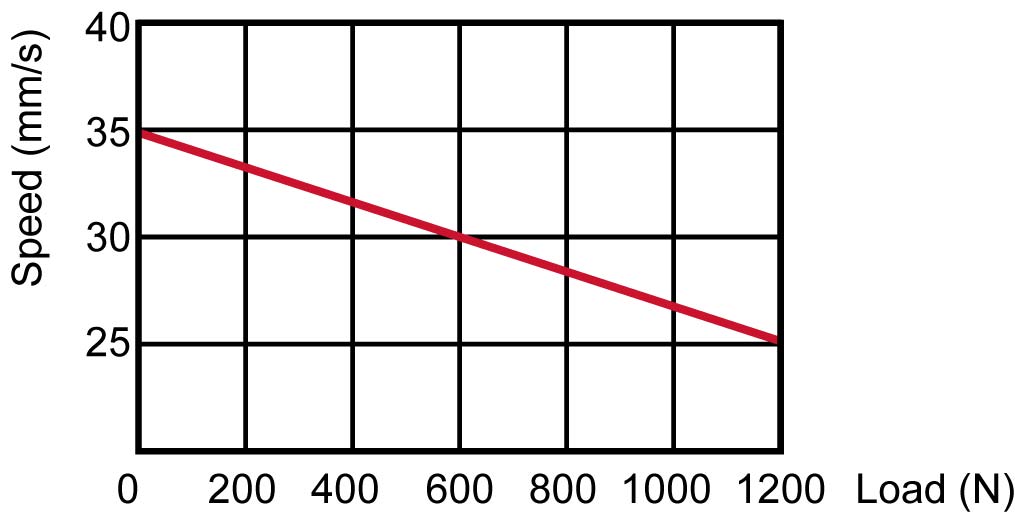

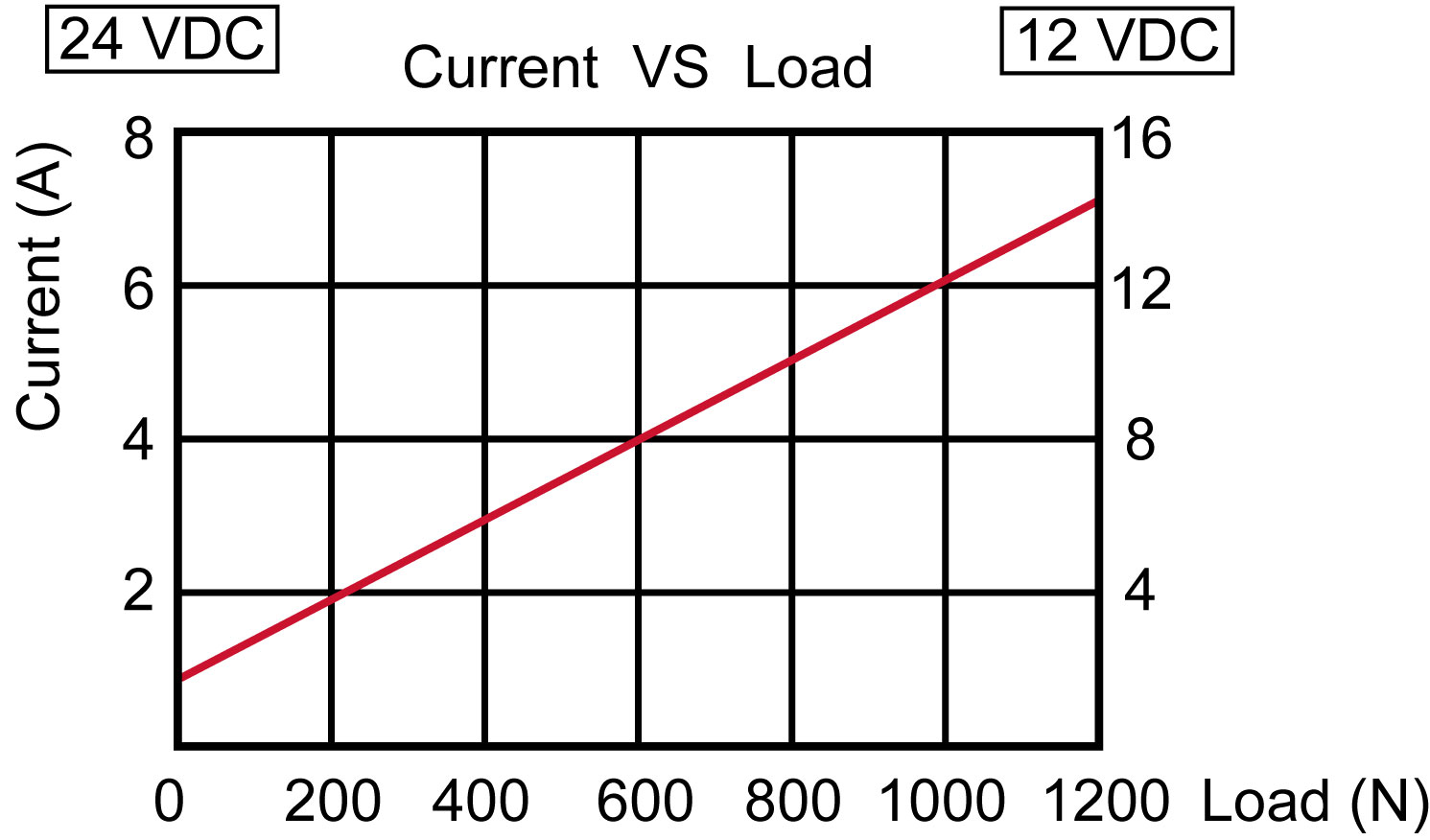

Speed vs Load Current vs Load
01US13A 01US13A
