Furniture Actuator
01OS63

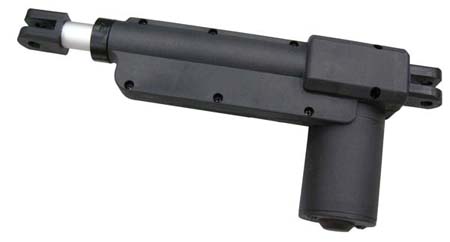

 Actuator 01OS63

Specification:
Model 01OS63
Input 12/24V DC
Max. Load 6000N(Push) / 4000N (Pull)
Standard Speed 4.2 (no load) / 2.6 (full load) (mm/sec)
Stroke 50~130mm
Duty Cycle: 10%


Preset Limit Switches
IP43



Option:
  • Motor Voltage: 12V DC
  • Quick Speed: Up to 30mm/sec (full load), 44mm/sec (no load)
  • Hall Effect Sensor
  • Push Only
  • Optional or Customized Front/Rear Mounting Bracket
  • Spiral Cable


Model No. Designations
01OS63- 24-

Voltage
12: 12 V DC
24: 24 V DC
A4

Speed V.S Load
A4
A8
330.460

A . B
A: Retracted Length
B: Extended Length

Stroke = B - A
C61

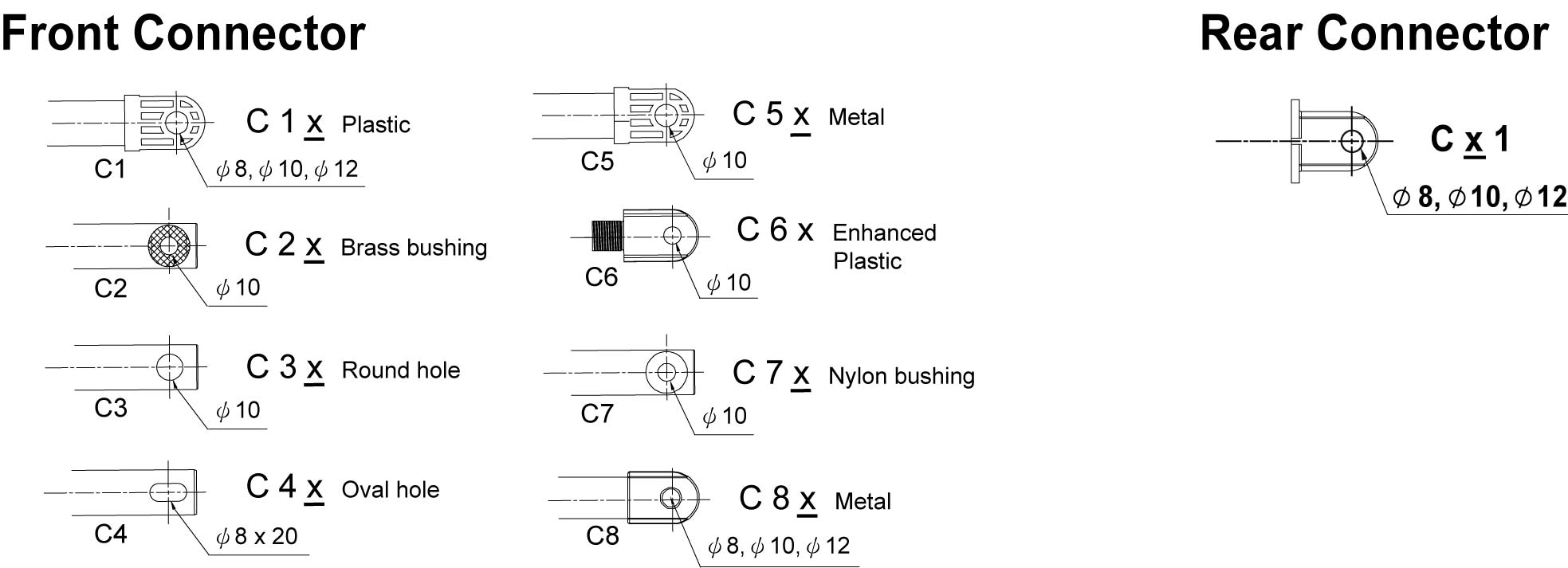

6: Front connector
1: Rear connector
HS.PO

Option
HS: Hall Sensor x 1
HS2:Hall Sensor x 2
PO: Push Only

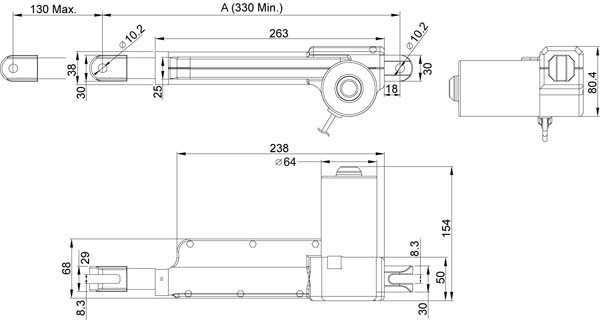

 Actuator 01OS63 draw



 Actuator 01OS63 draw

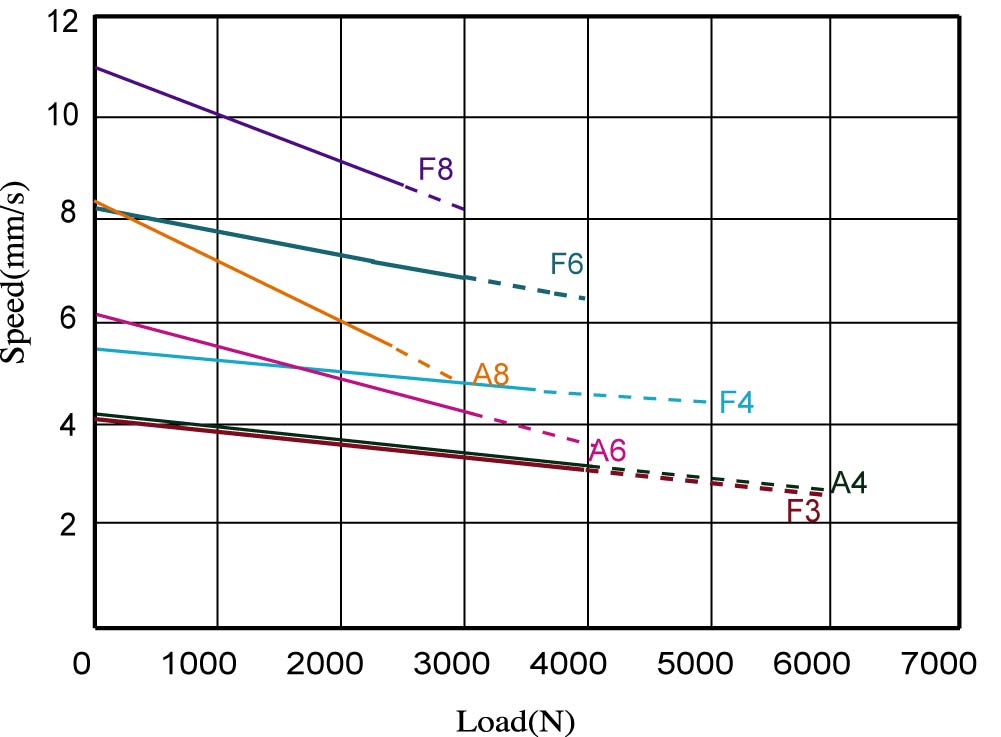

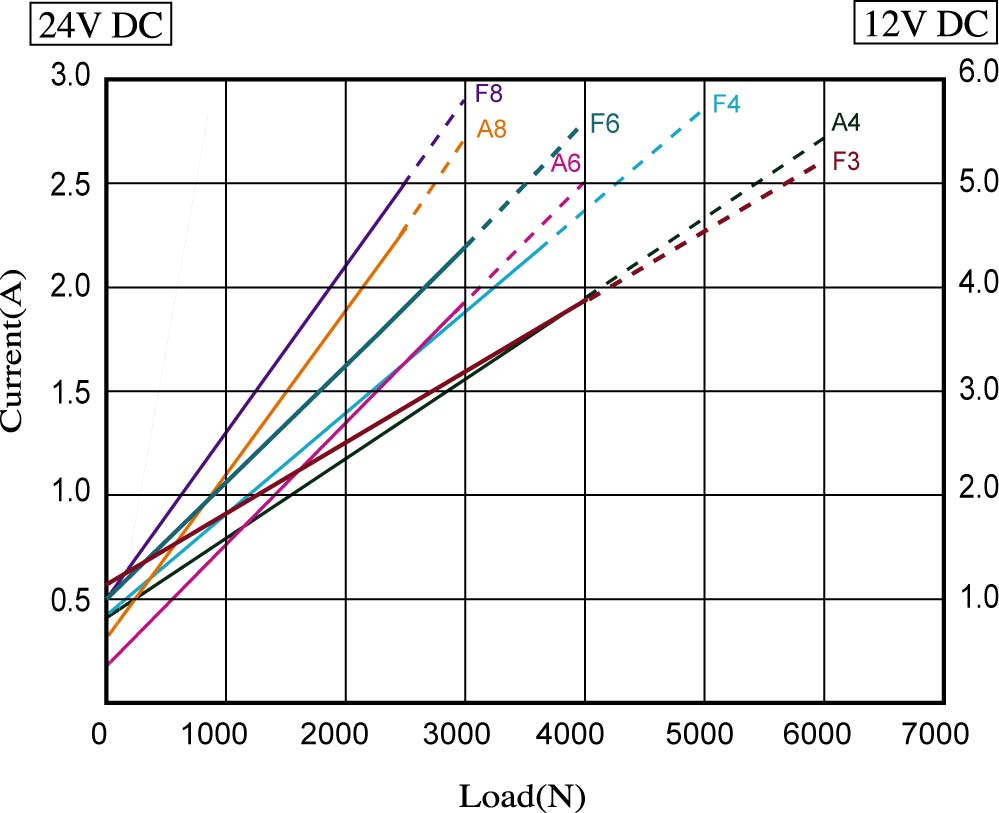

Speed vs Load Current vs Load
 Actuator 01OS63  Actuator 01OS63
