Industrial Actuator 01KS2Q




01KS2Q

Specification:
Model 01KS2Q
Input 12 / 24VDC
Max. Load 500N
Max. Speed 6 mm/sec
Stroke Length 50, 100, 150, 200, 250, 300 mm (доступеH Stroke по запросу)
Gear Ratio 30:1
Mounting Clevis to Clevis Mounting
Duty Cycle 25%
Environment -25 ° C ~ 65 ° C


FEATURE:
Quiet Version
Max. Load: 500N
Motor Voltage: 12/24V DC
Max. Speed: 6mm/sec
Stroke: 50~300mm (Customized Stroke Available)
Universal Rod End
Duty Cycle: 25%
IP43


Option:
  • Hall Effect Sensor
  • Optional or Customized Front Mounting Bracket
  • Clamp
  • IP54


Model No. Designations
01KS2Q- 12-
Voltage
24-24 VDC
12-12 VDC
30-
Gear Ratio
30:1
200-
Stroke (mm)
50 mm
100 mm
150 mm
200 mm
250 mm
300 mm
HS.IP54
HS: Hall Effect Sensor
IP54

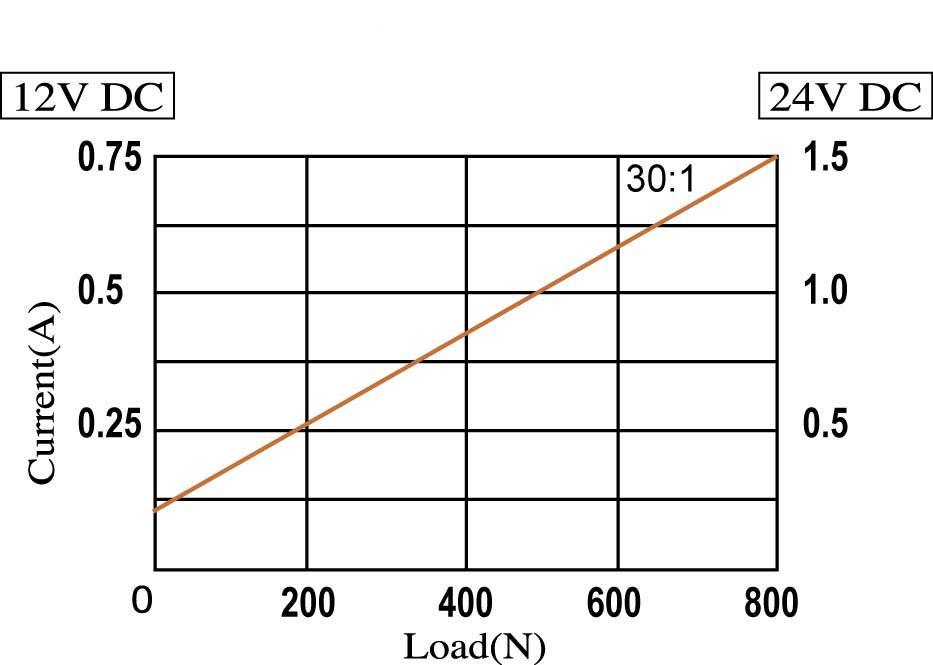

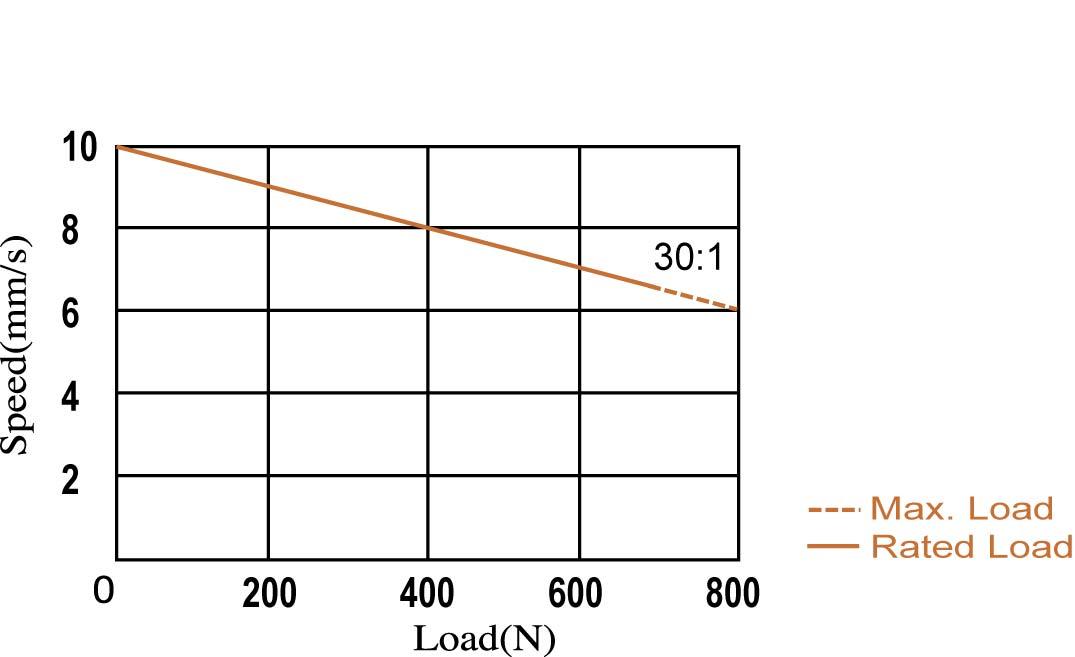

Speed vs Load Current vs Load

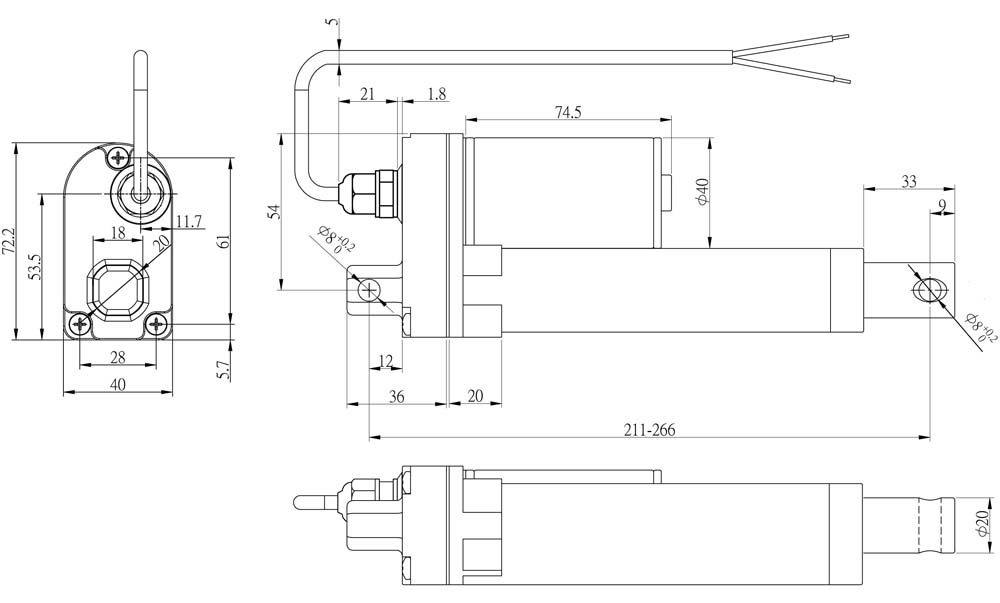

Actuator 01KS2Q Potentiometer

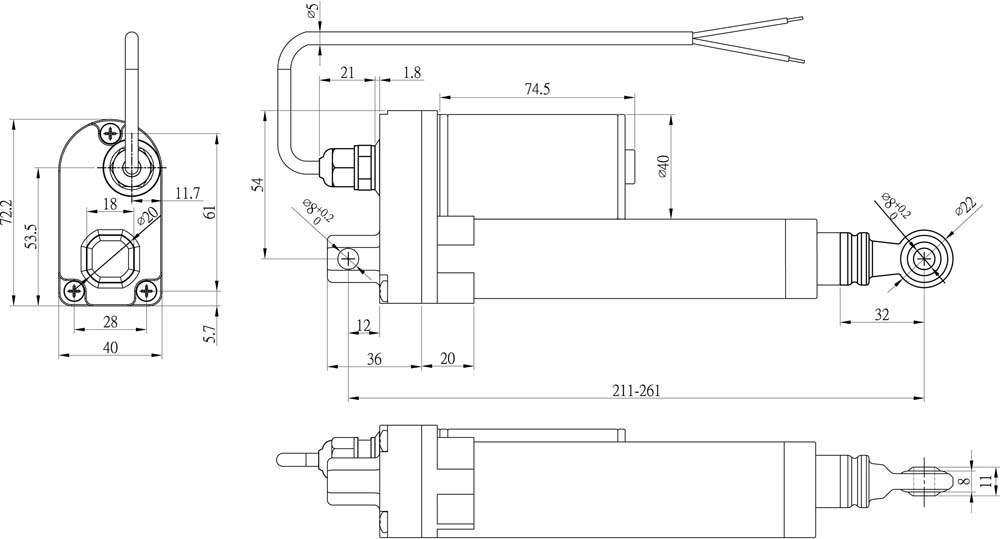

Actuator 01KS2Q Potentiometer
