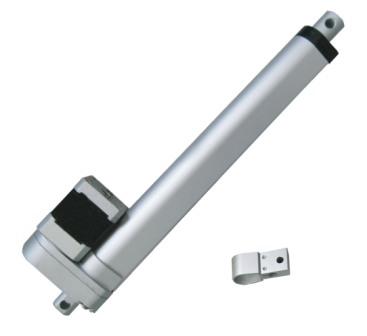

Compact Actuator with Stepping Motor
01KA3




01KA3

Specification:
Model 01KA3
Input 12 / 24VDC
Max. Load 1000
Max. Speed 0.2~0.4 mm/sec
Stroke Length 50, 100, 150, 200, 250, 300 mm
Duty Cycle 25%
Environment -25 ° C ~ 65 ° C


FEATURE:
Max. Load: 1,000N
Max. Speed Range: 0.2~0.4 mm/sec
Standard Stroke: 50/100/150/200/250/300mm
Compact and Powerful
Aluminum Extension & Outer Tubes
Duty cycle: 25%

MOTOR SPEC:
Step Angle: 1.8 degree
Rated Voltage: 3.5V
Current: 1.3A
Resistance: 2.7 ohms
Inductance: 5.1 mH
Holding Torque: 50N. cm
Rotor Inertia: 82g. cm 2


Option:
  • Optional or Customized Front Mounting Bracket
  • Clamp


Model No. Designations
01KA3- S
Stepping Motor
20-
Gear Ratio
30-30:1
200-
Stroke (mm)
50 mm
100 mm
150 mm
200 mm
250 mm
300 mm
C21.C31
C21
C31
(C21,C31 Front Connector)


Standart:
Stroke (mm) 50 100 150 200 250 300
Retracted Lenght (mm) 158 209 260 311 362 413
Extended Lenght (mm) 208 309 410 511 612 713

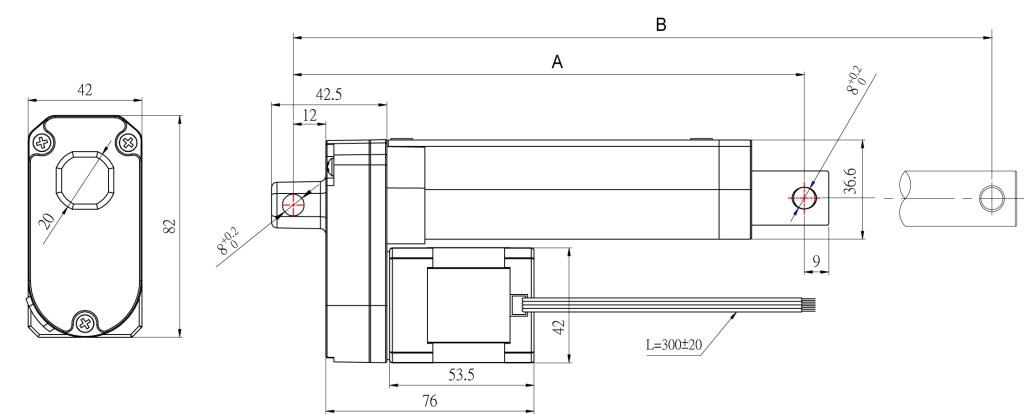

Actuator 01KA3 draw

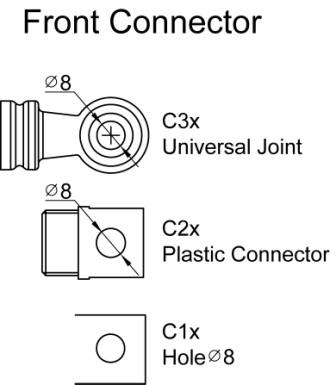

Actuator 01KA3 draw 2
