TVRO Satellite-Actuator
Tel. +49 (0)

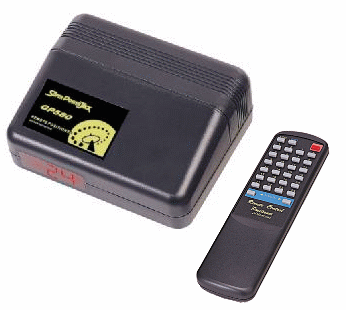

Satellite positioner
|
| Model | 01FO580 |
| Input | 220~240V AC / 50 Hz (110V AC / 60Hz Available) |
| Power Consumption(Max.) | 70W |
| Compatible Motors | 24V~36V DC |
| Max.Current | 2.2A |
| Dimension(mm) | 167L x 132W x 65H |
| Position Memories | 24 |
| Remote Control | IR |
| LED Display | 2 Digits |
| Short Circuit Protection | YES |
| Overload Protection | Electronic |
24 Programmable Memories
IR Remote Control
2 Digit LED Display
Drive dish up to 3M
