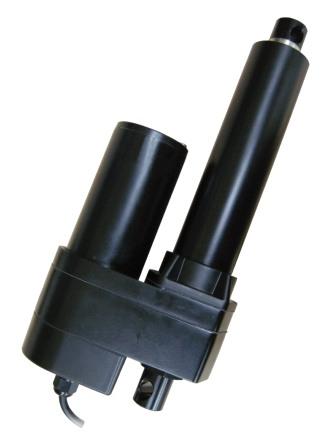

Industrial Actuator
01US11 ACME




01US11 ACME

Specification:
Model 01US11 ACME
Input 12 / 24VDC
Max. Load 3500N
Max. Speed 34 mm/sec
Stroke Length 102, 153, 203, 305, 457, 610 mm
Gear Ratio 10:1, 20:1, 40:1
Duty Cycle 25%
Environment -25 ° C ~ 65 ° C
Static Load Capacity 4500N


FEATURE:
Max Load: 3500N
Motor Voltage: 12/24V DC
Max. Speed Range: 8~34 mm/sec
Standard Stroke: 102/153/203/305/457/610mm
Stainless steel extension tube
Powder metallurgy gears
Overload Clutch Protection
Limit Switches Adjustable after Installation
Working temperature: -25° C to +65° C
Duty cycle: 10%
Gear ratio: 10:1, 20:1, 40:1
Protection: IP54


Option:
  • Optional or Customized Front/Rear Mounting Bracket
  • Protection: IP65
  • Side Cable


Model No. Designations
01US11- 24-
Voltage
24-24 VDC
12-12 VDC
20-
Gear Ratio
10-10:1
20-20:1
40-40:1
B-
B:С
ACME
A:С
Ball Screw
102-
Stroke (mm)
IP65.SC.C1.C2...
IP65
SC: Side Cable

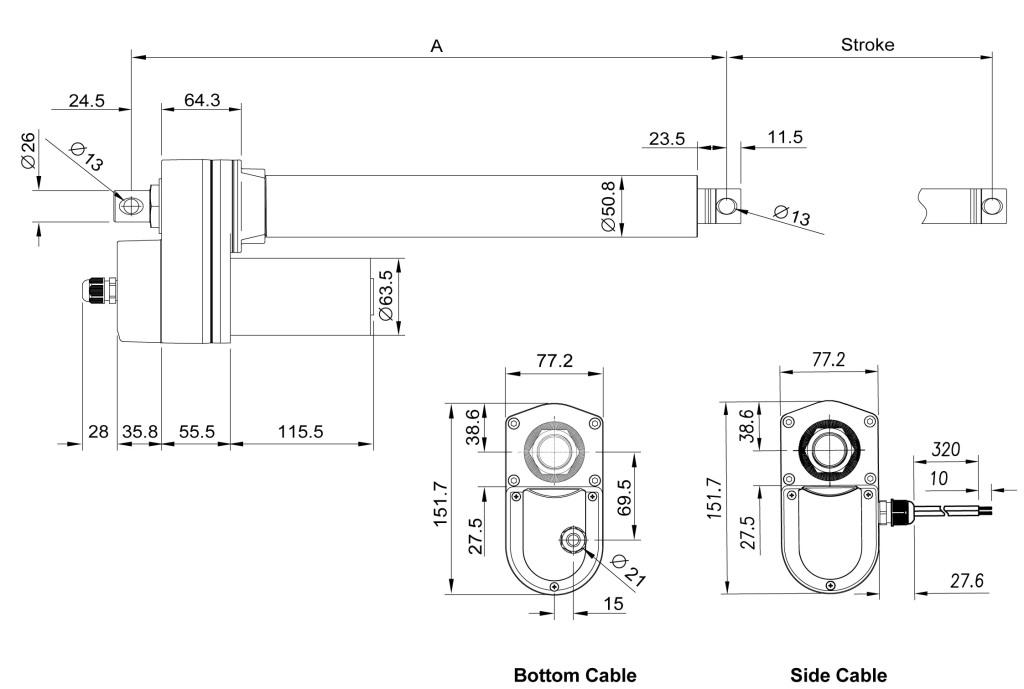

Stroke (+-2,5mm) 102 153 203 305 457 610
Retracted Lenght (+-3,8mm) 319 370 420 573 725 878

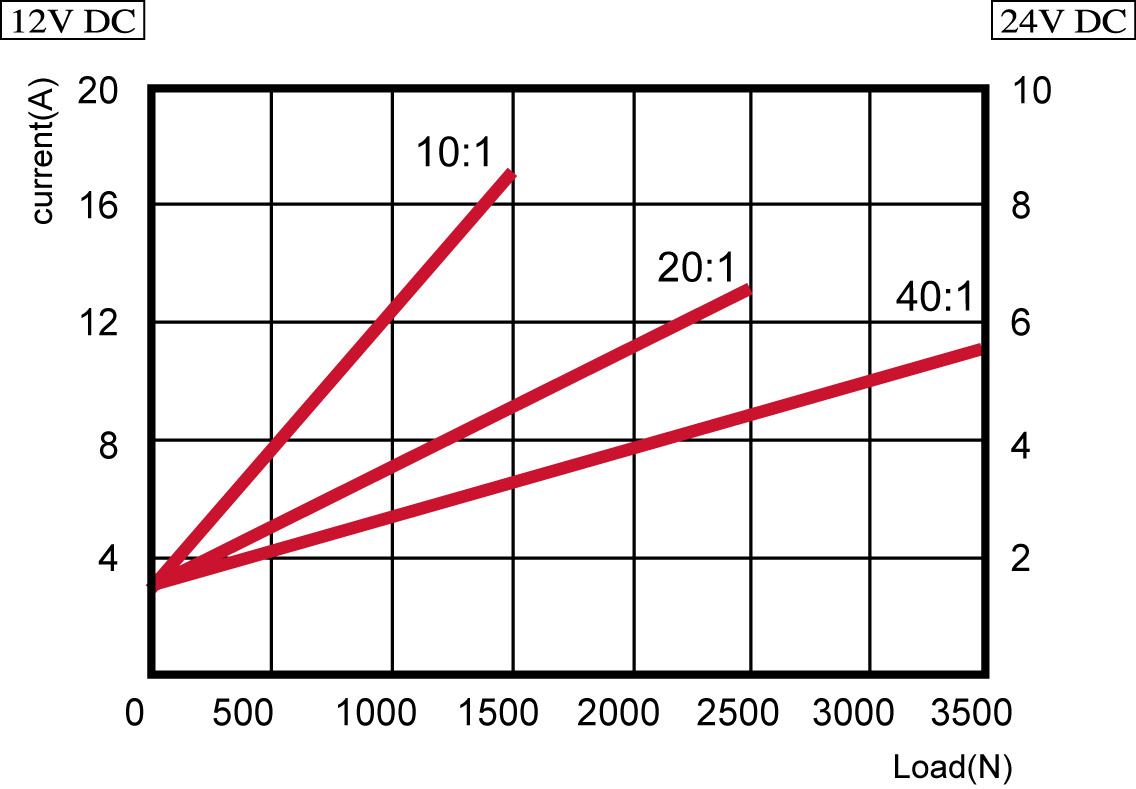

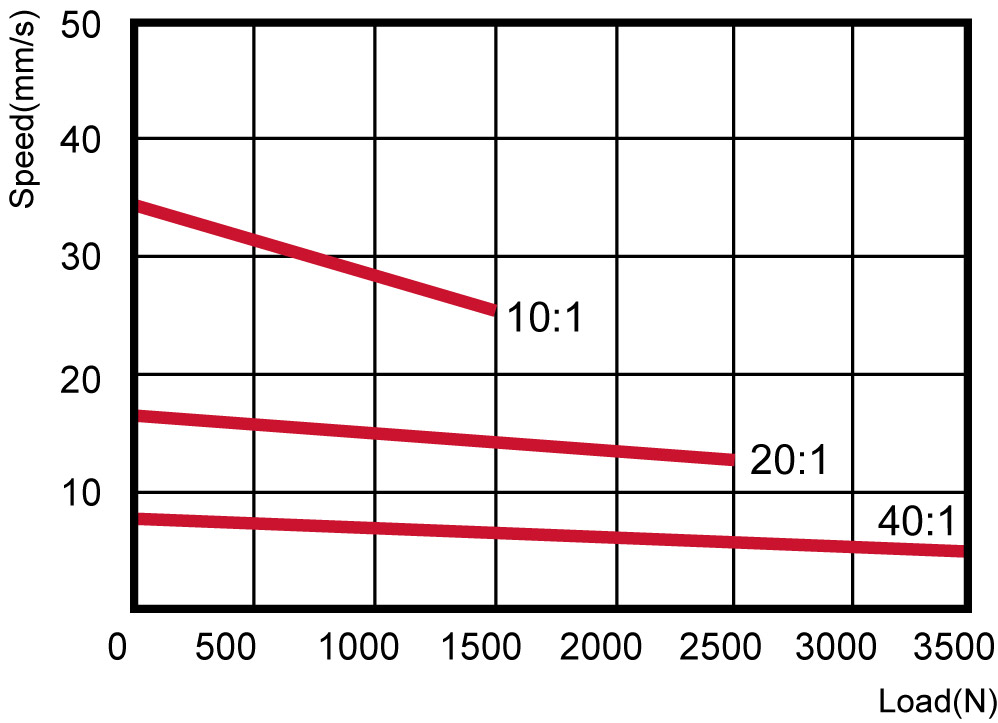

Speed vs Load Current vs Load
