Actuator 01KP8

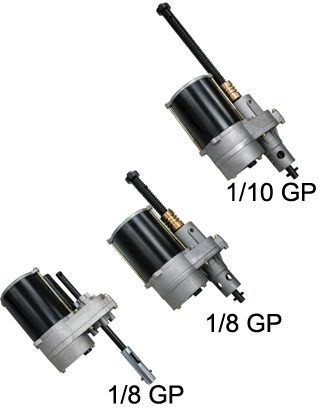

Actuator 01KP8

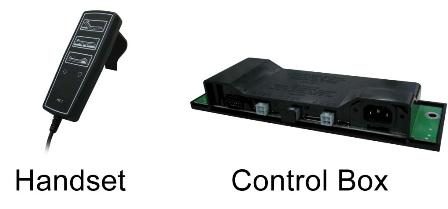

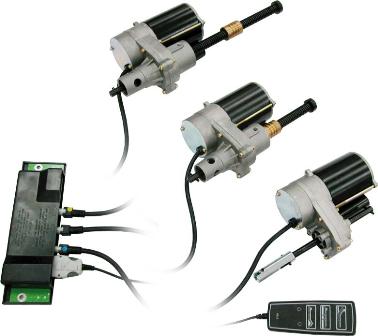

Actuator 01KP8 Control Box & Handset

Actuator 01KP8 Extension Tube and Outer Tube

Max. Load: 3500N / 7.9kg.cm
Motor Voltage: 115 / 230V AC Motor
Max. Speed Range: 7~7.5mm/sec / 88RPM
Motor with Thermal Protection (+120±5 ° C)
ACME screw
Self-Locking
Metal Gear Box
Duty Cycle: 17%
Manual Drive


Option:
  • Limit Switches
  • Extension Tube and Outer Tube
  • Control Box & Handset


Specification:
Model 01KP8
Input 115/230 V AC Motor
Max. Load 4500N / 7.9kg.cm
Max. Speed 7.0 ~ 7.5 mm/sec / 88RPM
Duty Cycle 17%


Model No. Designations
01KP8- 115-
Voltage
115 V DC
230 V DC
8-
8: 1/8 HP
10: 1/10 HP
C1-
C1: Tube Mounting
C2: Screw Mounting
100
Stroke
100~600mm


Speed vs LoadCurrent vs Load

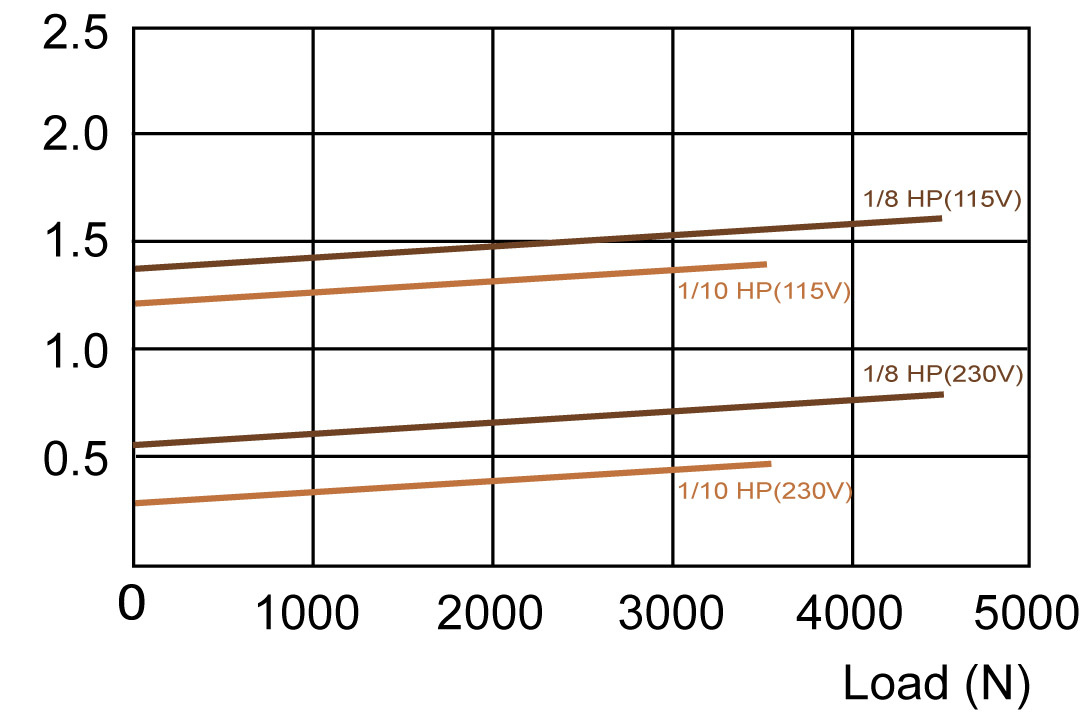

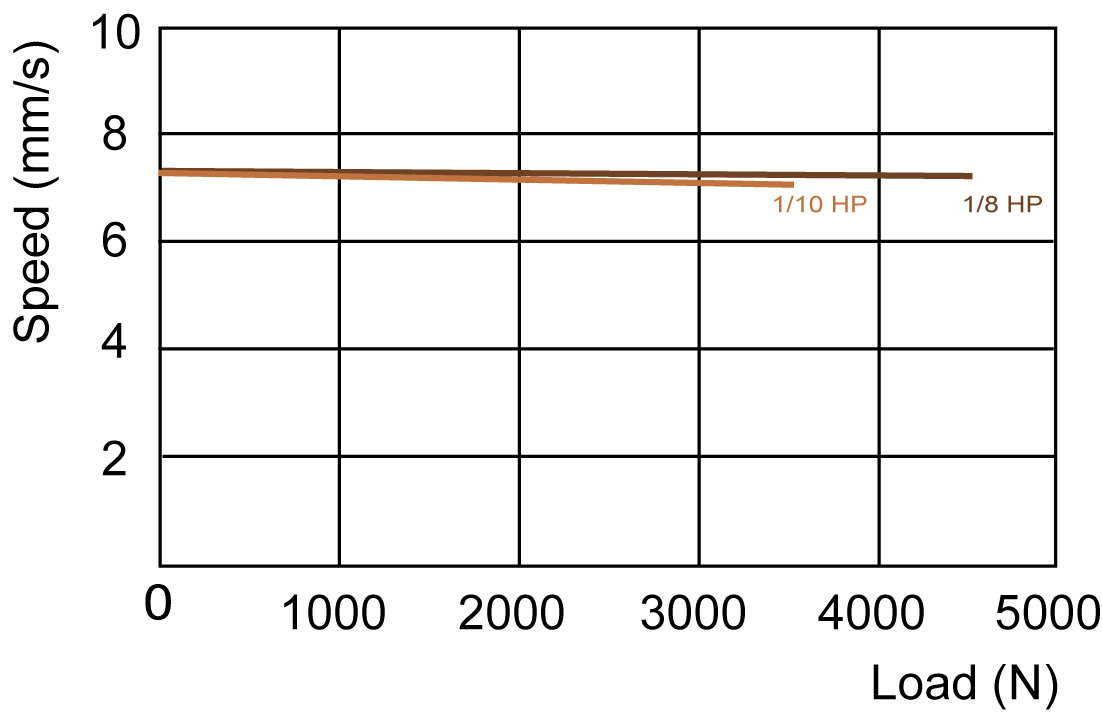

Actuator 01KP8 Speed vs Load Actuator 01KP8 Current vs Load

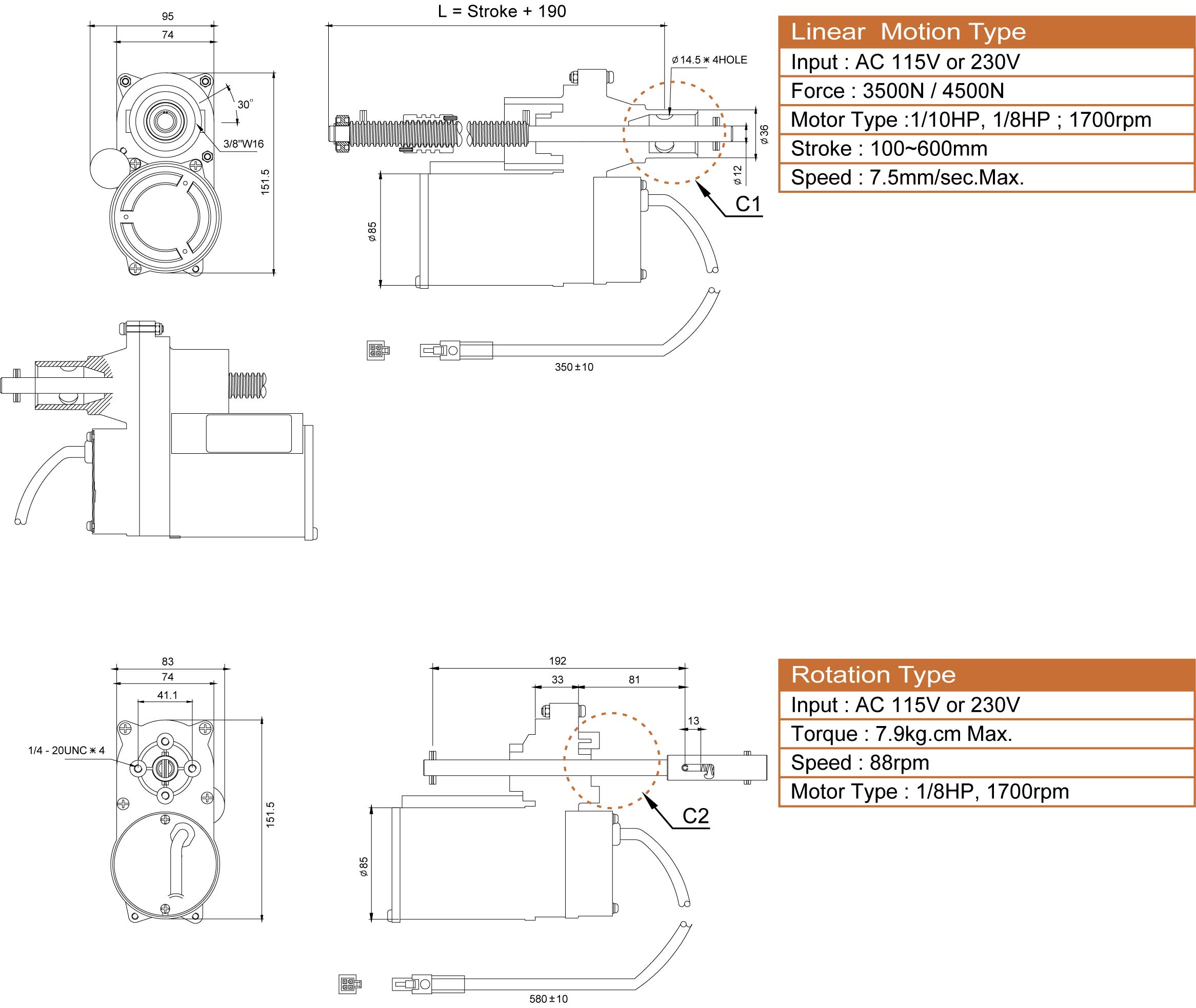

Actuator 01KP8  Draw
