Medical Actuator
01NS100




Actuator 01NS100 Actuator 01NS100

Specification:
Model 01NS100
Input 24V DC
Max. Load 10,000N (Push) / 6,000N (Pull)
Max. Speed 11 mm/sec
Stroke Length 50, 100, 150, 200, 250, 300, 350, 400 mm (other stroke available)
Duty Cycle 10% or 2 min continuous operation in 20 min
Environment 0 ° C ~ 65 ° C


Preset Limit Switches
Low Noise
Stainless Extension Tube
Aluminum Outer Tube
IP54



Option:
  • Push Only
  • Safety Nut
  • Quick Release
  • Hall Effect Sensor
  • IP65/IP66


Model No. Designations
01NS100- 24-

Voltage
24: 24 V DC
A3-

Type
A3
F3
350.450

A . B
A: Retracted Length
B: Extended Length

Stroke = B - A
C11

1: Front connector
1: Rear connector
HS.PO.QR.SN...

Option
HS: Hall Sensor x 1
HS2: Hall Sensor x 2
PO: Push Only
QR: Quick Release
SN: Safety Nut

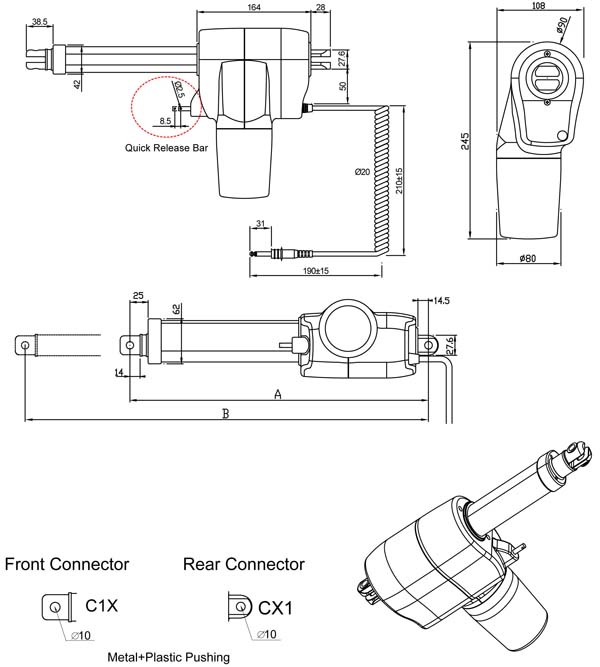

Actuator 01NS100 draw

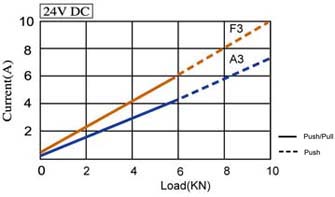

Speed vs Load Current vs Load
Actuator 01NS100 Actuator 01NS100
