DiSEqC 1.2 Motor
01G180 / 01G360




 DiSEqC 1.2 Motor 01G180 / 01G360

Specification:
Model 01G180 01G360
Antenna Diameter 1.8m
Dish Weight 27kg MAX
Diameter of Mounting pole 55~72mm
Azimuth Angle 80° EAST~ 80° WEST (160° ) Adjustable 135° EAST ~ 135°WEST (270° ) Adjustable
Elevation Angle 0° ~ 90°
Declination Angle 0° ~ 8°
Input Voltage 36 VDC
Power Consumption 350mA (Normal)
750mA (Max.)
Rotation Speed 1.8° / sec w/1.8M Dish
Command Protocol DiSEqC 1.2
Resynchronize Function YES
Goto Position 0 Function 0 YES
Goto X Function X Optional

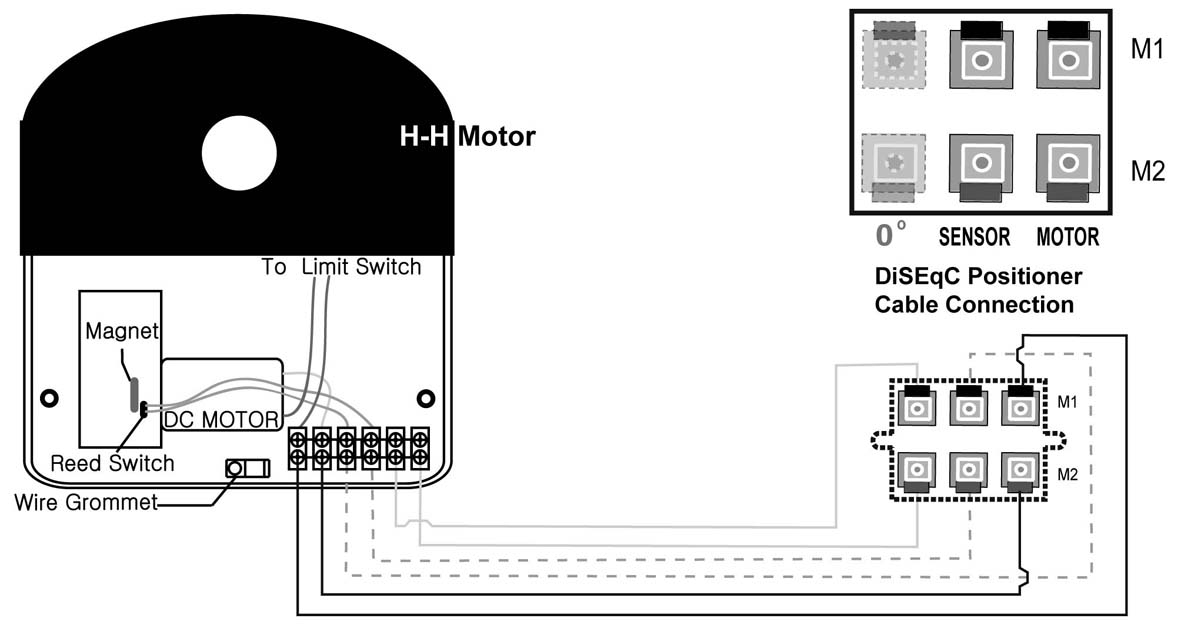

 DiSEqC 1.2 Motor 01G180 / 01G360  draw
