Specification:

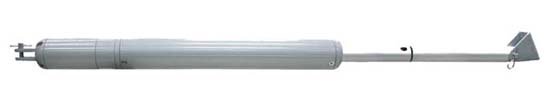

Model 01AQ230

Input 12VDC

Average Operating Current 1.0-2.0A

Gate Length 2.1M (7Feet) x 2 Max.

Gate Weight 180Kgs (400Lbs)x 2 Max

Duty Cycle 20%

Overload Protection Current Detection

Stroke Length 304mm

Release Function By Tool

Approx. Weight 5Kgs

Approx. Dimension 680L x 450W x 235H mm

Control Box 01AQ-200S

Input	110/230V AC; 60/50HZ
RF Remote	433.92MHz w/Rolling Codes
Weight	2,6 kg
Dimensions	299L x 200W x 120H mm
Recharging Functions	Built In (12V DC Battery not included)

RF Remote Control with Rolling Codes
Recharging Function for Backup Battery

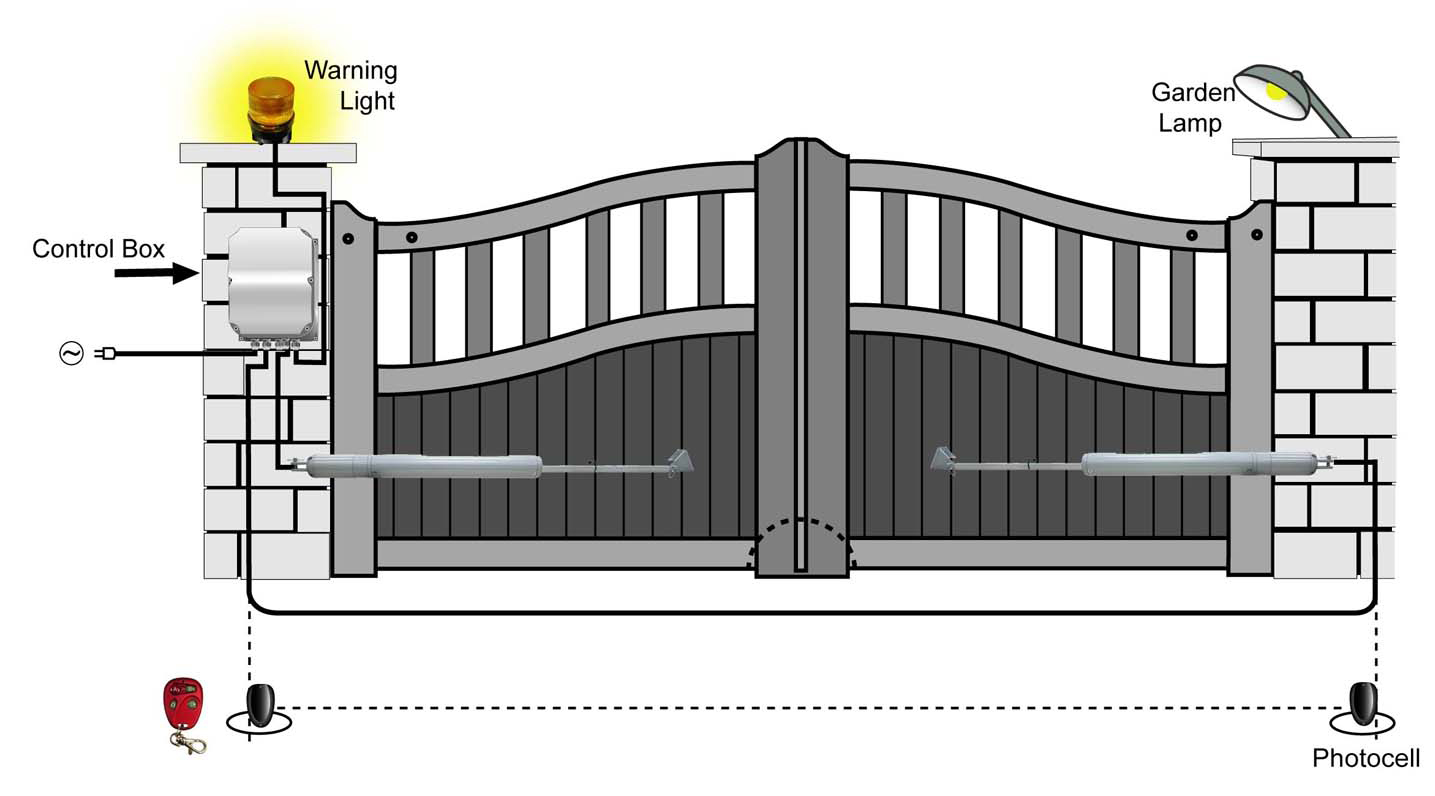

Applicable for both Single and Dual Gates
Garden Lamp Function
IP44
