Furniture Actuator
01OS23

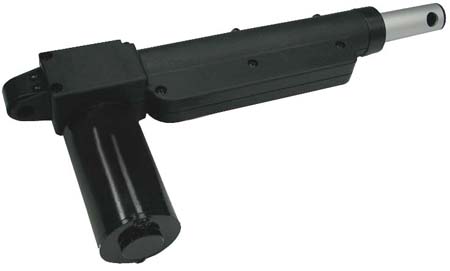

Actuator 01OS23

Specification:
Model 01OS23
Input 12/24/100/110V DC
Max. Load 1000N(Push) / 800N (Pull)
Standard Speed 16.7 (no load) / 10.5 (full load) (mm/sec)
Stroke 50~87 mm
Duty Cycle: 10%


Preset Limit Switches
IP43



Option:
  • Motor Voltage: 12/24V DC
  • Quick Speed: Up to 15.3mm/sec (full load), 26mm/sec (no load)
  • Hall Effect Sensor
  • Push Only
  • Optional or Customized Front Mounting Bracket
  • Spiral Cable


Model No. Designations
01OS23- 100-

Voltage
100:100V DC
110:110V DC
12:12V DC
24:24V DC
A4

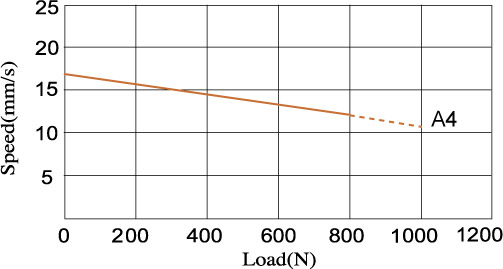

Speed V.S Load
A4
310.400

A . B
A: Retracted Length
B: Extended Length

Stroke = B - A
C61

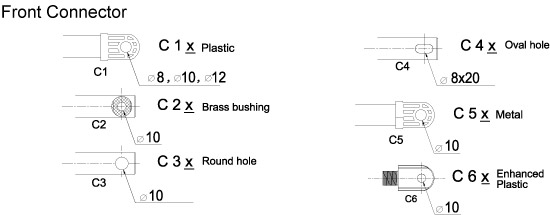

6: Front connector
2: Rear connector
HS.PO

Option
HS: Hall Sensor x 1
HS2: Hall Sensor x 2
PO: Push Only

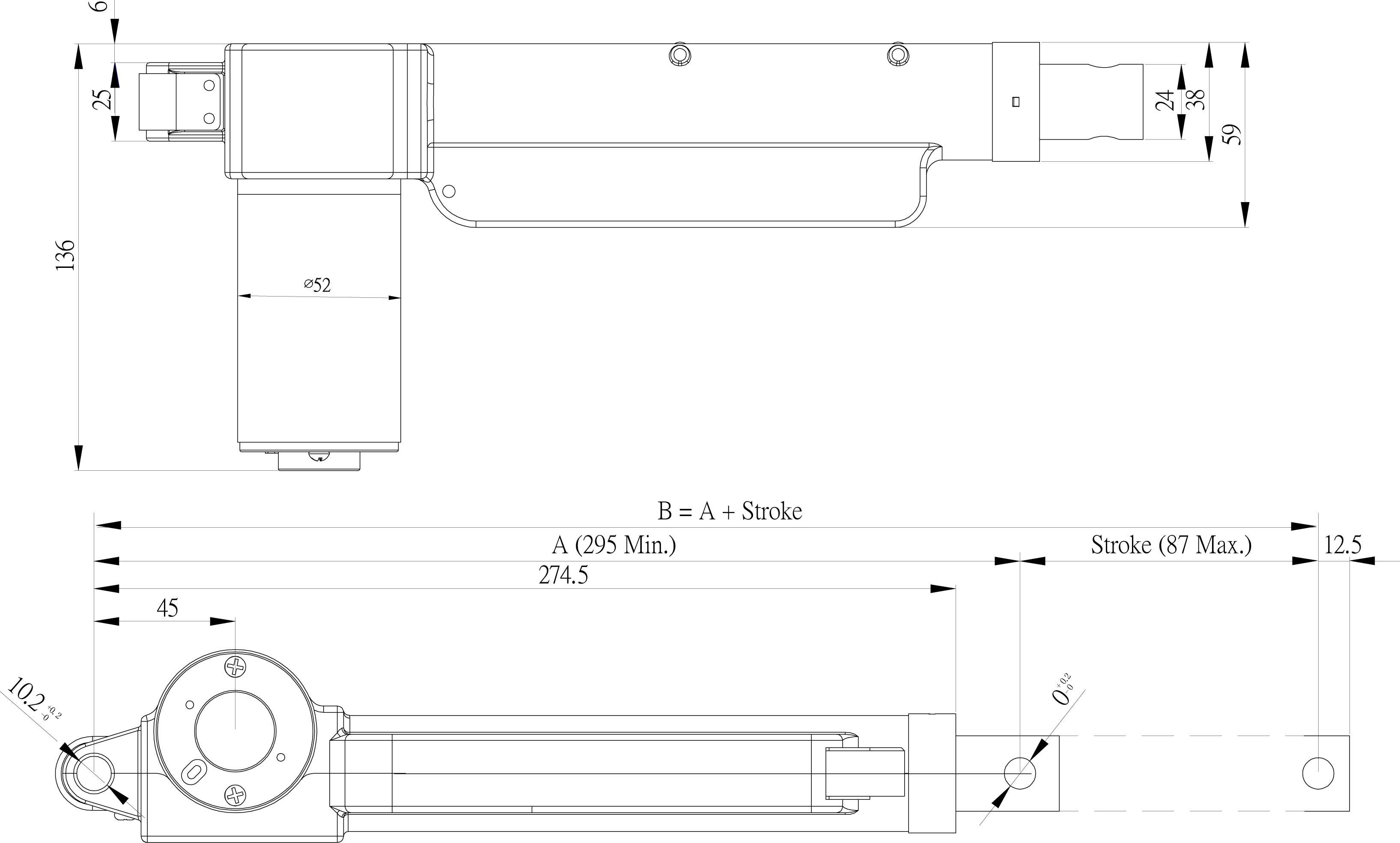

Actuator 01OS23 draw

Actuator 01OS23 draw

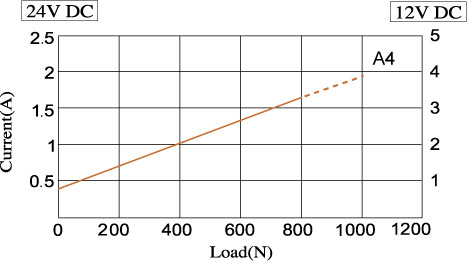

Speed vs Load Current vs Load
Actuator 01OS23 Actuator 01OS23
Actuator 01OS23
